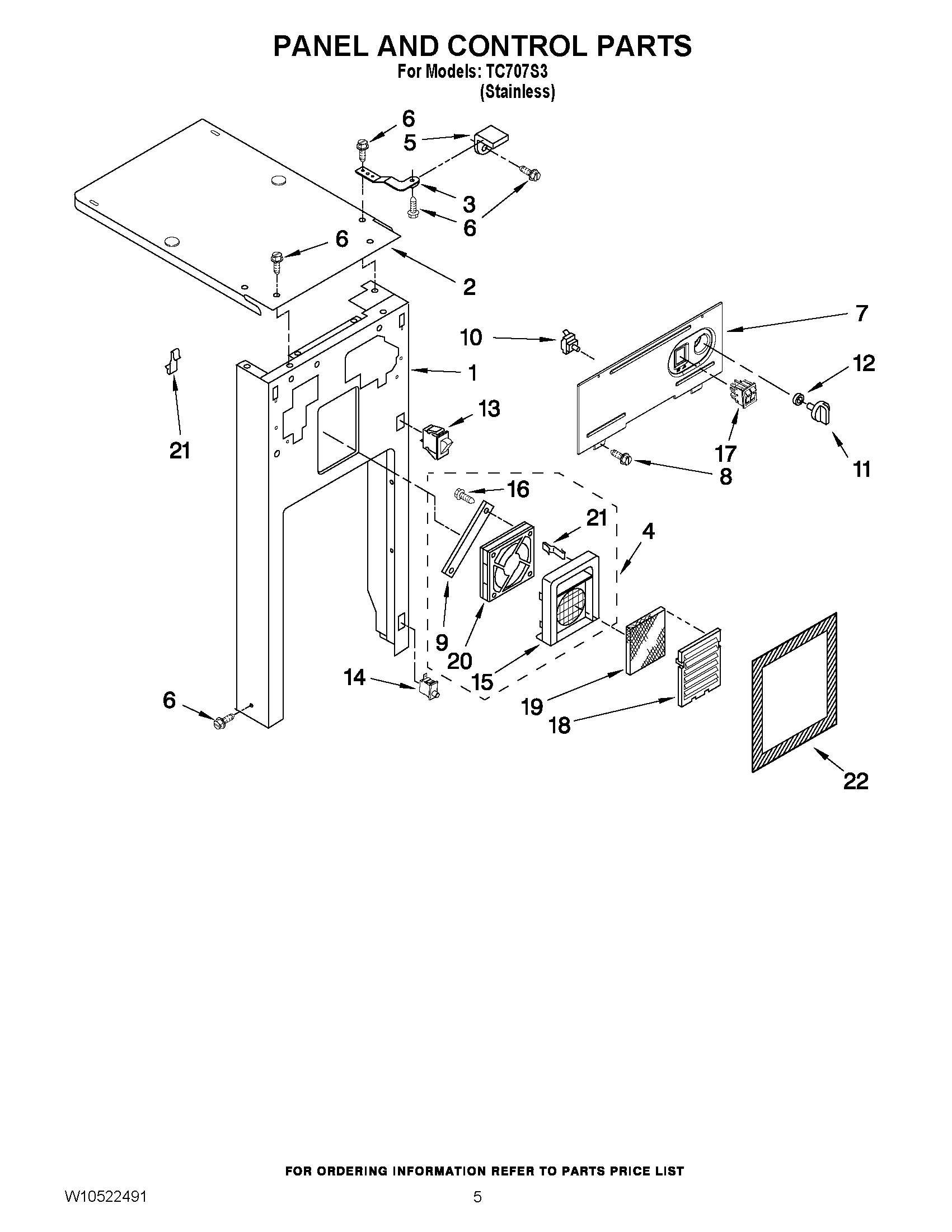

TC707S3 05 – PANEL AND CONTROL PARTS

TC707S3 05 – PANEL AND CONTROL PARTS

Written by

in

TC707S3 05 – PANEL AND CONTROL PARTS

Products

Position	Product
1	MAY W10242567
2	MAY 608572
3	MAY 9871993
4	MAY 9871893
5	Bracket, Mounting (Alternate)
6	SCREW, 8 X 1/2
7	MAY W10242574
8	Screw, 6-20 x 3/8
9	MAY 4152703
10	MAY 9871971
11	Knob, Rotary Switch
12	Nut, Switch
13	Switch, Drawer Tilt (Black)
14	MAY W10242556
15	MAY 4151442
16	Screw, 10-24 x 3/8
17	MAY 9871973
18	MAY 9871099
19	MAY 4151750
20	MAY 9871051
21	S-Clip
22	MAY 9872166GA
