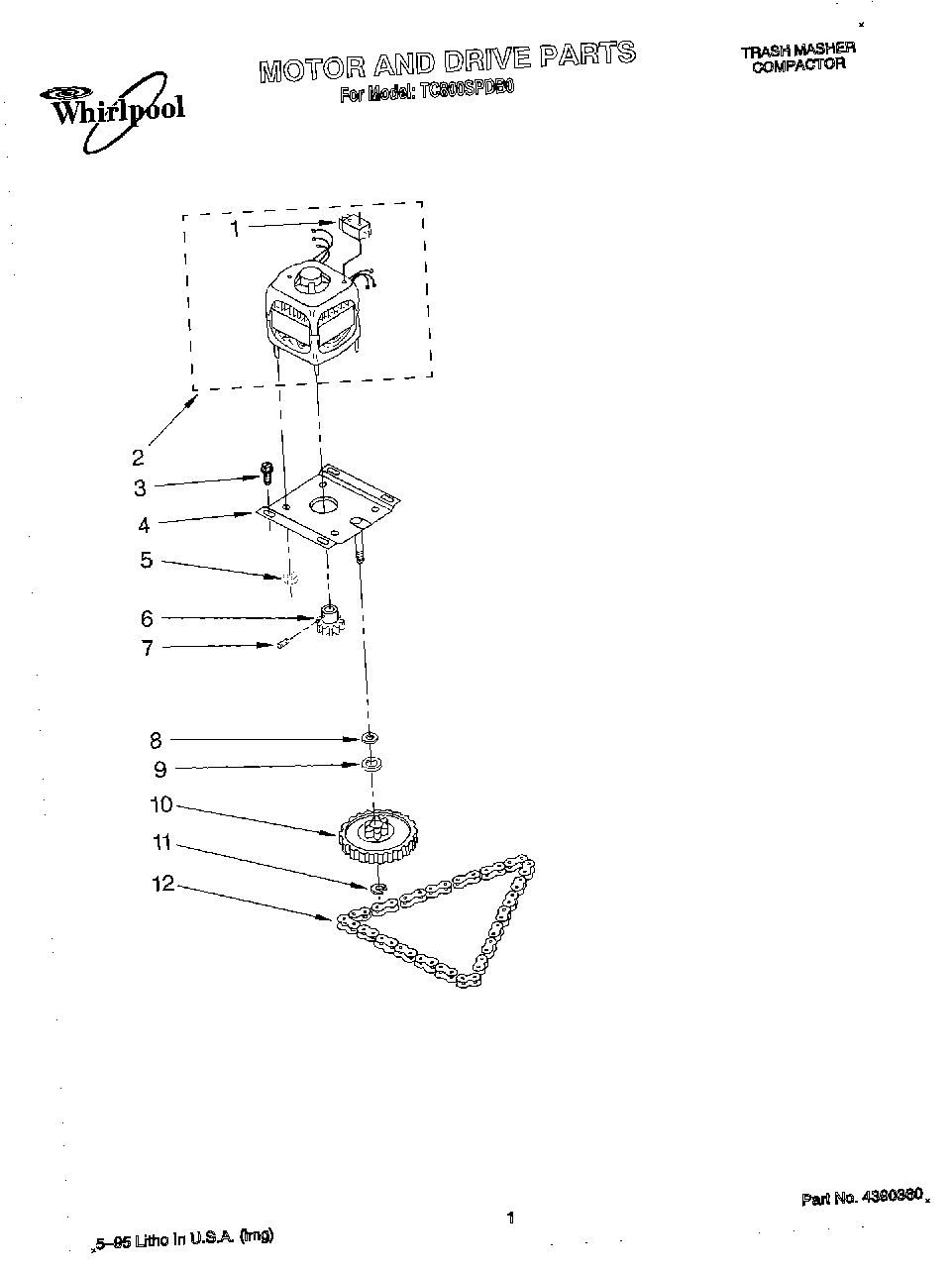

TC800SPDB0 01 – MOTOR AND DRIVE, LITERATURE

Products

Position	Product
	Guide, Use and Care
	Label, 1-800 Number
	Wiring Diagram
	Instructions, Installation
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
1	W10439651 Whirlpool Air Conditioner Motor Drive
3	WP8204624 Whirlpool Bolt
4	776327 Whirlpool Compactor Motor Plate
5	WP776338 Whirlpool Compactor Nut
6	GEAR KIT COMPACTOR
7	WP454512 Whirlpool Compactor Spring Pin
8	776035 Whirlpool Compactor Washer
9	W11214485 Whirlpool Compactor Washer
11	WP776036 Whirlpool Compactor Clip
12	9870118A Whirlpool Compactor Bracket Kit
12	CHAIN-DRVE
12	Harness, Wiring
