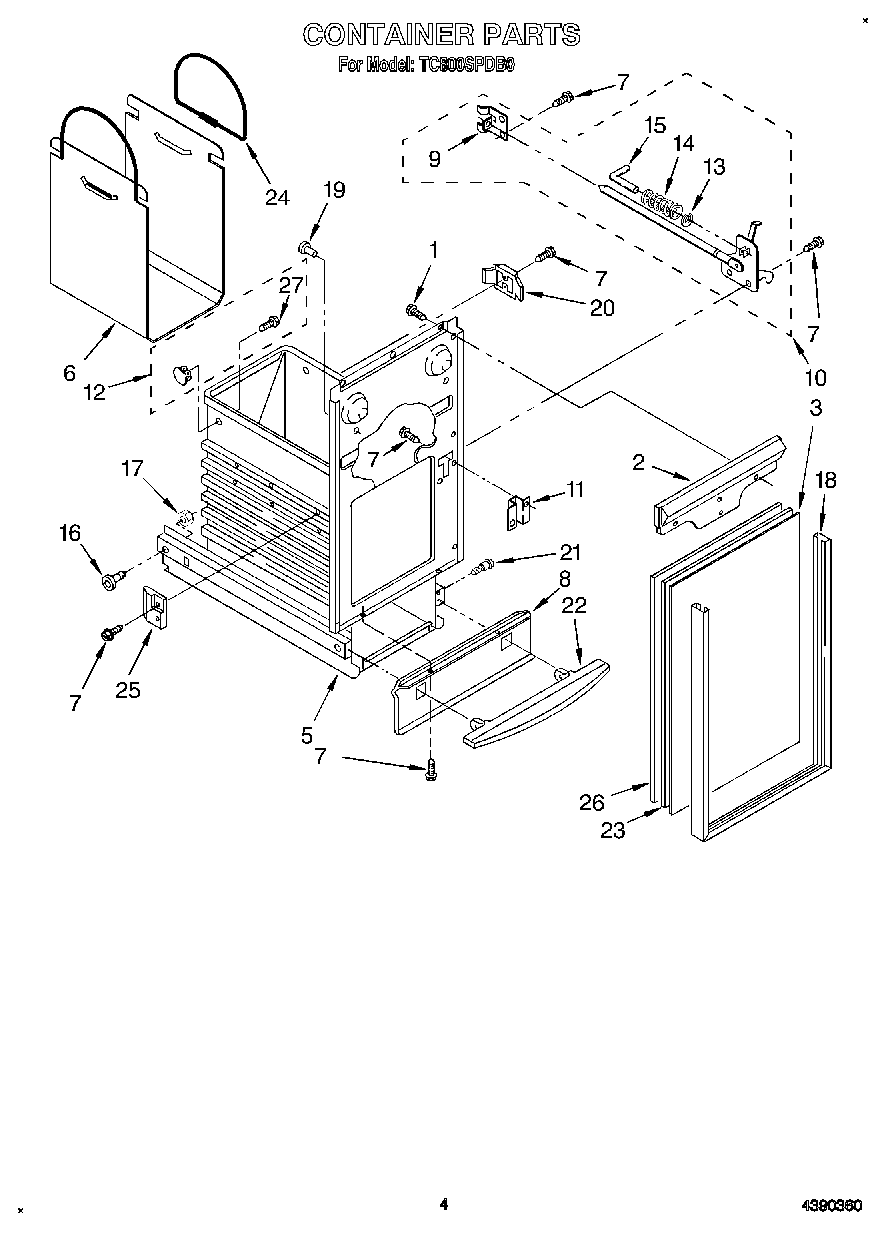

TC800SPDB0 04 – CONTAINER

Products

Position	Product
2	WP608732 Whirlpool Compactor Handle
3	Panel, Container Front (Almond & Black)
5	Container Assembly
6	13030RP Whirlpool Compactor Bag Caddy
7	WP489069 Whirlpool Compactor Screw
8	WP777328 Whirlpool Compactor Guard
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	775665 Whirlpool Compactor Plate Latch
12	RETAINER, BAG
13	Ring, “E“
14	775736 Whirlpool Compactor Spring
15	Pin
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	Trim, Container (Front)
19	Bumper, Container (2)
20	9871125 Whirlpool Compactor Actuator
21	WP780263 Whirlpool Compactor Screw
22	W11679165 Whirlpool Foot Pedal
23	Spacer, Center Panel
24	WP777108 Whirlpool Compactor Bag Handle
25	Guide, Container (2)
26	Spacer, Back Panel
27	Screw
