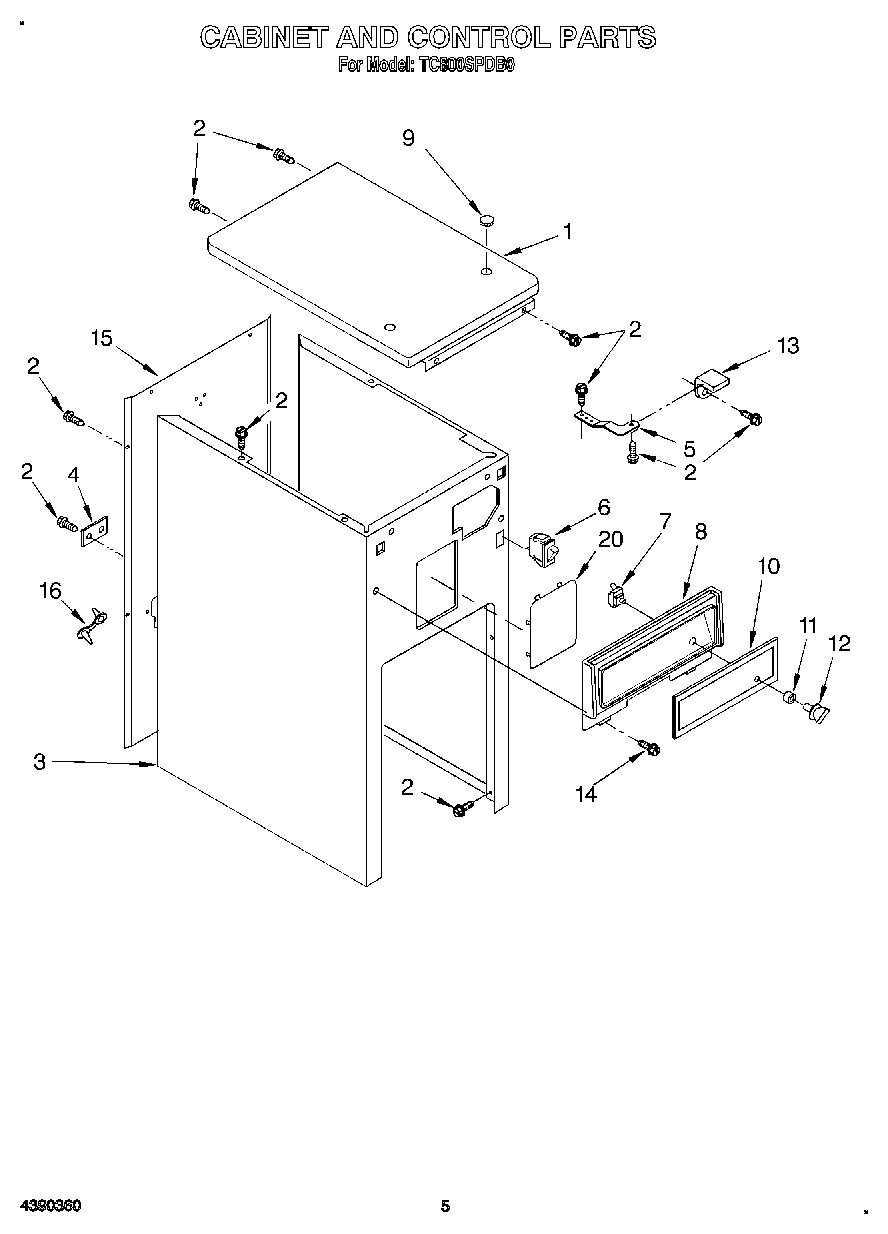

TC800SPDB0 05 – CABINET AND CONTROL

Products

PositionProduct
1Top, Cabinet
2WP489069 Whirlpool Compactor Screw
3Cabinet
4Plate, Power Cord
5W11729437 Whirlpool Retaining Bracket
6WP4387911 Whirlpool Refrigerator Switch
7675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
8Escutcheon, Control
9Plug, Hole
10Insert, Escutcheon
11WP777383 Whirlpool Compactor Nut
12Knob, Rotary Switch
13WP780239 Whirlpool Compactor Bracket Retainer
14Screw, 6-20 x 3/8 (2)
15Panel, Back
16Clamp, Wire
209871160 Whirlpool Switch Plate
