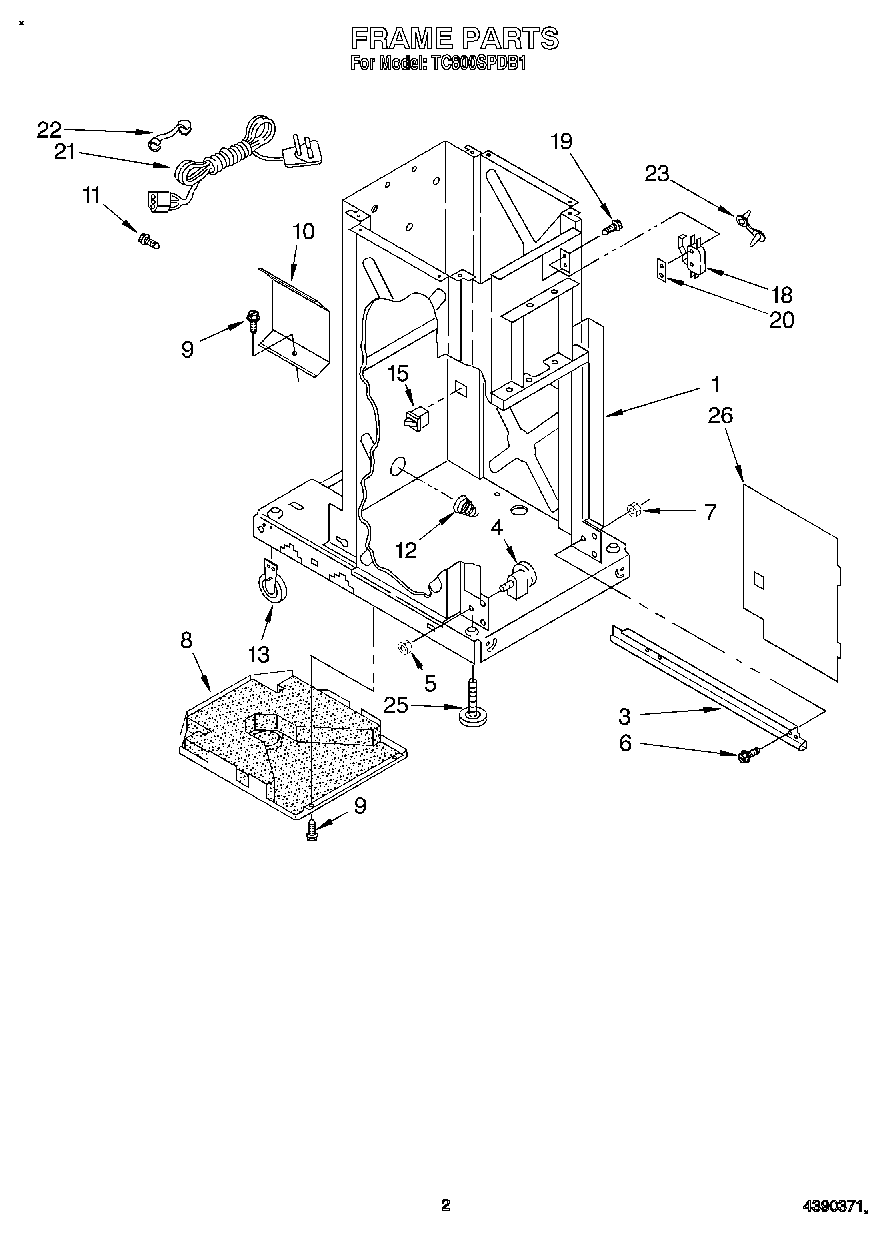

TC800SPDB1 02 – FRAME

TC800SPDB1 02 – FRAME

Written by

in

TC800SPDB1 02 – FRAME

Products

PositionProduct
1Frame (Not a Serviceable Part)
3WP9870975 Whirlpool Compactor Slide
3SLIDE
4882688 Whirlpool Compactor Bearing
5WP776356 Whirlpool Compactor Nut
6WP486754 Whirlpool Compactor Screw
7Nut, 6-32 (4)
8WP780437 Whirlpool Compactor Bottom Pan
9WP3351614 Whirlpool Screw
109870867 Whirlpool Shield
11WP488234 Whirlpool Air Conditioner Screw
12WP777180 Whirlpool Compactor Spring
13W11023674 Whirlpool Compactor Leveling Wheel
15WP4387911 Whirlpool Refrigerator Switch
18WP777811 Whirlpool Compactor Directional Switch
19777849 Whirlpool Compactor Screw
20Plate, Nut
21Cord, Service
22Bushing, Cord
23Clamp, Wire
25WPW10001130 Whirlpool Leveling Leg
26WP9870444 Whirlpool Compactor Inner Panel
