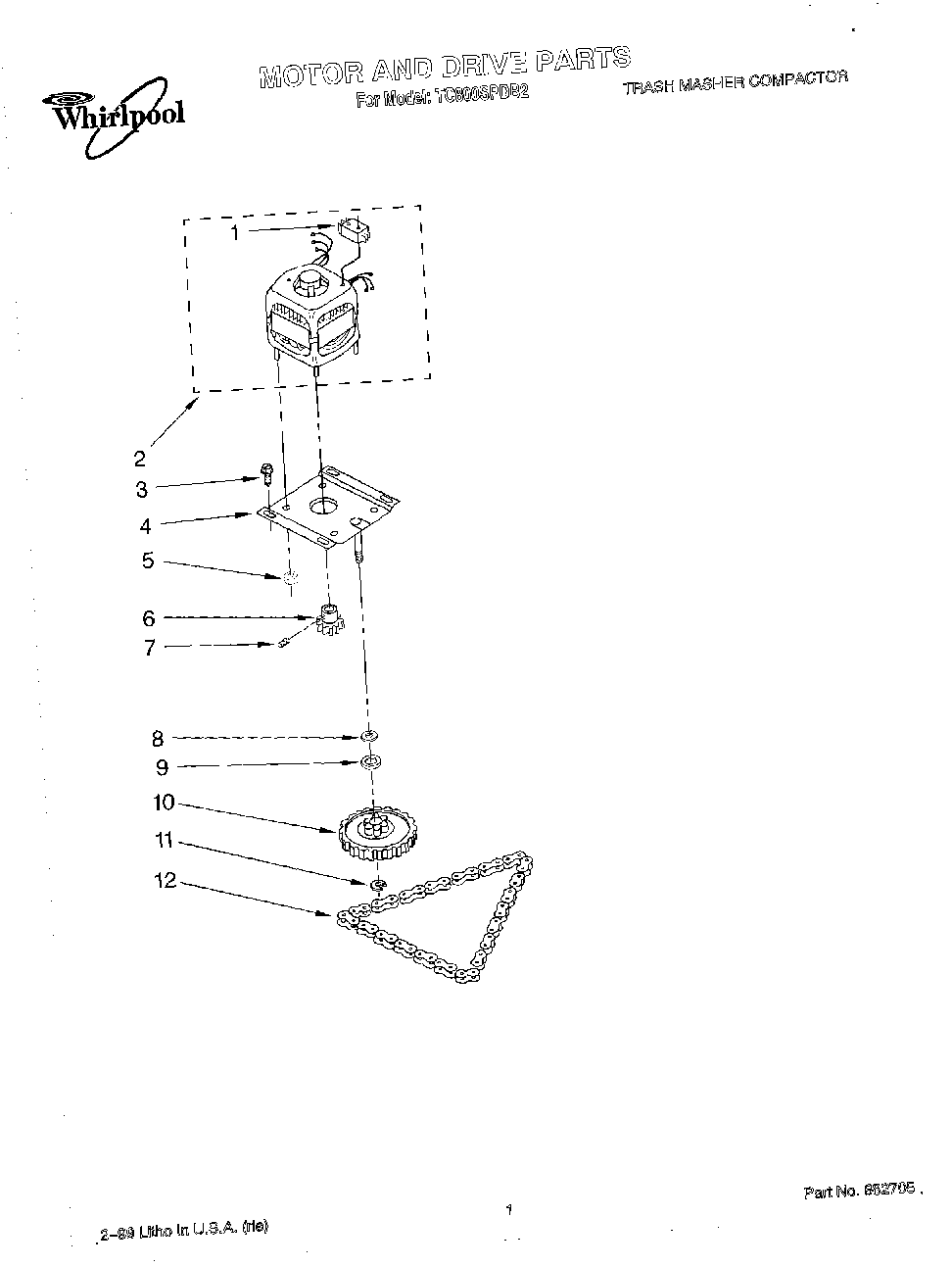

TC800SPDB2 01 – MOTOR AND DRIVE, LITERATURE

TC800SPDB2 01 – MOTOR AND DRIVE, LITERATURE

Written by

in

TC800SPDB2 01 – MOTOR AND DRIVE, LITERATURE

Products

PositionProduct
Guide, Use and Care
Instructions, Installation
Label, 1-800 Number
Wiring Diagram
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
1W10439651 Whirlpool Air Conditioner Motor Drive
3WP8204624 Whirlpool Bolt
4776327 Whirlpool Compactor Motor Plate
5WP776338 Whirlpool Compactor Nut
6GEAR KIT COMPACTOR
7WP454512 Whirlpool Compactor Spring Pin
8776035 Whirlpool Compactor Washer
9W11214485 Whirlpool Compactor Washer
11WP776036 Whirlpool Compactor Clip
12CHAIN-DRVE
129870118A Whirlpool Compactor Bracket Kit
