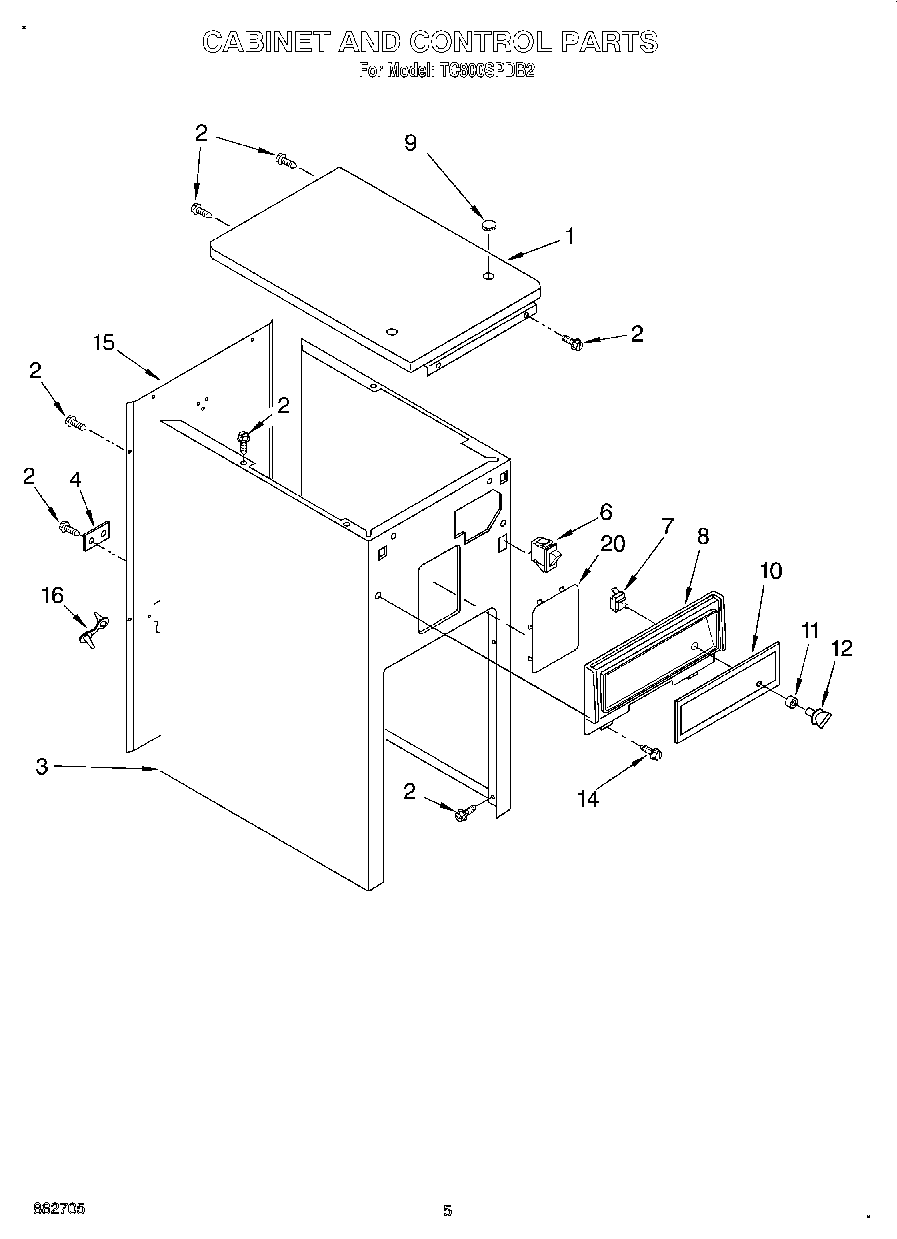

TC800SPDB2 05 – CABINET AND CONTROL

Products

PositionProduct
1Top, Cabinet
2WP489478 Whirlpool Refrigerator Screw
3Cabinet
4Plate, Power Cord
6WP4387911 Whirlpool Refrigerator Switch
7675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
8Escutcheon, Control
9Plug, Hole
10Insert, Escutcheon
11WP777383 Whirlpool Compactor Nut
12Knob, Rotary Switch
14Screw
15Panel, Back
16Clamp, Wire
209871160 Whirlpool Switch Plate
