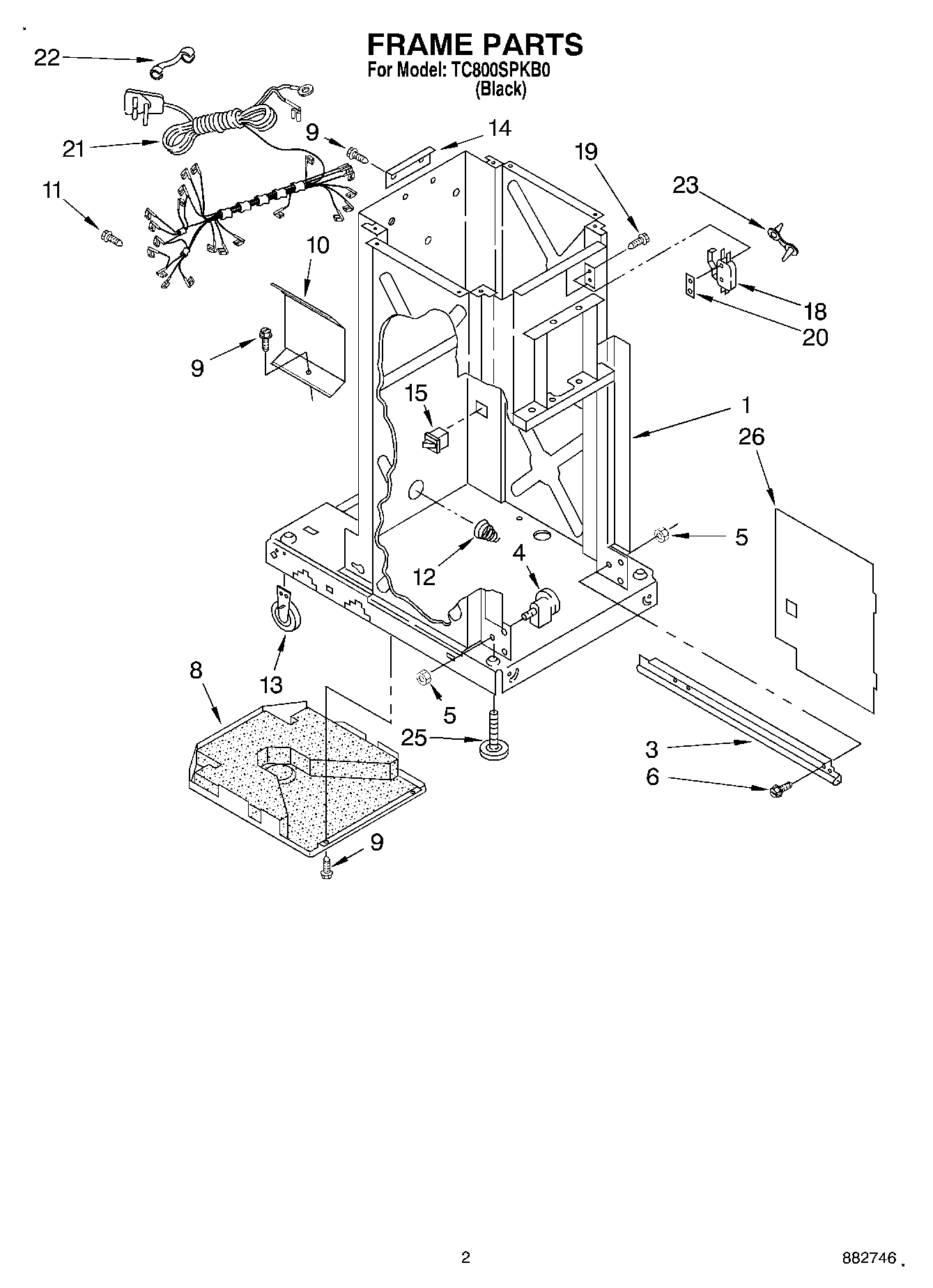

TC800SPKB0 02 – FRAME

Products

Position	Product
1	Frame (Not a Serviceable Part)
3	SLIDE
3	WP9870975 Whirlpool Compactor Slide
4	882688 Whirlpool Compactor Bearing
5	WP776356 Whirlpool Compactor Nut
6	WP486754 Whirlpool Compactor Screw
8	WP780437 Whirlpool Compactor Bottom Pan
9	WP489478 Whirlpool Refrigerator Screw
10	9870867 Whirlpool Shield
11	WP488234 Whirlpool Air Conditioner Screw
12	WP777180 Whirlpool Compactor Spring
13	W11023674 Whirlpool Compactor Leveling Wheel
14	Angle, Top Bracket
15	WP4387911 Whirlpool Refrigerator Switch
18	WP777811 Whirlpool Compactor Directional Switch
19	777849 Whirlpool Compactor Screw
20	Plate, Nut
21	Harness-Cord, Power
22	Bushing, Cord
23	Clamp, Wire
25	WPW10001130 Whirlpool Leveling Leg
26	WP9870444 Whirlpool Compactor Inner Panel
