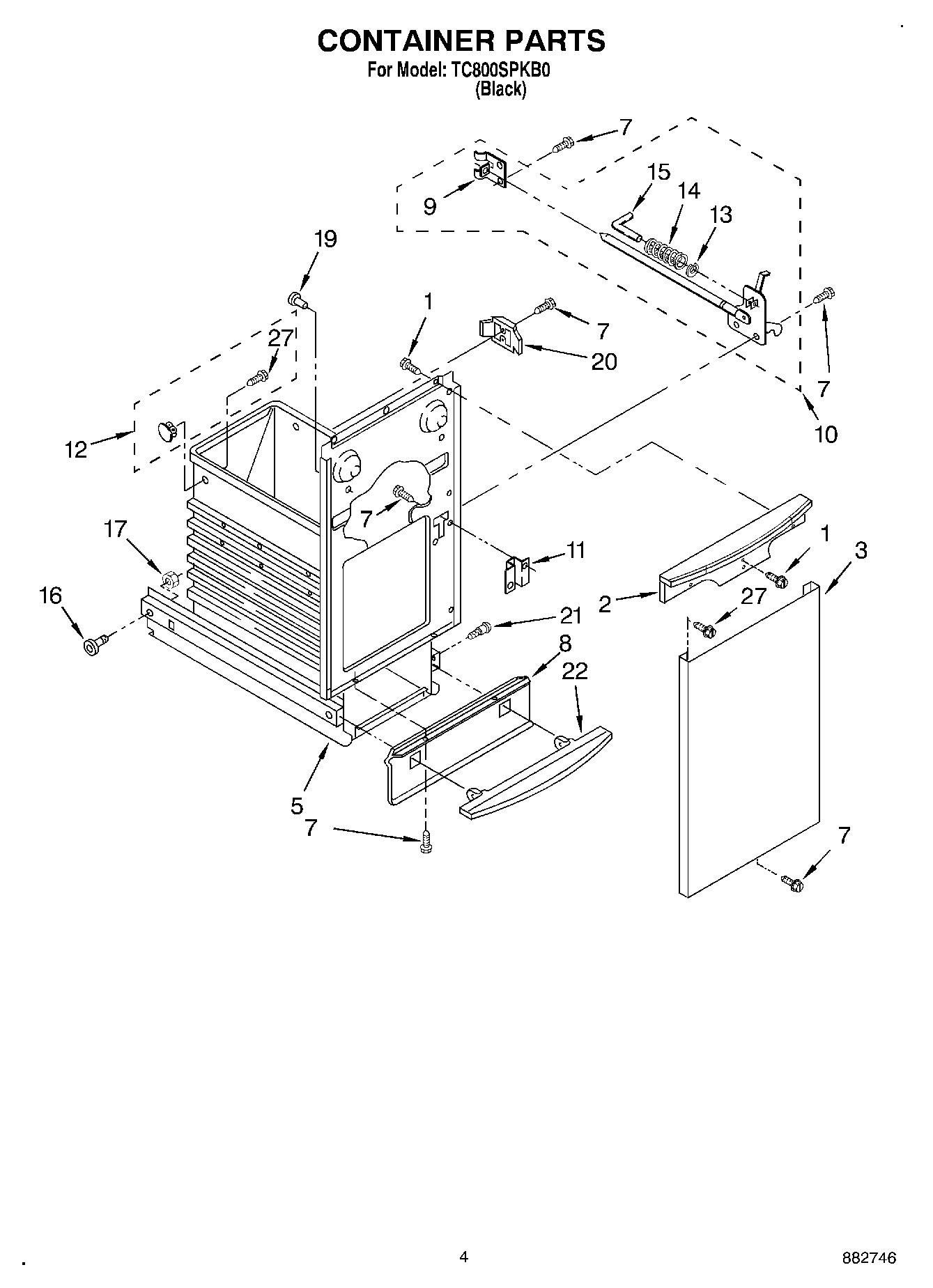

TC800SPKB0 04 – CONTAINER

Products

Position	Product
1	WP3400888 Whirlpool Compactor Screw
2	HANDLE
3	WP9871311 Whirlpool Compactor Panel
5	Container Assembly
7	WP489478 Whirlpool Refrigerator Screw
8	WP777328 Whirlpool Compactor Guard
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	775665 Whirlpool Compactor Plate Latch
12	RETAINER, BAG
13	Ring, “E“
14	775736 Whirlpool Compactor Spring
15	Pin
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
19	Bumper, Container (2)
20	9871125 Whirlpool Compactor Actuator
21	WP780263 Whirlpool Compactor Screw
22	W11679165 Whirlpool Foot Pedal
27	WP3196175 Whirlpool Screw
