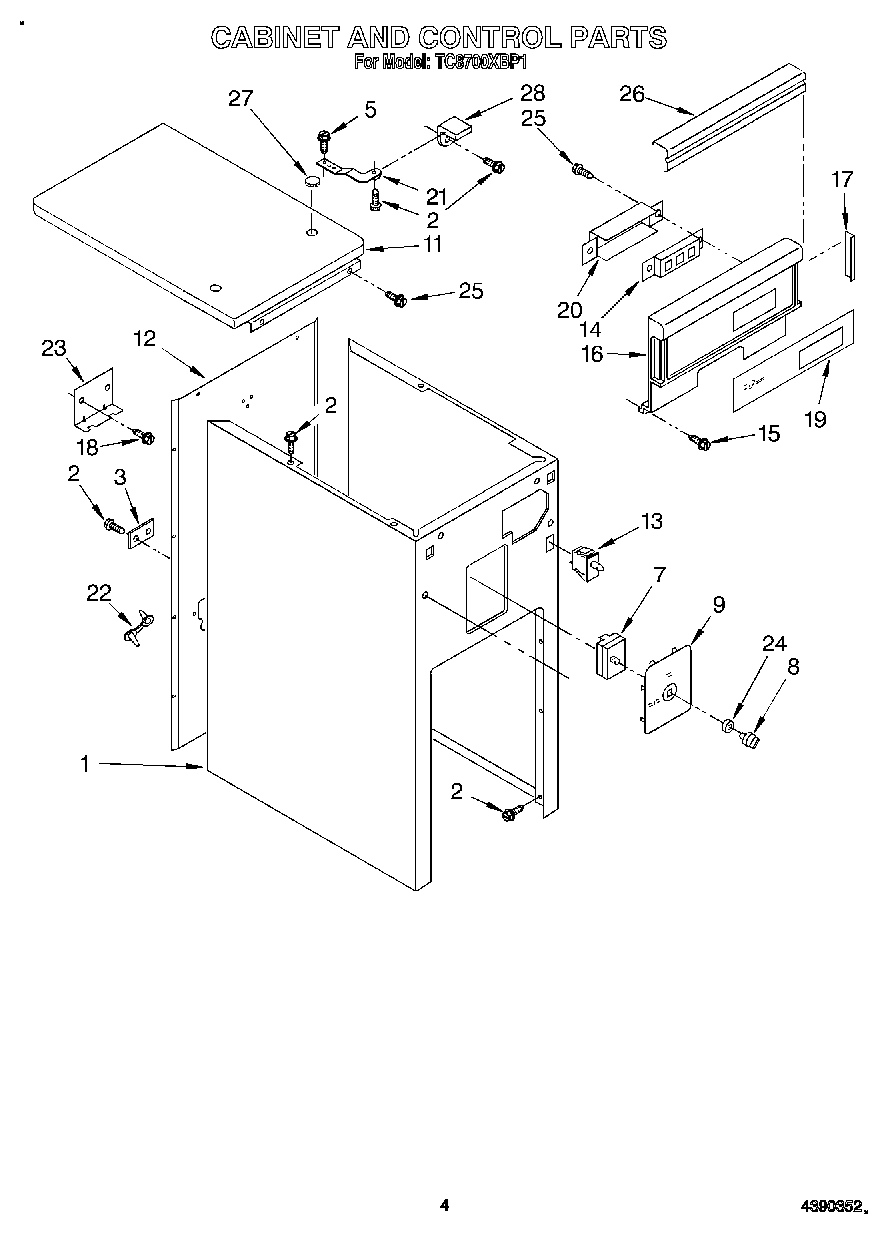

TC8700XBP1 04 – CABINET AND CONTROL

Products

Position	Product
1	Cabinet
2	WP489069 Whirlpool Compactor Screw
3	Plate, Power Cord
5	WPW10139210 Whirlpool Screw
7	777380 Whirlpool Compactor Switch
8	WP4155141 Whirlpool Compactor Switch Knob
9	9871161 Whirlpool Compactor Switch Plate
10	Clamp, Wire
11	Top, Cabinet
12	Panel, Back
13	WP4387911 Whirlpool Refrigerator Switch
14	W10856868 Whirlpool Compactor OFF Switch
15	Screw, 6-20 x 3/8 (2)
16	Escutcheon, Control
17	Trim, Side
19	Insert, Decorative
20	Shield, Switch
21	W11729437 Whirlpool Retaining Bracket
22	Bushing, Cord
23	Bracket, Protector
24	WP777383 Whirlpool Compactor Nut
25	Screw, 8-18 x 1/2
26	Trim, Top
27	Plug, Hole
28	WP780239 Whirlpool Compactor Bracket Retainer
