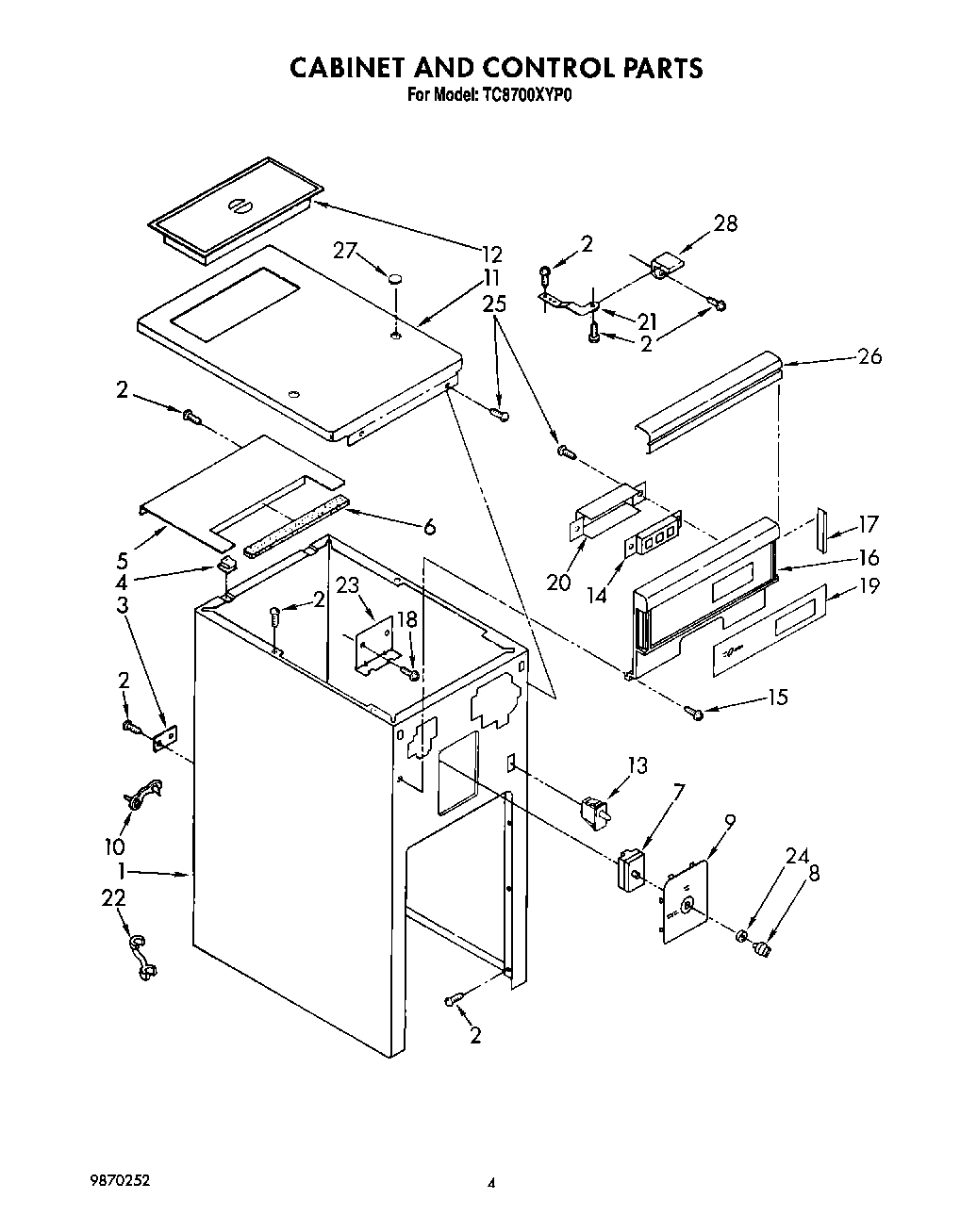

TC8700XYP0 04 – CABINET AND CONTROL

TC8700XYP0 04 – CABINET AND CONTROL

Written by

in

TC8700XYP0 04 – CABINET AND CONTROL

Products

PositionProduct
1Cabinet
2WP489069 Whirlpool Compactor Screw
3Plate, Power Cord
4Clip, Top Mount (2)
5Plate, Bag Storage
6Barrier, Glass
7777380 Whirlpool Compactor Switch
8WP4155141 Whirlpool Compactor Switch Knob
99871161 Whirlpool Compactor Switch Plate
10Clamp, Wire
11Top, Cabinet
12Frame & Lid Assembly
13WP4387911 Whirlpool Refrigerator Switch
14W10856868 Whirlpool Compactor OFF Switch
15Screw, 6-20 x 3/8 (2)
16Escutcheon, Control
17Trim, Side
19Insert, Decorative
20Shield, Switch
21W11729437 Whirlpool Retaining Bracket
22Bushing, Cord
23Bracket, Protector
24WP777383 Whirlpool Compactor Nut
25Screw, 8-18 x 1/2
26Trim, Top
27Plug, Hole
28WP780239 Whirlpool Compactor Bracket Retainer
