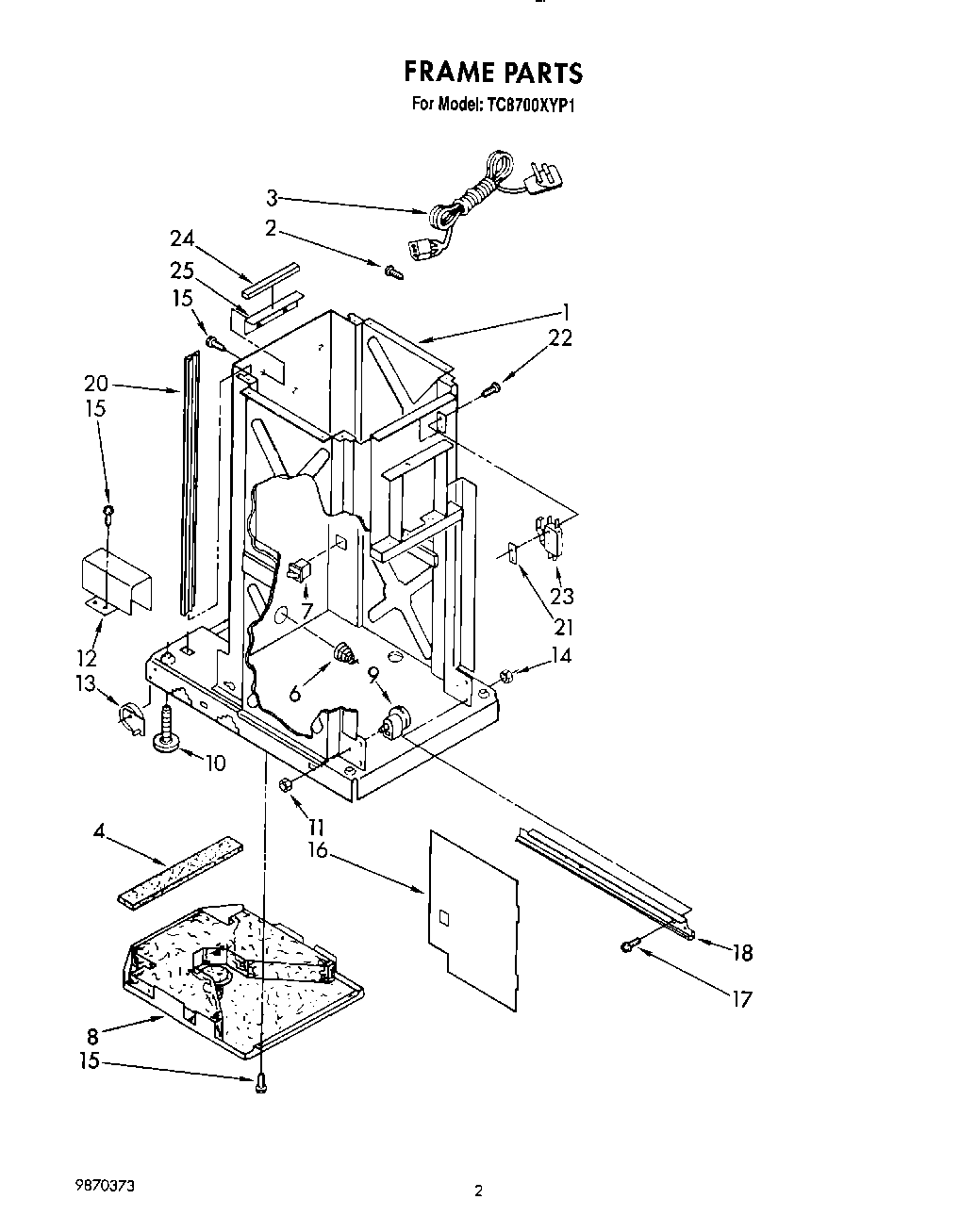

TC8700XYP1 02 – FRAME

Products

Position	Product
1	Frame (Not a Serviceable Part)
2	WP488234 Whirlpool Air Conditioner Screw
3	Cord, Service
4	Barrier, Glass
6	WP777180 Whirlpool Compactor Spring
7	WP4387911 Whirlpool Refrigerator Switch
8	WP780437 Whirlpool Compactor Bottom Pan
9	882688 Whirlpool Compactor Bearing
10	WPW10001130 Whirlpool Leveling Leg
11	WP776356 Whirlpool Compactor Nut
12	Shield, Slide Track
13	Wheel, Leveler (R.H. Rear)
13	W11023674 Whirlpool Compactor Leveling Wheel
14	Nut, 6-32 (4)
15	WP3351614 Whirlpool Screw
16	WP9870444 Whirlpool Compactor Inner Panel
17	WP486754 Whirlpool Compactor Screw
18	WP9870975 Whirlpool Compactor Slide
18	SLIDE
20	W10917246 Whirlpool Compactor RAM Slide
21	Plate, Nut
22	777849 Whirlpool Compactor Screw
23	Switch, Top Limit & Directional
24	Pad, Top Support
25	Angle, Top Support
