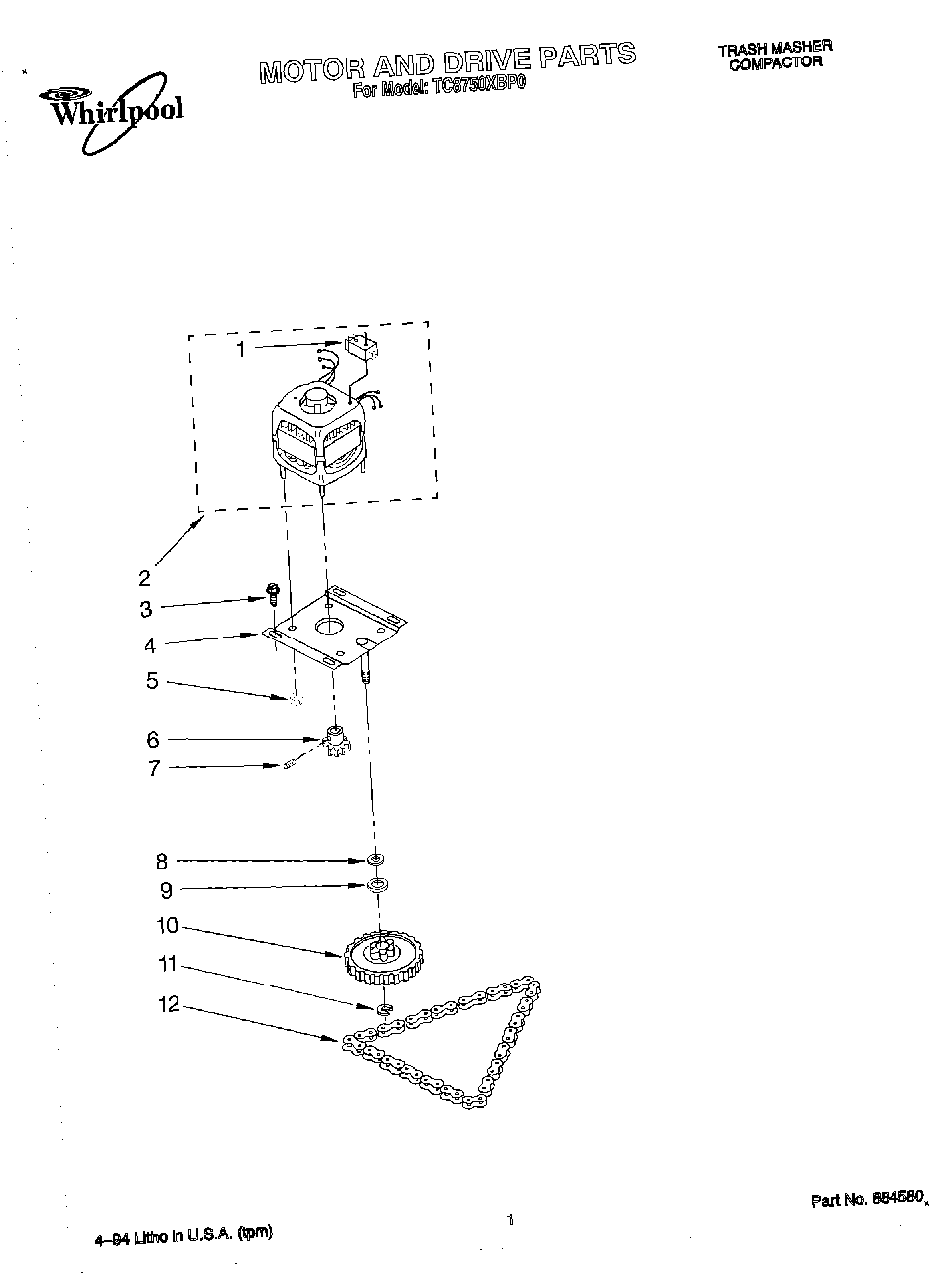

TC8750XBP0 01 – MOTOR AND DRIVE, LIT/OPTIONAL

Products

Position	Product
	Label, Wiring Diagram
	Guide, Use and Care
	Sheet, Tech
	Instructions, Installation
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	9870118A Whirlpool Compactor Bracket Kit
1	W10439651 Whirlpool Air Conditioner Motor Drive
3	Screw. 1/4-20 x 1/2 (4)
4	776327 Whirlpool Compactor Motor Plate
5	WP776338 Whirlpool Compactor Nut
6	GEAR KIT COMPACTOR
7	WP454512 Whirlpool Compactor Spring Pin
8	776035 Whirlpool Compactor Washer
9	W11214485 Whirlpool Compactor Washer
11	WP776036 Whirlpool Compactor Clip
12	Harness, Wiring
12	CHAIN-DRVE
