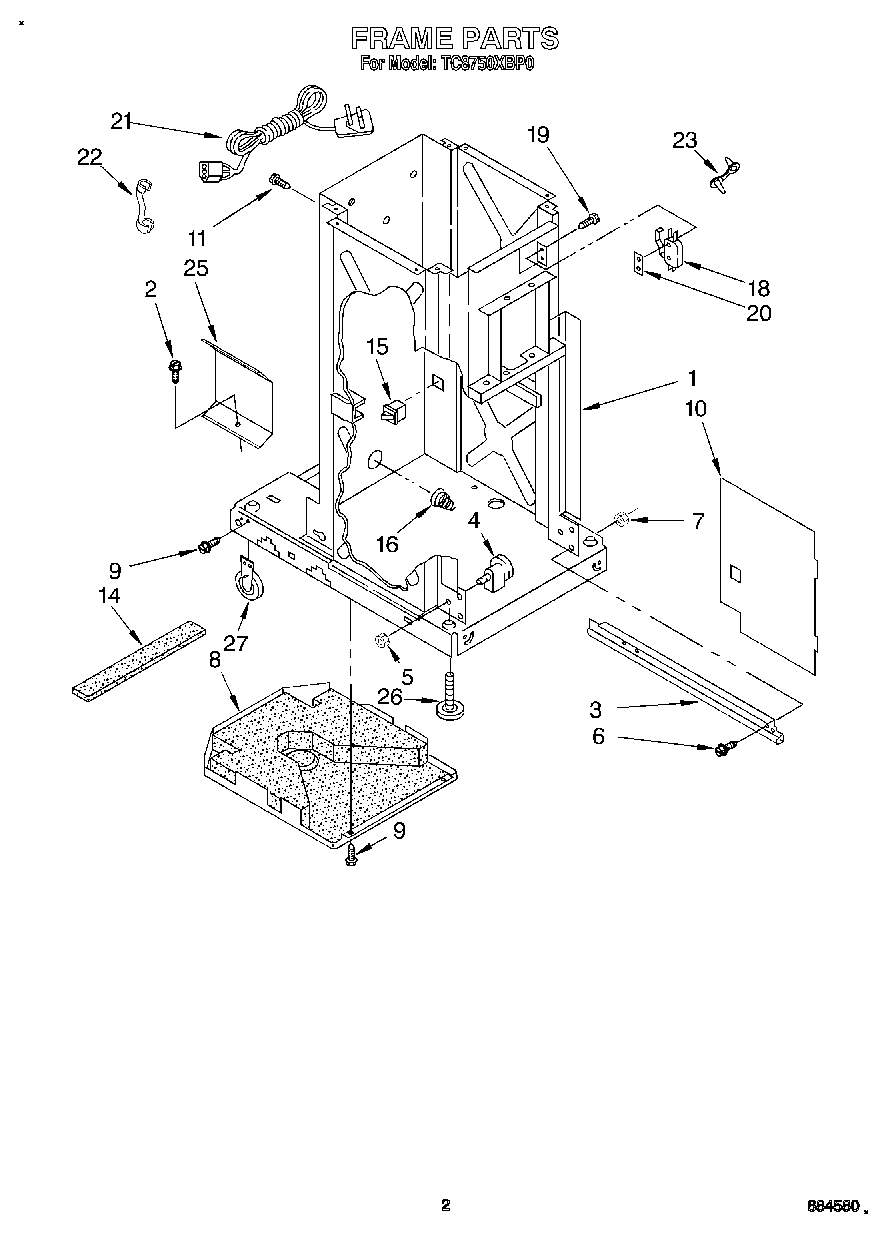

TC8750XBP0 02 – FRAME

Products

Position	Product
1	Frame (Not a Serviceable Part)
2	WP489069 Whirlpool Compactor Screw
3	SLIDE
3	WP9870975 Whirlpool Compactor Slide
4	882688 Whirlpool Compactor Bearing
5	WP776356 Whirlpool Compactor Nut
6	WP486754 Whirlpool Compactor Screw
7	Nut, 6-32 (4)
8	WP780437 Whirlpool Compactor Bottom Pan
9	WP3351614 Whirlpool Screw
10	WP9870444 Whirlpool Compactor Inner Panel
11	WP488234 Whirlpool Air Conditioner Screw
14	Barrier, Glass
15	WP4387911 Whirlpool Refrigerator Switch
16	WP777180 Whirlpool Compactor Spring
18	WP777811 Whirlpool Compactor Directional Switch
19	777849 Whirlpool Compactor Screw
20	Plate, Nut
21	Cord, Service
22	Bushing, Cord
23	Clamp, Wire
25	9870867 Whirlpool Shield
26	WPW10001130 Whirlpool Leveling Leg
27	W11023674 Whirlpool Compactor Leveling Wheel
