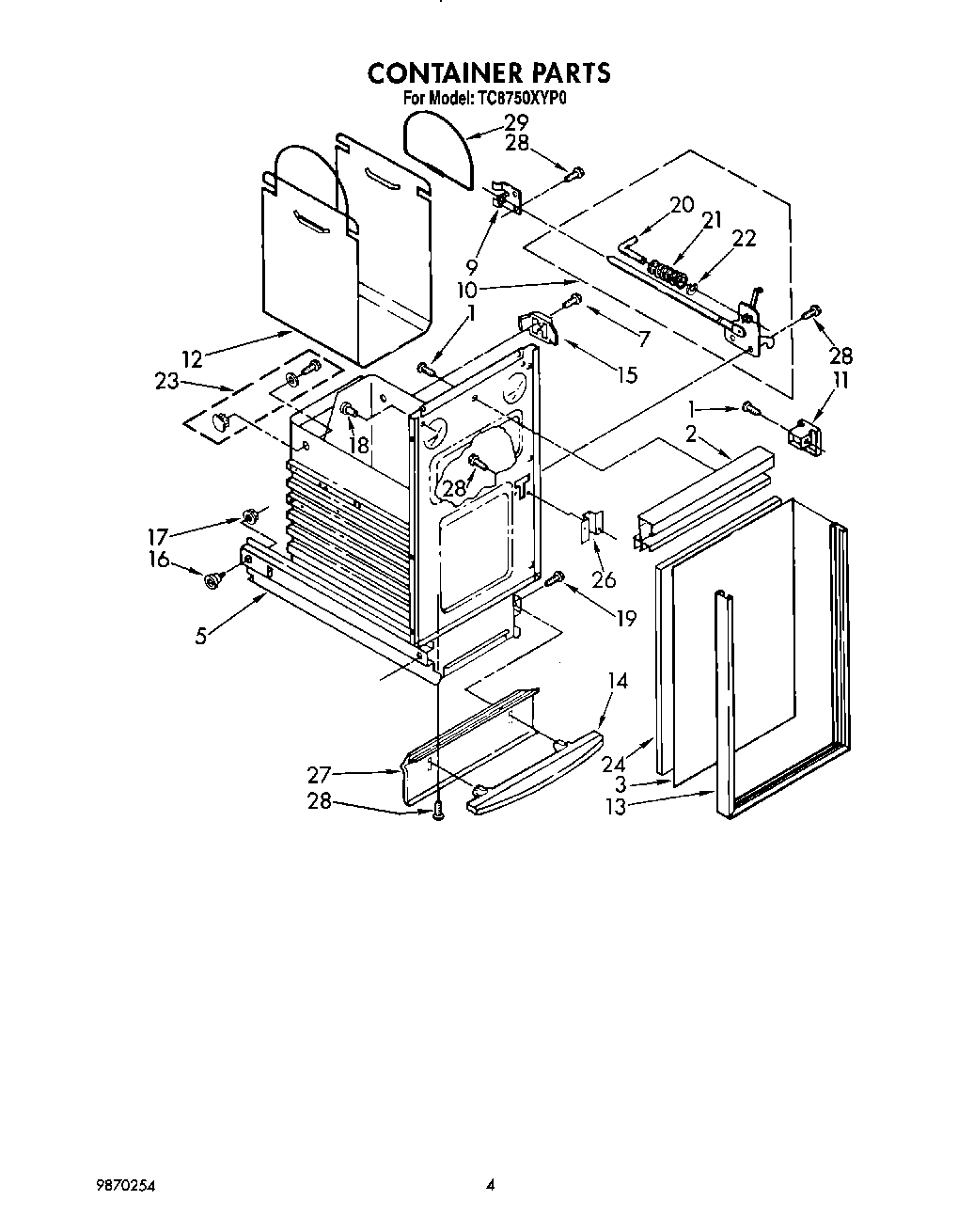

TC8750XYP0 04 – CONTAINER

Products

PositionProduct
2Handle, Container
3Panel, Container Front (Black & White)
5Container Assembly
7Screw (2)
9WP776395 Whirlpool Compactor Guide
10675379 Whirlpool Compactor Drawer Latch
11Cap, Handle R.H.
11Cap, Handle L.H.
1213030RP Whirlpool Compactor Bag Caddy
13Trim, Container (Front)
14W11679165 Whirlpool Foot Pedal
159871125 Whirlpool Compactor Actuator
16WP9871602 Whirlpool Compactor Bearing
17WP776356 Whirlpool Compactor Nut
18Bumper, Container (2)
19WP780263 Whirlpool Compactor Screw
20Pin
21775736 Whirlpool Compactor Spring
22Ring, “E“
23RETAINER, BAG
24Spacer, Center Panel
26775665 Whirlpool Compactor Plate Latch
27WP777328 Whirlpool Compactor Guard
28WP489069 Whirlpool Compactor Screw
29WP777108 Whirlpool Compactor Bag Handle
