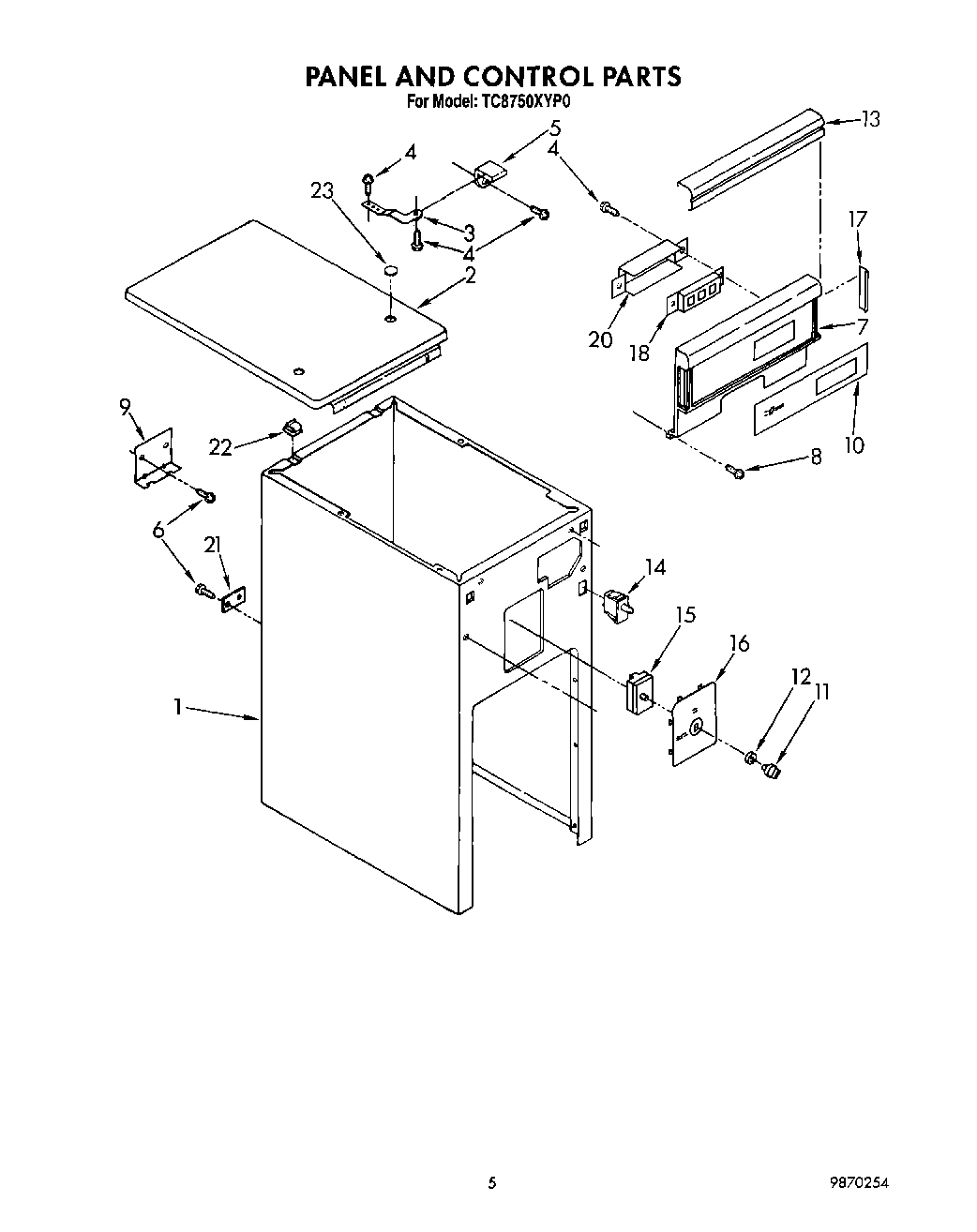

TC8750XYP0 05 – PANEL AND CONTROL

Products

Position	Product
1	Cabinet
2	Top, Cabinet
3	W11729437 Whirlpool Retaining Bracket
4	Screw, 8-18 x 1/2
5	WP780239 Whirlpool Compactor Bracket Retainer
6	WP489069 Whirlpool Compactor Screw
7	Escutcheon, Control
8	Screw, 6-20 x 3/8 (2)
9	Bracket, Protector
10	Insert, Decorative
11	WP4155141 Whirlpool Compactor Switch Knob
12	WP777383 Whirlpool Compactor Nut
13	Trim, Top
14	WP4387911 Whirlpool Refrigerator Switch
15	777380 Whirlpool Compactor Switch
16	9870356 Whirlpool Compactor Switch Plate
17	Trim, Side
18	W10856868 Whirlpool Compactor OFF Switch
20	Shield, Switch
21	Plate, Power Cord
22	Clip, Top Mount (2)
23	4151479 Whirlpool Compactor Button Plug
