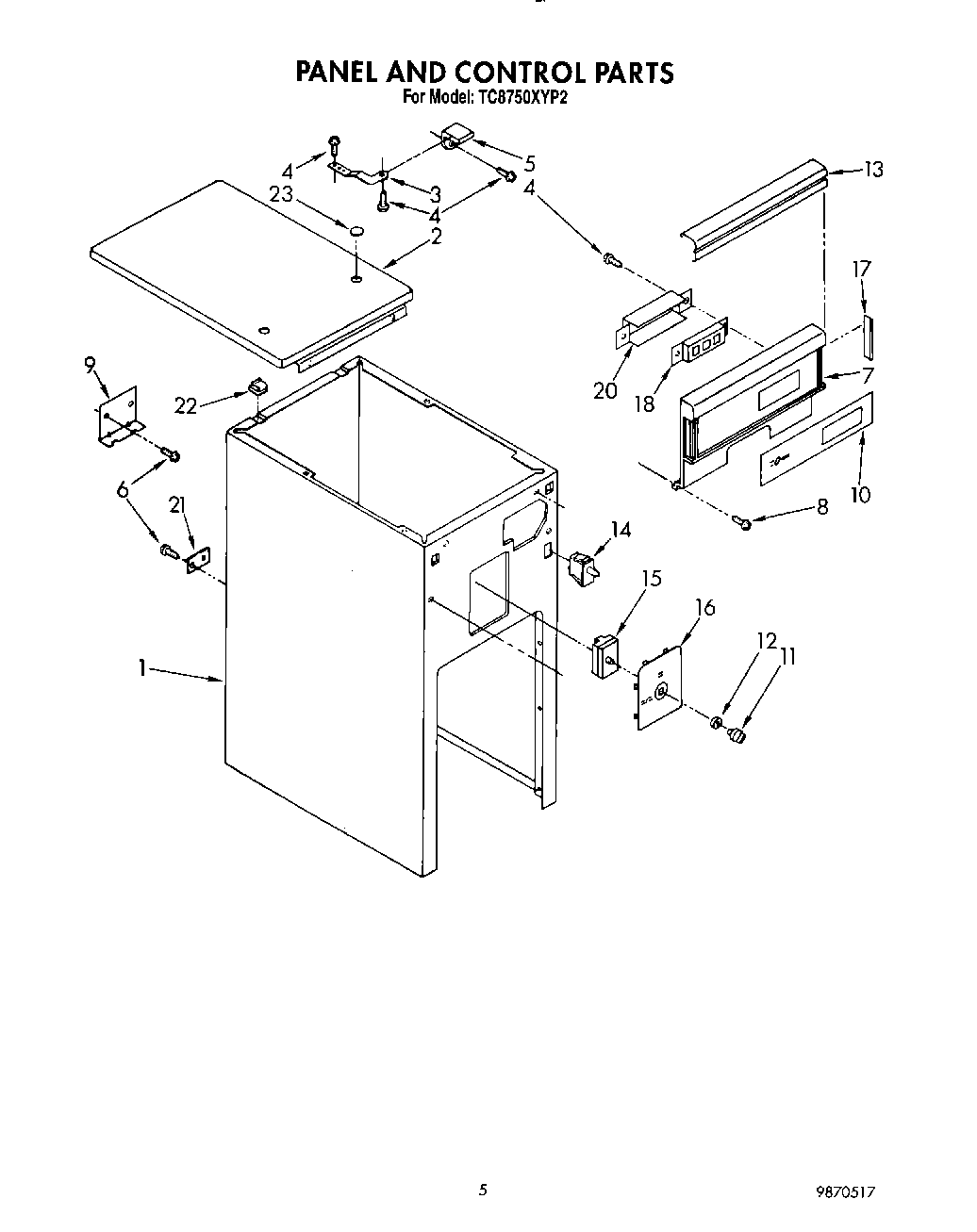

TC8750XYP2 05 – PANEL AND CONTROL

Products

PositionProduct
1Cabinet
2Top, Cabinet
3W11729437 Whirlpool Retaining Bracket
4Screw, 8-18 x 1/2
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489069 Whirlpool Compactor Screw
7Escutcheon, Control
8Screw, 6-20 x 3/8 (2)
9Bracket, Protector
10Insert, Decorative
11WP4155141 Whirlpool Compactor Switch Knob
12WP777383 Whirlpool Compactor Nut
13Trim, Top
14WP4387911 Whirlpool Refrigerator Switch
15777380 Whirlpool Compactor Switch
169870356 Whirlpool Compactor Switch Plate
17Trim, Side
18W10856868 Whirlpool Compactor OFF Switch
20Shield, Switch
21Plate, Power Cord
22Clip, Top Mount (2)
234151479 Whirlpool Compactor Button Plug
