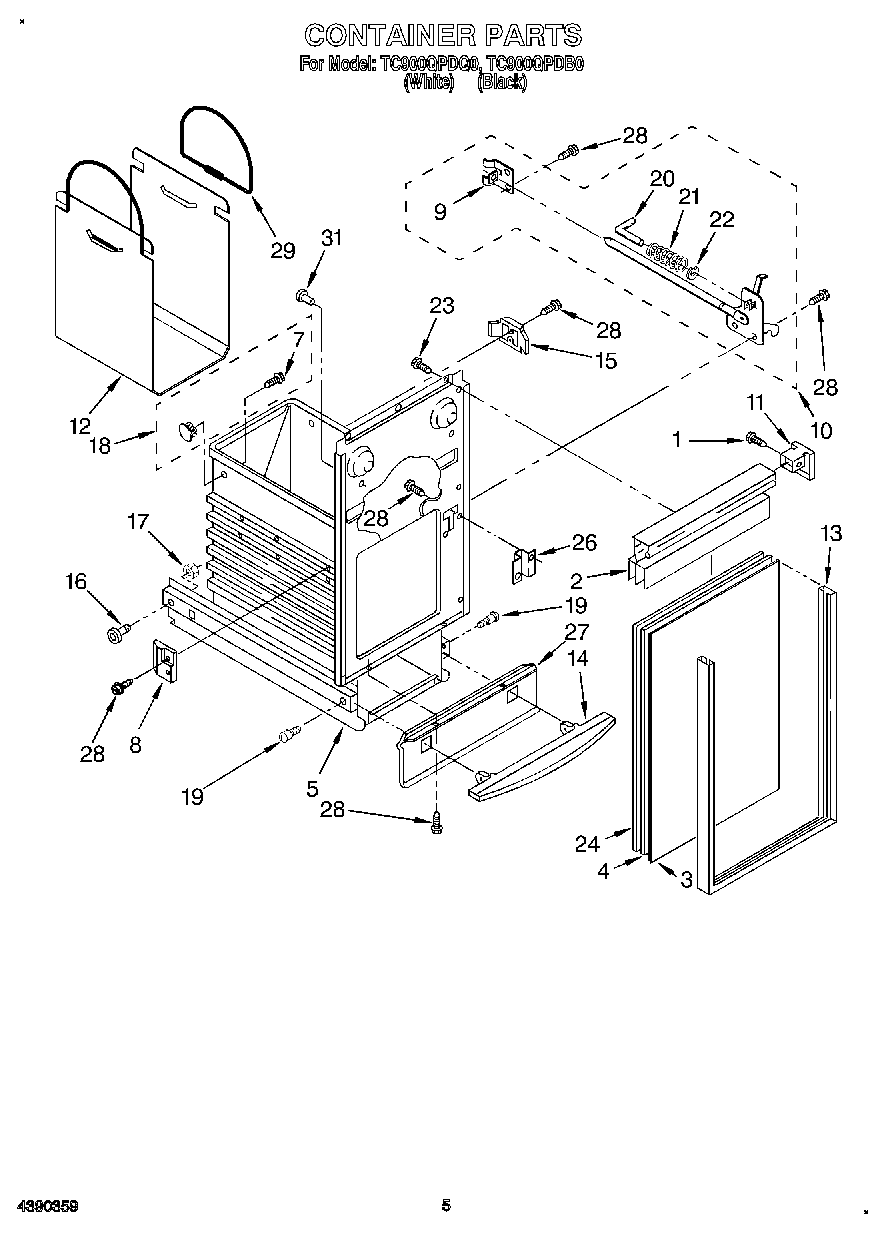

TC900QPDB0 04 – CONTAINER

Products

Position	Product
1	Screw, 8-18 x 1/2
2	Handle, Container (White)
2	Handle, Container
3	Panel, Container Front (Black & White)
3	Panel, Container Front (Almond & Black)
4	Spacer, Center Panel
5	Container Assembly
8	Guide, Container (2)
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	Cap, Handle End (White, RH)
11	Cap, Handle End (Black, RH)
11	Cap, Handle End (Black, LH)
11	Cap, Handle End (White, LH)
12	13030RP Whirlpool Compactor Bag Caddy
13	Trim, Container (Front)
13	Trim, Container
14	WP9871031 Whirlpool Compactor Foot Pedal
14	W11679165 Whirlpool Foot Pedal
15	9871125 Whirlpool Compactor Actuator
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	RETAINER, BAG
19	WP780263 Whirlpool Compactor Screw
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, ``E``
23	Screw
24	Spacer, Back Panel
26	775665 Whirlpool Compactor Plate Latch
27	W10917704 Whirlpool Compactor Guard
27	WP777328 Whirlpool Compactor Guard
28	WP489069 Whirlpool Compactor Screw
29	WP777108 Whirlpool Compactor Bag Handle
31	Bumper, Container (2)
