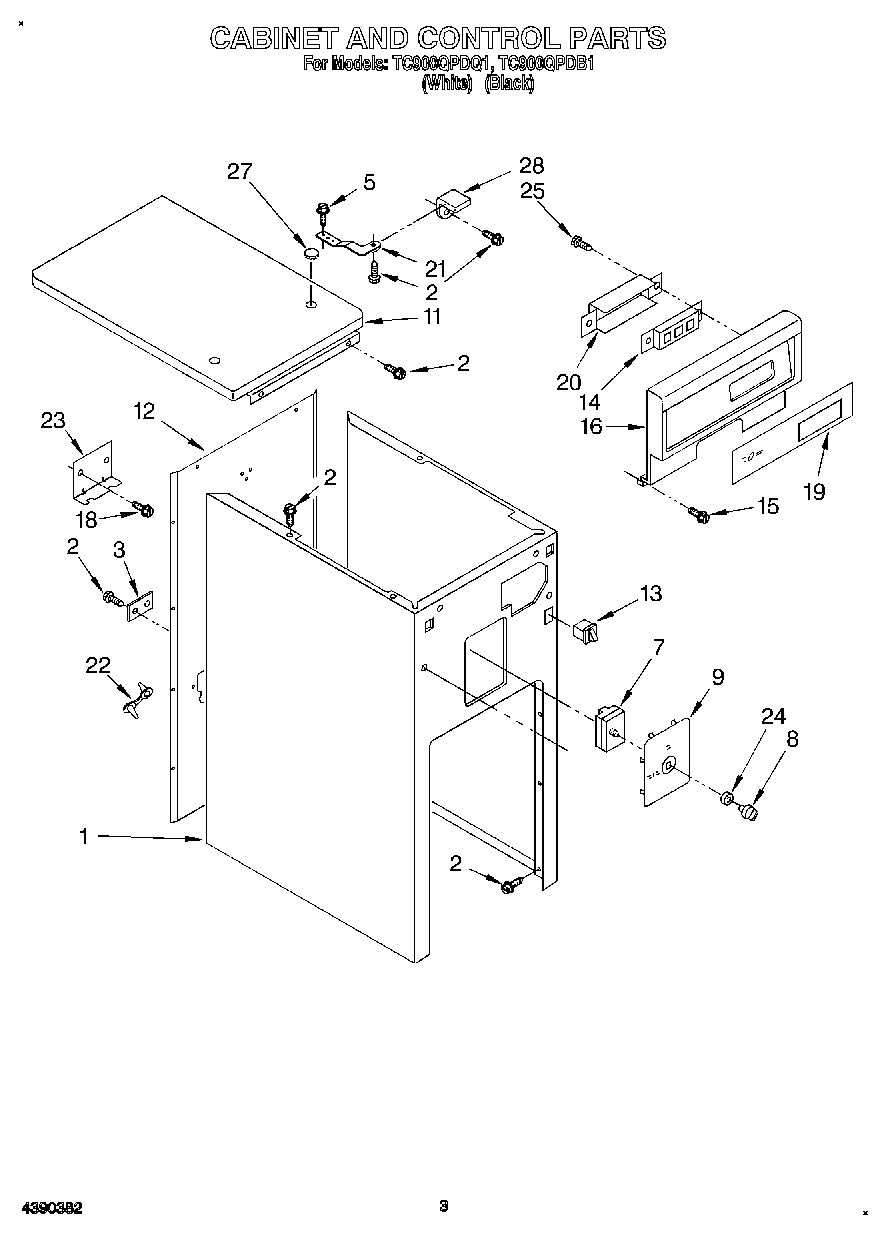

TC900QPDB1 03 – CABINET AND CONTROLadmin2025-04-26T11:19:26+00:00TC900QPDB1 03 – CABINET AND CONTROL
Products
| Position | Product |
|---|
| 1 | Cabinet |
| 1 | WP9870913 Whirlpool Cabinet |
| 2 | WP489069 Whirlpool Compactor Screw |
| 3 | Plate, Power Cord |
| 5 | WPW10139210 Whirlpool Screw |
| 7 | 777380 Whirlpool Compactor Switch |
| 8 | WP4155141 Whirlpool Compactor Switch Knob |
| 9 | 9871161 Whirlpool Compactor Switch Plate |
| 9 | 9870356 Whirlpool Compactor Switch Plate |
| 11 | WP9870865 Whirlpool Compactor Top |
| 11 | Top, Cabinet |
| 12 | Panel, Back |
| 13 | WP4387911 Whirlpool Refrigerator Switch |
| 14 | Assembly, Switch (Black) |
| 14 | Assembly, Switch (White) |
| 15 | Screw, 6-20 x 3/8 (2) |
| 16 | Escutcheon, Control (White) |
| 16 | Escutcheon, Control (Black) |
| 19 | Insert, Decorative (White) |
| 19 | Insert, Decorative (Black) |
| 20 | Shield, Switch |
| 21 | W11729437 Whirlpool Retaining Bracket |
| 22 | Bushing, Cord |
| 23 | Bracket, Protector |
| 24 | WP777383 Whirlpool Compactor Nut |
| 25 | Screw, 8-18 x 1/2 |
| 27 | 4151479 Whirlpool Compactor Button Plug |
| 27 | Plug, Hole |
| 28 | WP780239 Whirlpool Compactor Bracket Retainer |
