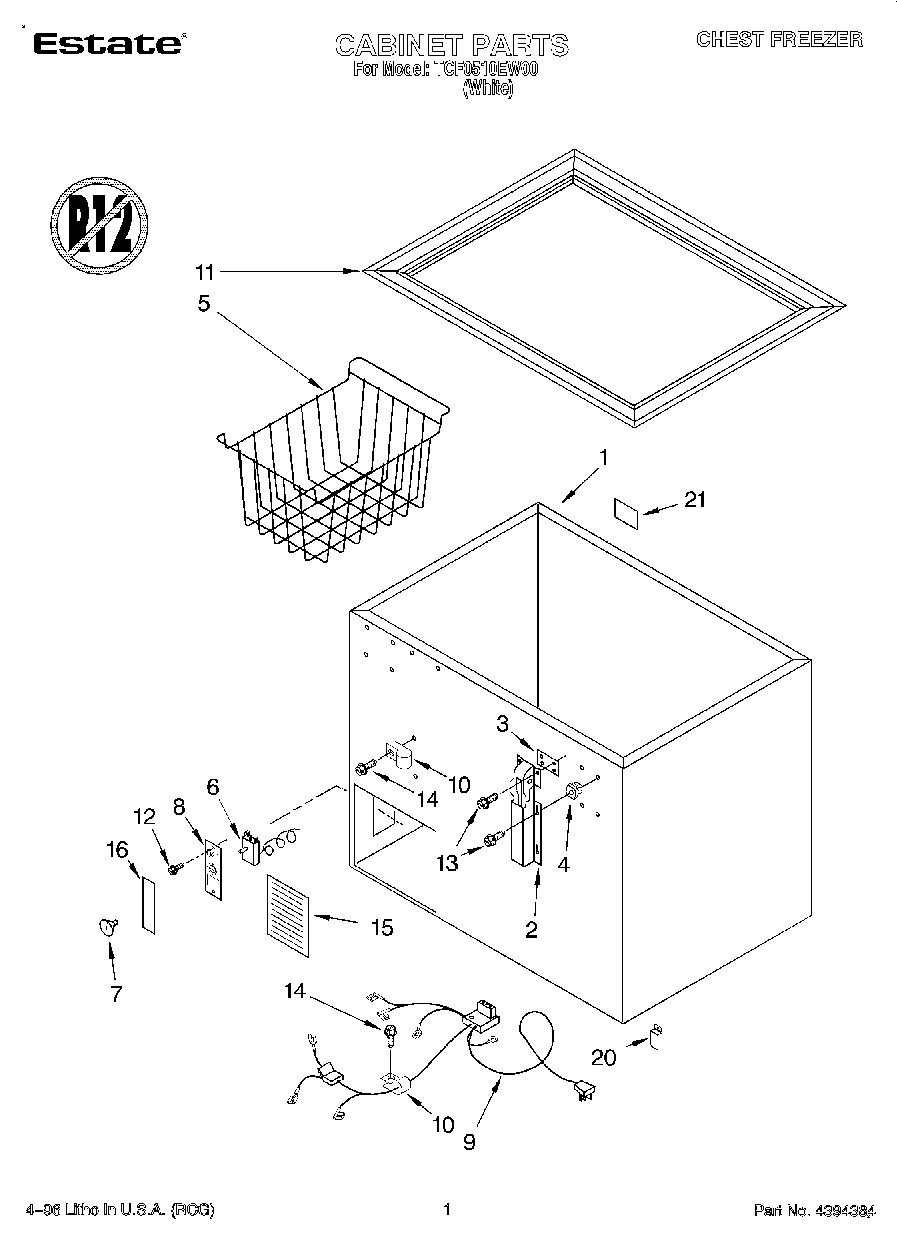

TCF0510EW00 01 – SECTION

Products

Position	Product
	Energy Label
	Use & Care Guide
1	Cabinet (Not A Serviceable Part)
2	Hinge Assembly
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	Wire Basket
6	Thermostat
7	Knob, Thermostat
8	W10682894 Whirlpool Refrigerator Control Box
9	External, Wiring Harness
10	488946 Whirlpool Air Conditioner Clamp
11	Breaker Strip
12	3-24004-049 Whirlpool Screw
13	4356491 Whirlpool Refrigerator Screw
14	SCREW
15	Access Panel
16	Insert, Control
20	Clip
21	799344 Whirlpool Refrigerator Paint
21	350942 Whirlpool Spray Paint
21	Nameplate
21	Rivet Kit (60)
21	72017 Whirlpool Appliance Touch-Up Paint White
