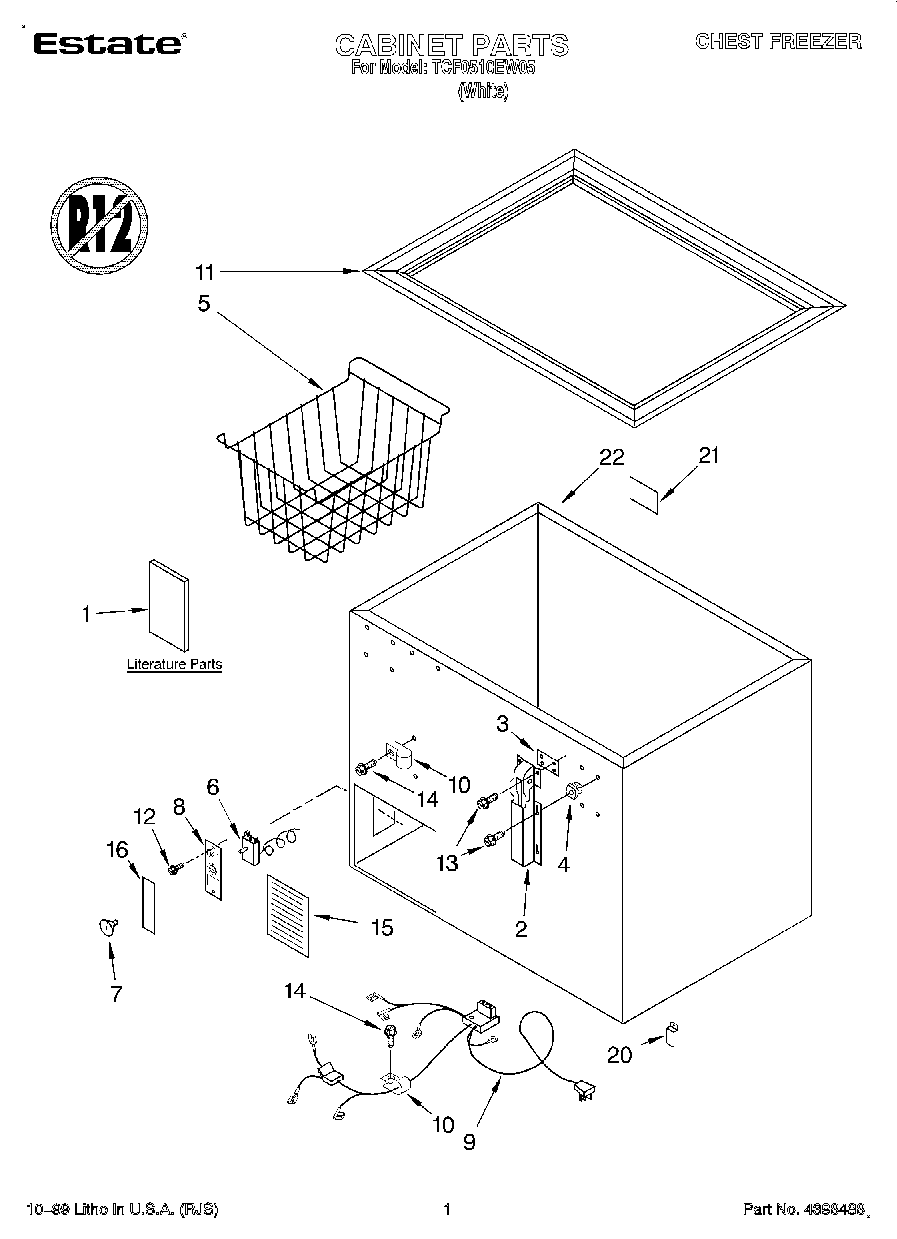

TCF0510EW05 01 – SECTION

TCF0510EW05 01 – SECTION

Written by

in

TCF0510EW05 01 – SECTION

Products

PositionProduct
1Energy Label
1Owner`s Manual
2Hinge Assembly
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
5Wire Basket
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Thermostat, Knob
8W10682894 Whirlpool Refrigerator Control Box
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
123-24004-049 Whirlpool Screw
134356491 Whirlpool Refrigerator Screw
14SCREW
15Access Panel
16Insert, Control
20Clip
21Nameplate
22Rivet Kit (60)
2272017 Whirlpool Appliance Touch-Up Paint White
22350942 Whirlpool Spray Paint
22799344 Whirlpool Refrigerator Paint
22Cabinet (Not A Serviceable Part)
