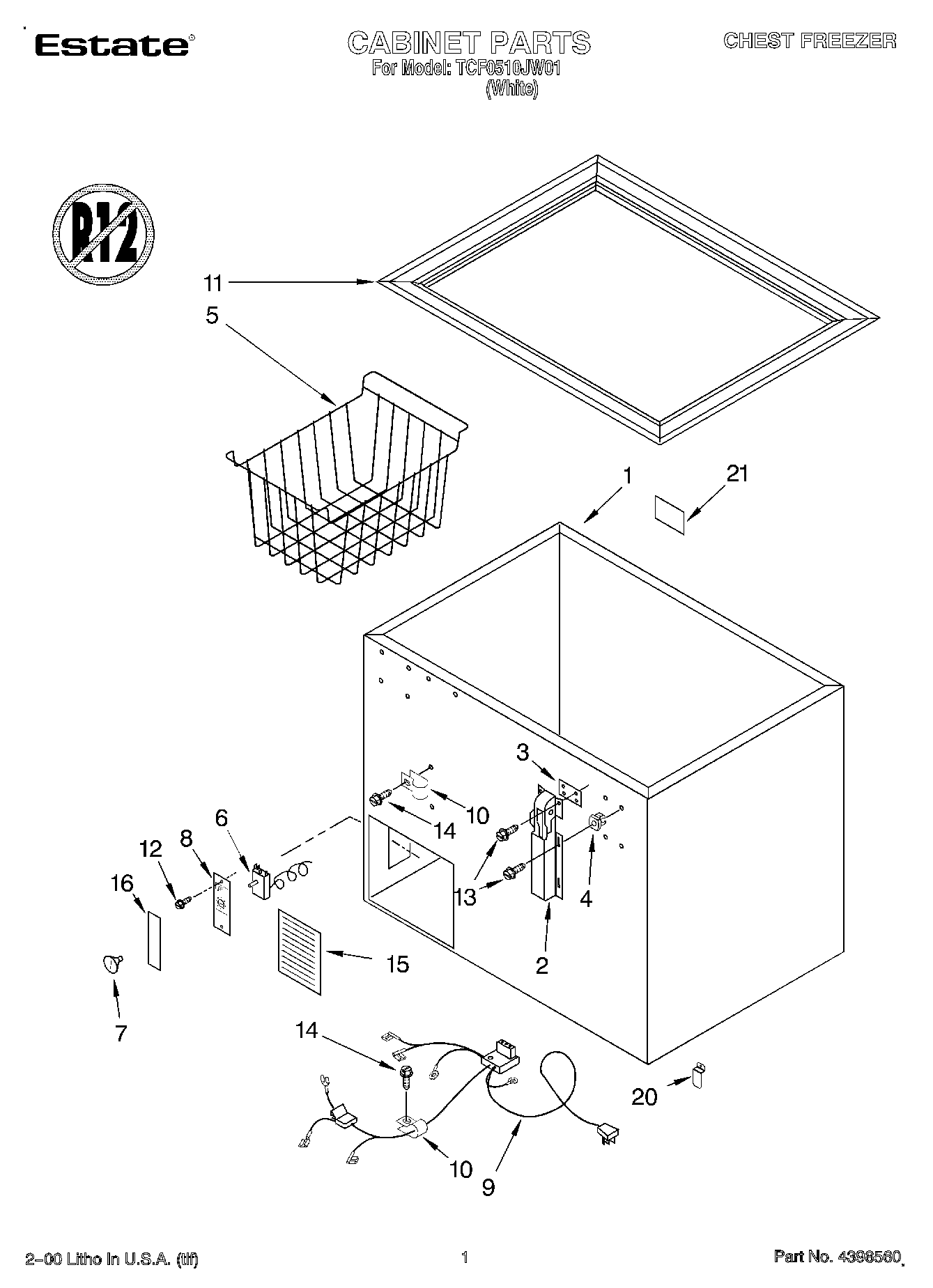

TCF0510JW01 01 – SECTION

TCF0510JW01 01 – SECTION

Written by

in

TCF0510JW01 01 – SECTION

Products

PositionProduct
Energy Label
Owner`s Manual
1Cabinet (Not A Serviceable Part)
2Hinge Assembly
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
5Wire Basket
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Thermostat, Knob
8W10682894 Whirlpool Refrigerator Control Box
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
123-24004-049 Whirlpool Screw
134356491 Whirlpool Refrigerator Screw
14SCREW
15Access Panel
16Insert, Control
20Clip
21Rivet Kit (60)
21Nameplate
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
21350930 Whirlpool White Spray Paint
