TCF0710EW01 01 – SECTION

Products

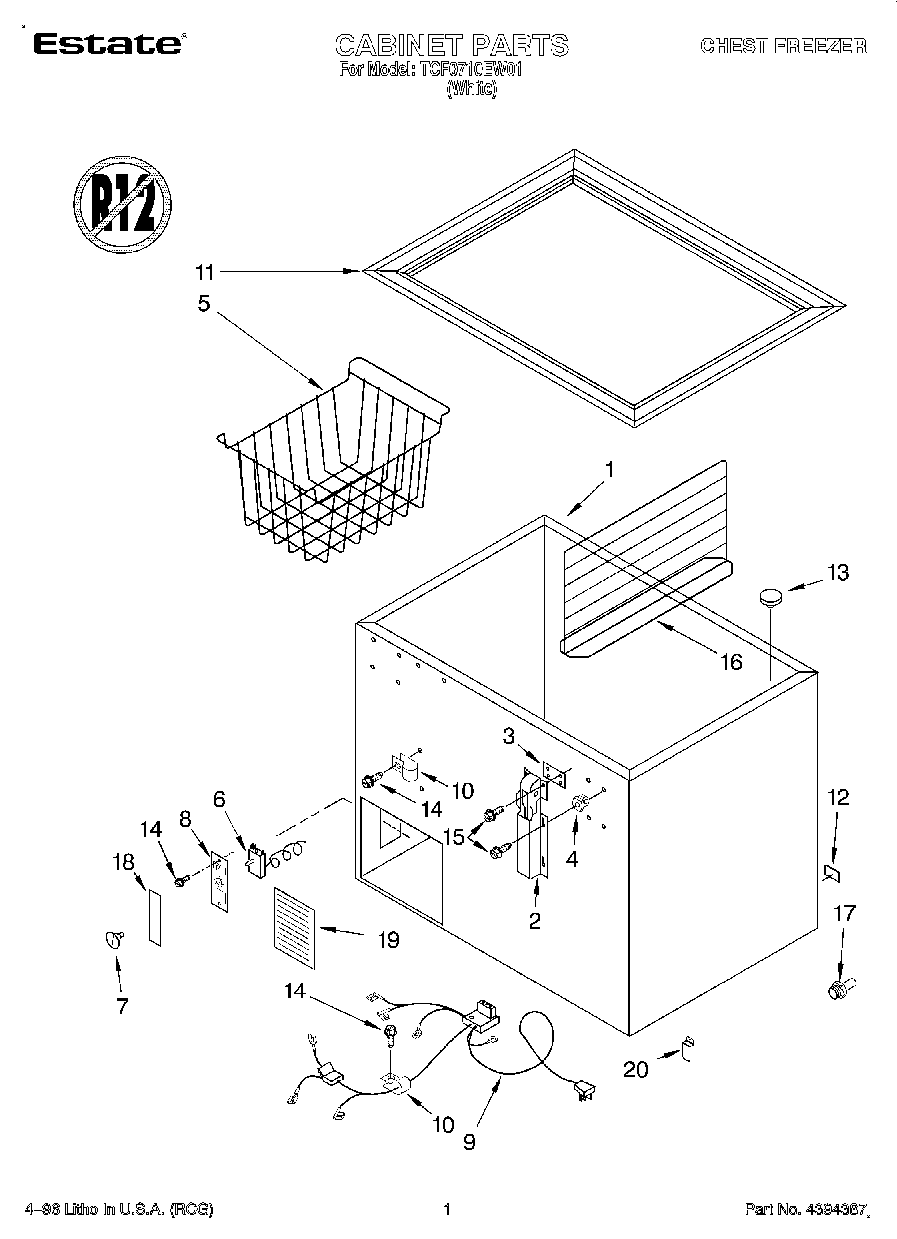

PositionProduct
Energy Label
Use & Care Guide
1Cabinet (Not A Serviceable Part)
24356490 Whirlpool Refrigerator Door Hinge
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
58210434A Whirlpool Refrigerator Basket
6Thermostat
7Knob, Thermostat
8W10682894 Whirlpool Refrigerator Control Box
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
12Drain, Cap
13Drain, Plug
143-24004-049 Whirlpool Screw
154356491 Whirlpool Refrigerator Screw
16Divider (Optional)
17W11663505 Whirlpool Hose Adapter
18Insert, Control
19Access Panel
20Rivet Kit (60)
20Clip
20350942 Whirlpool Spray Paint
20799344 Whirlpool Refrigerator Paint
2072017 Whirlpool Appliance Touch-Up Paint White
