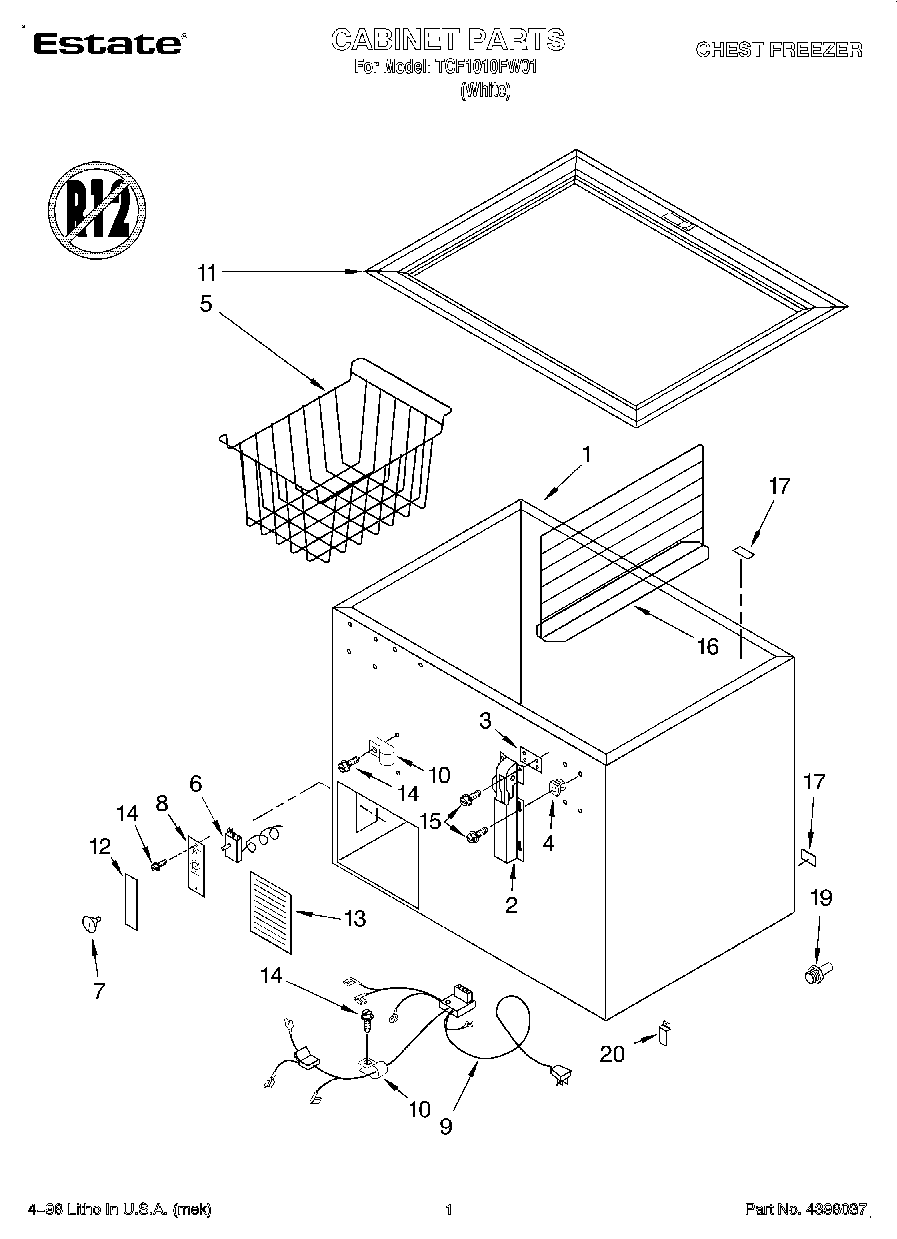

TCF1010FW01 01 – SECTION

Products

Position	Product
	Energy Label
	Owner`s Manual
1	Cabinet (Not A Serviceable Part)
2	4356490 Whirlpool Refrigerator Door Hinge
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	8210434A Whirlpool Refrigerator Basket
6	WP4-35940-001 Whirlpool Refrigerator Thermostat
7	Knob, Thermostat
8	W10682894 Whirlpool Refrigerator Control Box
9	External, Wiring Harness
10	Clip
11	Breaker Strip
12	Insert, Control
13	Access Panel
14	3-24004-049 Whirlpool Screw
15	4356491 Whirlpool Refrigerator Screw
16	Divider (Optional)
17	Drain, Cap
19	W11663505 Whirlpool Hose Adapter
20	Clip, Gasket (Kit Of 60)
20	Clip
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	350956 Whirlpool Spray Assembly
