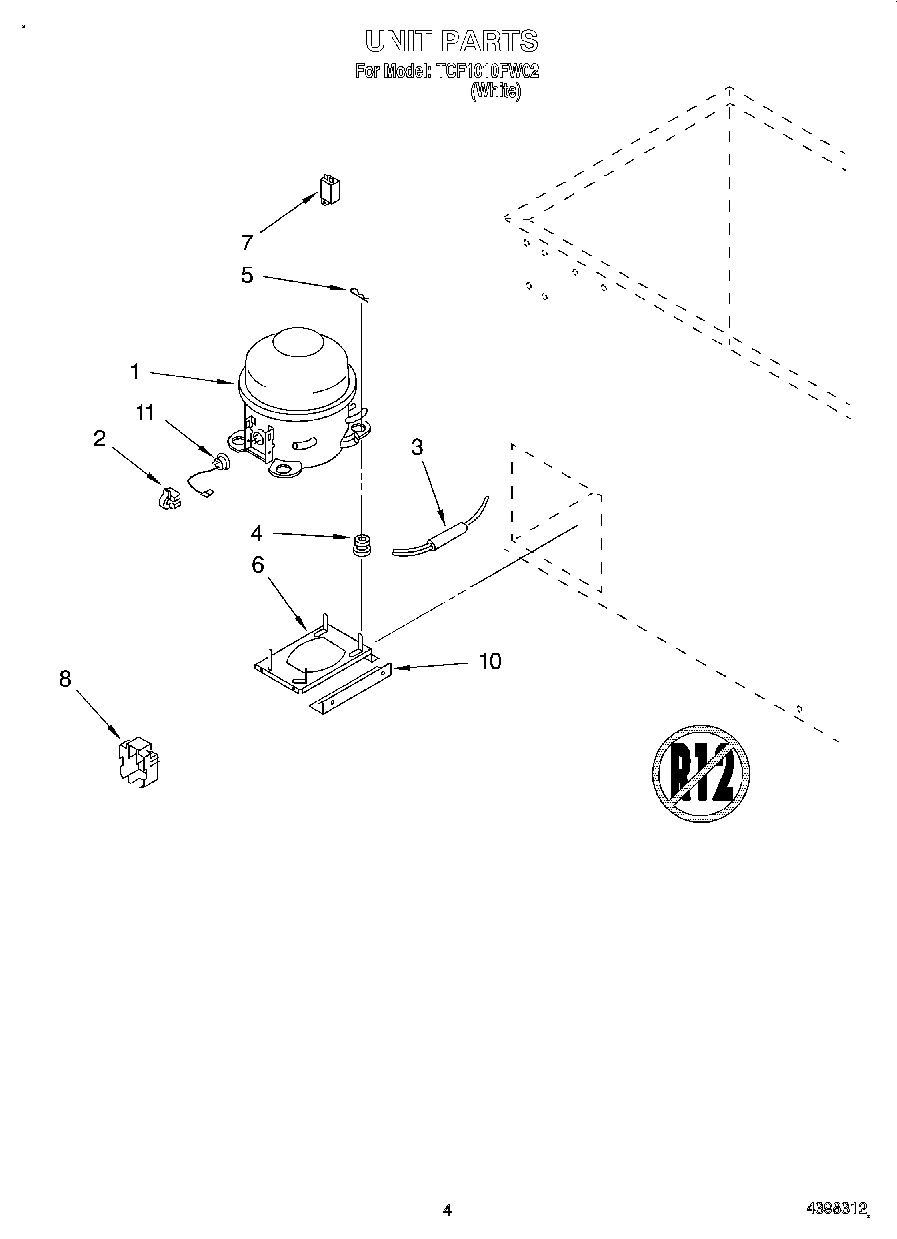

TCF1010FW02 03 – SECTION

Products

Position	Product
1	Compressor (Includes Items 2, 3, 4, 5, 7 & 8)
2	Relay
3	W10843121 Whirlpool Refrigerator Tube
4	Grommet, Mounting Compressor
5	Clip, Hitch Pin
6	Base, Compressor
7	Capacitor
8	Cover
10	3-81556-001 Whirlpool Brace
11	Overload
