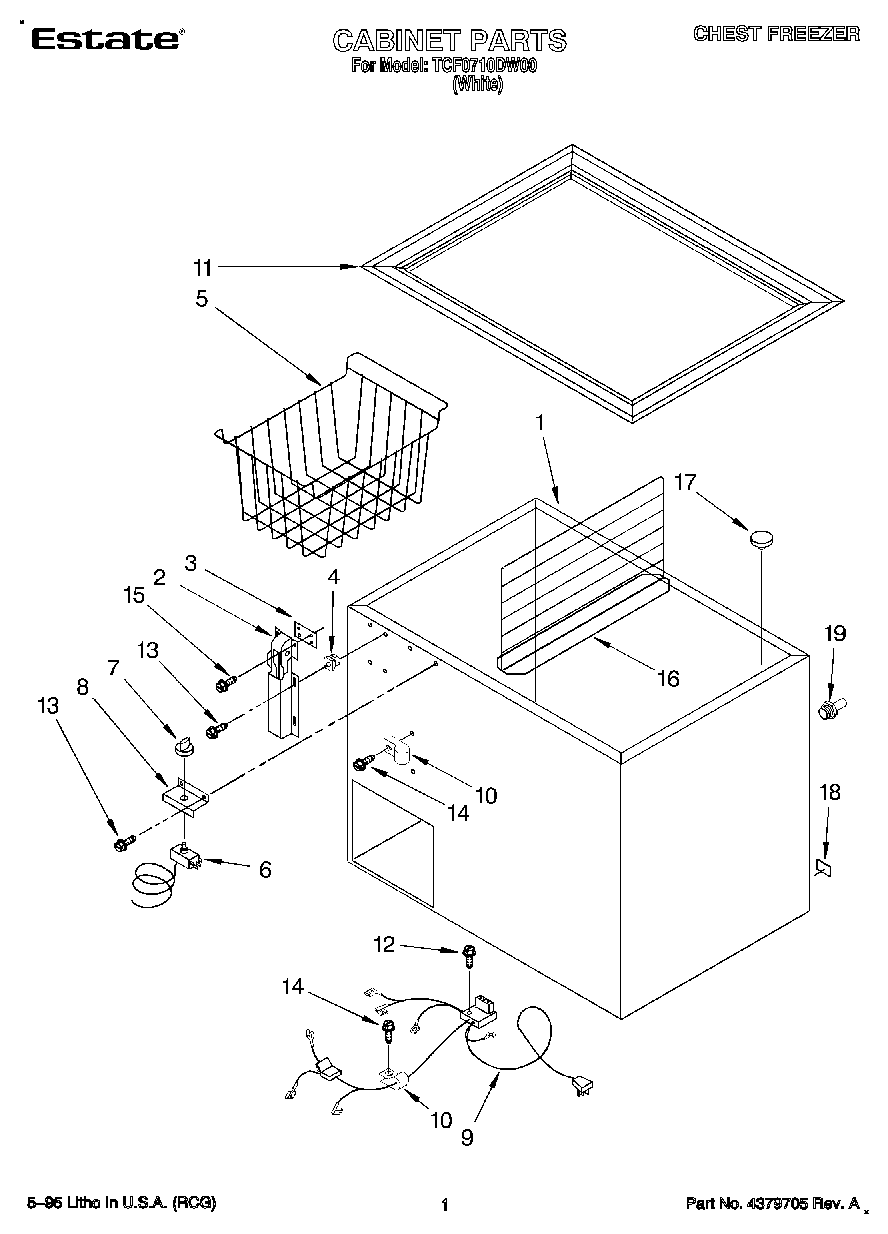

TCF1510DW00 01 – SECTION

Products

Position	Product
	Use & Care Guide
1	Cabinet (Not A Serviceable Part)
2	Hinge Assembly
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	8210434A Whirlpool Refrigerator Basket
6	Thermostat
7	Thermostat, Knob
8	Thermostat, Control Bracket
9	Wiring, Harness External
10	488946 Whirlpool Air Conditioner Clamp
11	Breaker Strip
12	Screw
13	WP308685 Whirlpool Microwave Screw
14	SCREW
15	4356491 Whirlpool Refrigerator Screw
16	Divider (Optional)
17	Drain, Cap
18	Drain, Plug
19	72017 Whirlpool Appliance Touch-Up Paint White
19	799344 Whirlpool Refrigerator Paint
19	Rivet Kit (60)
19	W11663505 Whirlpool Hose Adapter
19	350930 Whirlpool White Spray Paint
