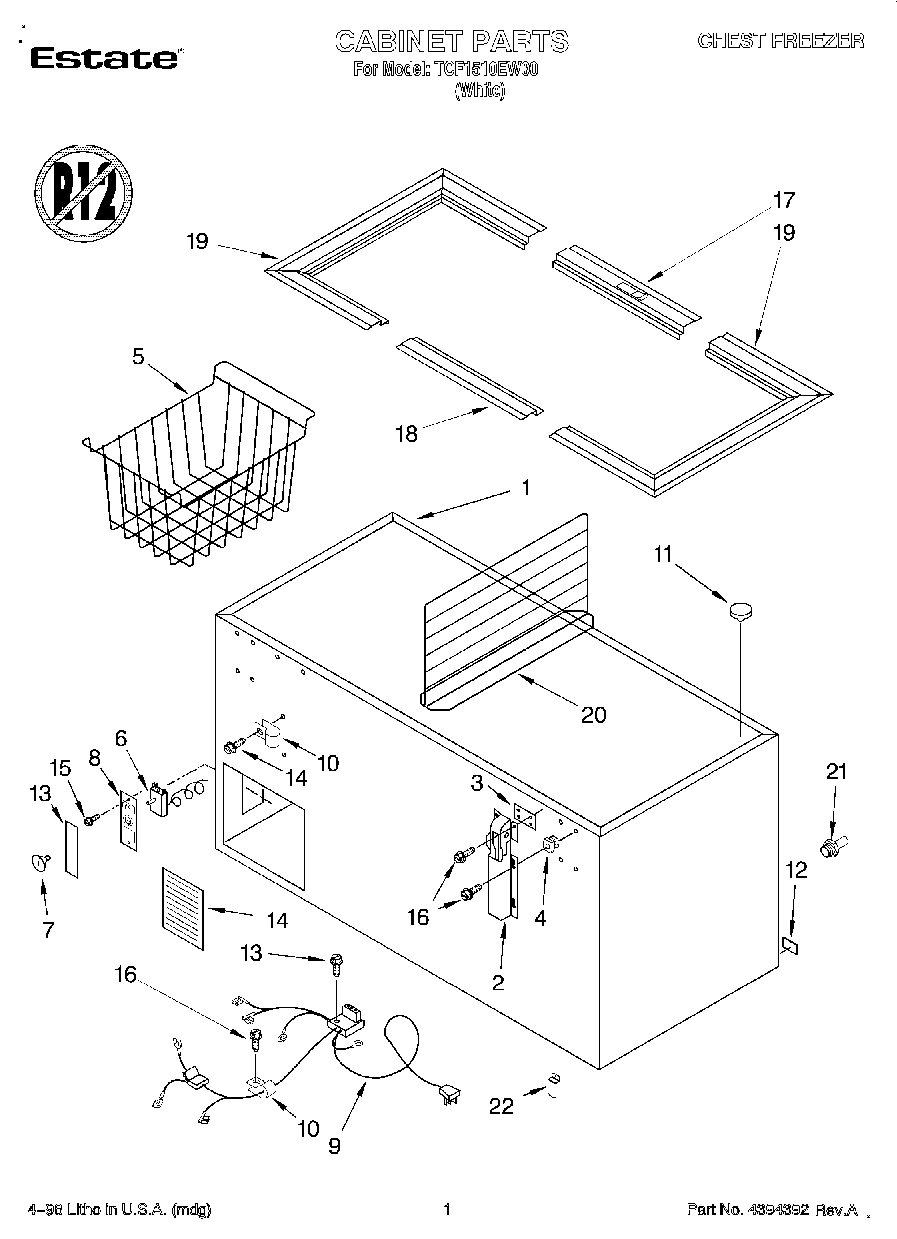

TCF1510EW00 01 – SECTION

TCF1510EW00 01 – SECTION

Written by

in

TCF1510EW00 01 – SECTION

Products

PositionProduct
Use & Care Guide
Energy Label
1Cabinet (Not A Serviceable Part)
24356490 Whirlpool Refrigerator Door Hinge
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
5Wire Basket
6Thermostat
7Knob, Thermostat
8W10682894 Whirlpool Refrigerator Control Box
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Drain, Plug
12Drain, Cap
13Insert, Control
14Access Panel
153-24004-049 Whirlpool Screw
164356491 Whirlpool Refrigerator Screw
174-35011-004 Whirlpool Refrigerator Breaker Trim
184-35010-004 Whirlpool Breaker Trim
19W11045300 Whirlpool Refrigerator Trim Bracket
20Divider
21W11663505 Whirlpool Hose Adapter
22Clip, Gasket (Kit Of 60)
22Clip
22350942 Whirlpool Spray Paint
22799344 Whirlpool Refrigerator Paint
2272017 Whirlpool Appliance Touch-Up Paint White
