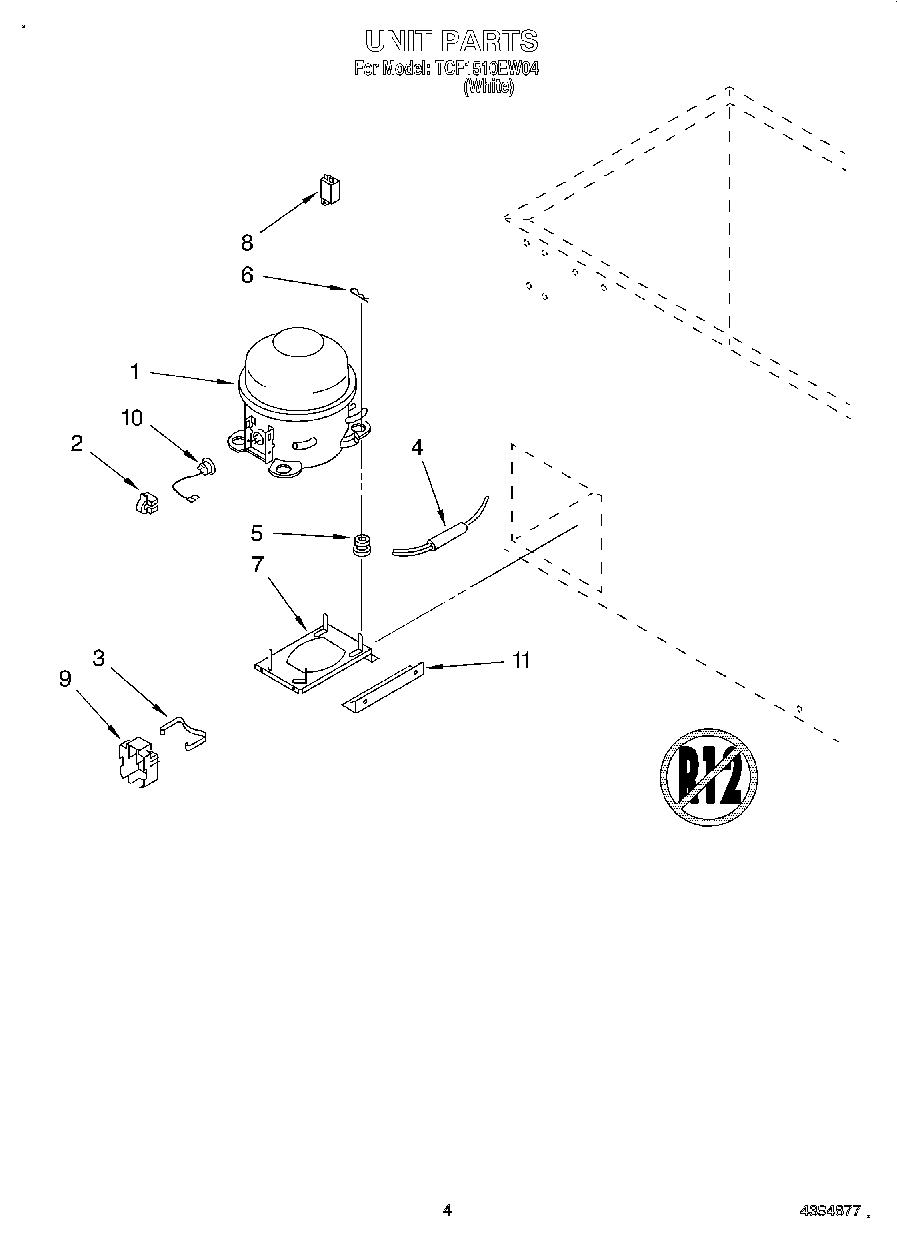

TCF1510EW04 03 – SECTION

TCF1510EW04 03 – SECTION

Written by

in

TCF1510EW04 03 – SECTION

Products

PositionProduct
1W10309994 Whirlpool Refrigerator Compressor
2Relay
3Clip, Cover
4W10843121 Whirlpool Refrigerator Tube
5Grommet, Mounting Compressor
6Clip, Hitch Pin
7Base, Compressor
8WPW10662129 Whirlpool Refrigerator Run Capacitor
9Cover
102183409 Whirlpool Refrigerator Overload
113-81556-001 Whirlpool Brace
