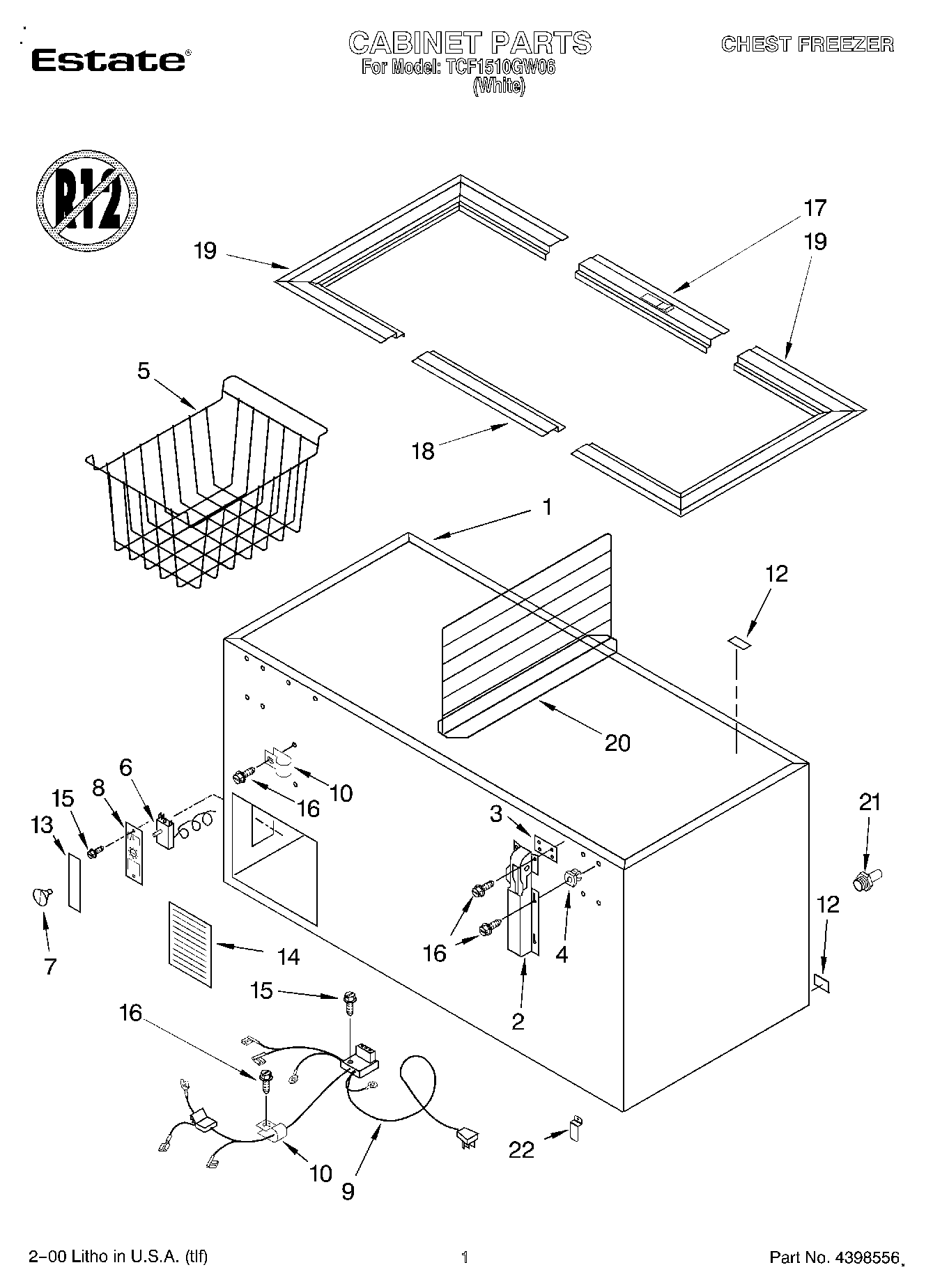

TCF1510GW06 01 – SECTION

Products

Position	Product
	Energy Label
	Literature Parts (Owner`s Manual)
1	Cabinet (Not A Serviceable Part)
2	Hinge, Assembly
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	Wire Basket
6	WP4-35940-001 Whirlpool Refrigerator Thermostat
7	Knob, Thermostat
8	W10682894 Whirlpool Refrigerator Control Box
9	External, Wiring Harness
10	488946 Whirlpool Air Conditioner Clamp
12	Drain, Cap
13	Insert, Control
14	Access Panel
15	3-24004-049 Whirlpool Screw
16	4356491 Whirlpool Refrigerator Screw
17	4-35011-004 Whirlpool Refrigerator Breaker Trim
18	4-35010-004 Whirlpool Breaker Trim
19	W11045300 Whirlpool Refrigerator Trim Bracket
20	Divider
21	W11663505 Whirlpool Hose Adapter
22	Clip, Gasket (Kit Of 60)
22	Clip
22	350942 Whirlpool Spray Paint
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
