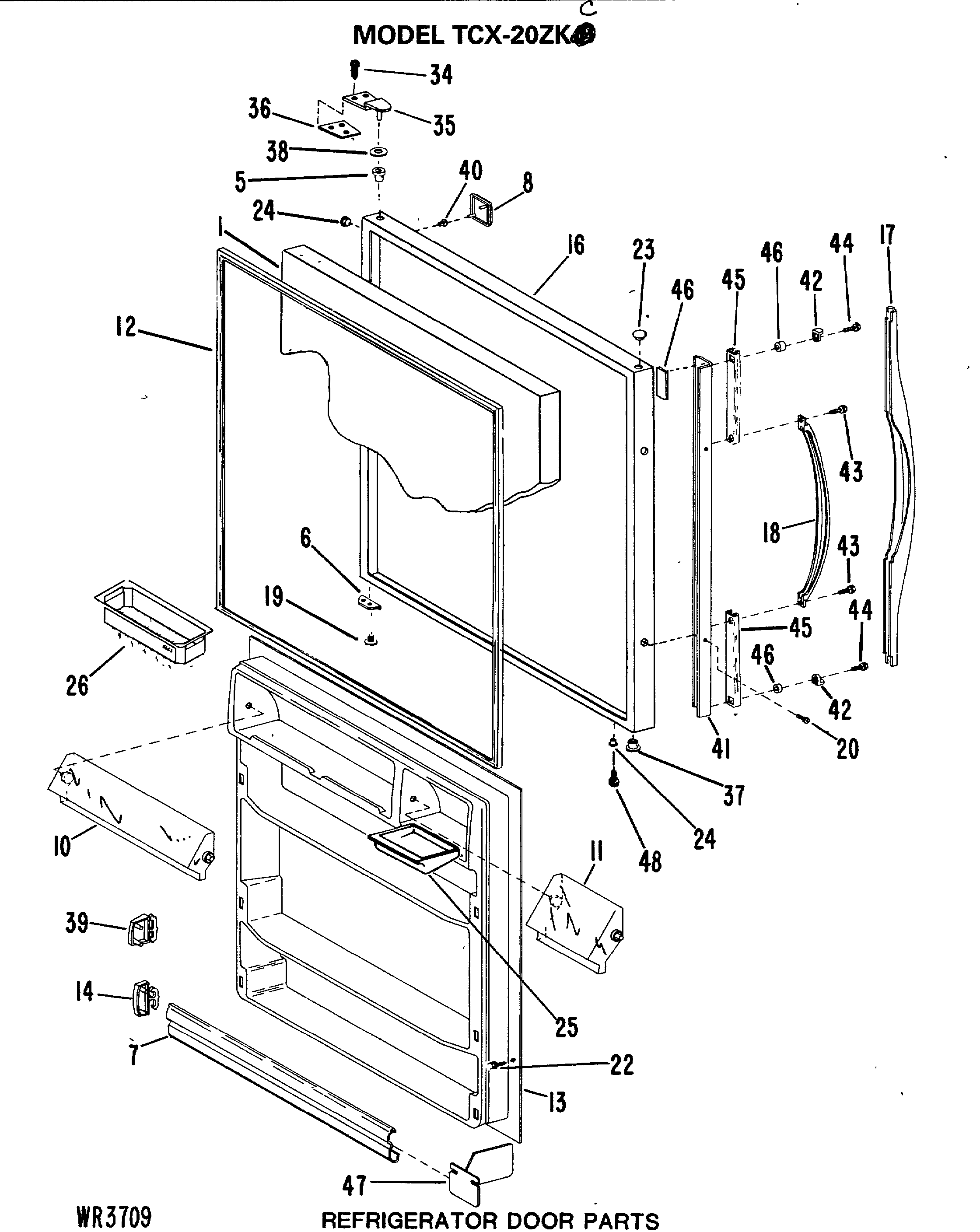

TCX-20ZKC 0

TCX-20ZKC 0

Written by

in

TCX-20ZKC 0

Products

Position	Product
1	GEN WR78X7792
1	GRILLE-TOE BLACK
1	GEN WR78X7794
1	LOWER DOOR PAN (HVST)
1	GEN WR72X5053
1	BAFFLE BACK
5	GEN WR24X5215
5	GEN WR01X5609
5	GEN WR02X7425
5	EVAPORATOR COVER
5	GEN WR30X5114
6	GEN WR02X7412
6	COVER-TEMPERATURE ASM.
6	GEN WR17X6175
6	GEN WR50X5035
7	HEATER,EVAPORATOR
7	GEN WR02X7427
7	TUBE,DRAIN
7	BLADE,FAN
8	SLEEVE,VINYL
8	CONTROL DAMPER
8	GEN WR77X5637
8	SUPPORT,DRAIN PAN
8	GEN WR03X0408
10	GEN WR01X5586
10	LOW SIDE ASSEMBLY
10	GEN WR02X7847
10	GEN WR22X0303
10	GEN WR02X7403
10	SCREW,SM LG.HOUSING
11	CLIP
11	PLUG BUTTON
11	HOUSING, REFRGRATR LIGHT
11	GEN WR22X0305
12	INSULATION, LIGHT HSG.
12	GEN WR24X5214
12	BRACKET,CONDENSER FAN
12	GEN WR17X6150
12	GEN WR02X7420
12	GEN WR01X5596
13	COVER LIGHT SWITCH
13	GEN WR77X5639
13	CLIP,OVERLOAD
13	BASKET FREEZER
14	CLAMP-TERMINAL COVER
14	GEN WR02X7233
14	GEN WR13X5186
14	GEN WR82X0177
14	GEN WR17X6160
14	GEN WR17X6151
16	GEN WR14X5147
16	GEN WR01X5577
16	GEN WR07X5138
16	GEN WR01X5580
16	GEN WR78X7791
16	GEN WR78X7790
16	GEN WR78X7789
17	GEN WR01X5597
17	WR86X25269 GE Refrigerator R134 Dryer
17	DOOR HANDLE
18	MOTOR,CONDENSER
18	WE02X10011 GE Screw
18	GEN WR12X0317
18	GEN WR02X7408
18	TRIM, SHELF
19	TRAY,DRIP
19	BRACKET,ROLLER
19	SHIM,BOTTOM HINGE
19	GEN WR17X6153
19	WR9X502 GE Refrigerator Defrost Timer
20	GEN WR01X5579
20	GEN WR13X5188
20	GEN WR32X5297
20	HI SIDE ASM
20	GEN WR72X5052
20	GEN WR02X7449
20	REFRIGERANT
20	GEN WR01X5598
22	GEN WR02X7430
22	SCREW
22	GEN WR02X7429
22	CONDENSER FAN SHROUD
22	GEN WR02X7428
22	SHIM, TOP
22	SCREW-TC SIDE PLATE
23	GEN WR01X5578
23	PIN,ROLLER
23	BRCKT,CNTRL ASM W/SWITCH
23	GEN WR02X7415
23	GEN WR02X7416
23	GEN WR02X7417
23	BRACKET TIMER
23	HEATER REF.BTM.115V-7W
23	GEN WR17X6154
24	GEN WR02X7405
24	GEN WR01X5612
24	SHIM HINGE BTM.
