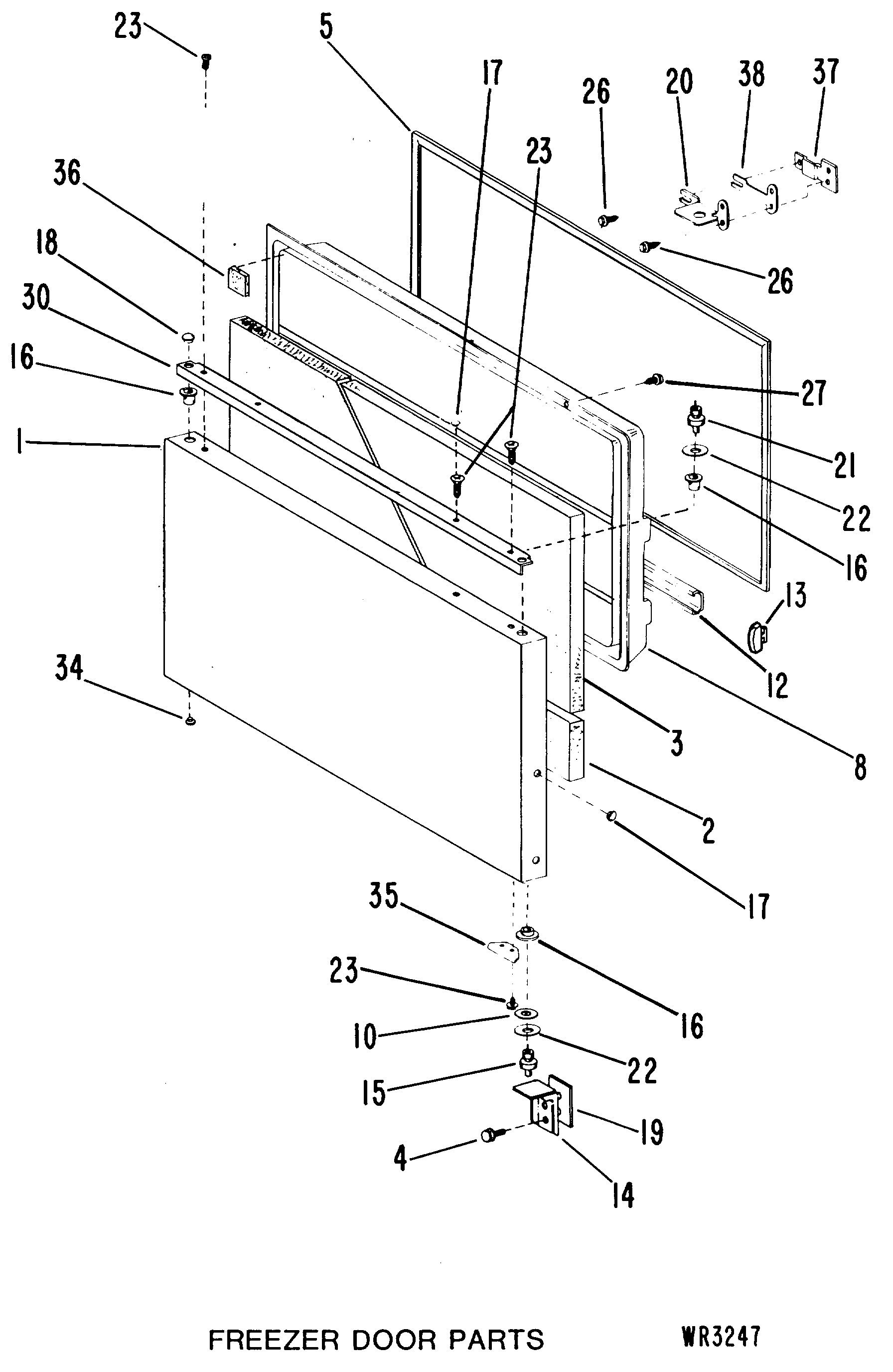

TCX20ZGC FREEZER DOOR PARTS – Aparts

TCX20ZGC FREEZER DOOR PARTS

Products

Position	Product
1	GEN WR78X7792
1	GEN WR78X7794
1	LOWER DOOR PAN (HVST)
2	GEN WR82X0177
3	GEN WR82X5044
4	GEN WR01X5573
5	GEN WR24X5215
8	GEN WR77X5637
10	GEN WR02X7403
12	GEN WR17X6150
13	GEN WR02X7233
14	GEN WR13X5186
15	GEN WR13X5187
16	GEN WR01X5577
17	GEN WR02X7405
17	GEN WR02X7406
17	GEN WR02X7407
18	GEN WR02X7408
19	SHIM,BOTTOM HINGE
20	GEN WR13X5188
21	GEN WR13X5189
22	SHIM, TOP
23	GEN WR01X5578
26	GEN WR01X5575
27	SCREW
30	GEN WR12X5174
34	BUSHING, BOTTOM
35	GEN WR02X7412
36	GEN WR02X7413
38	GEN WR02X7414
