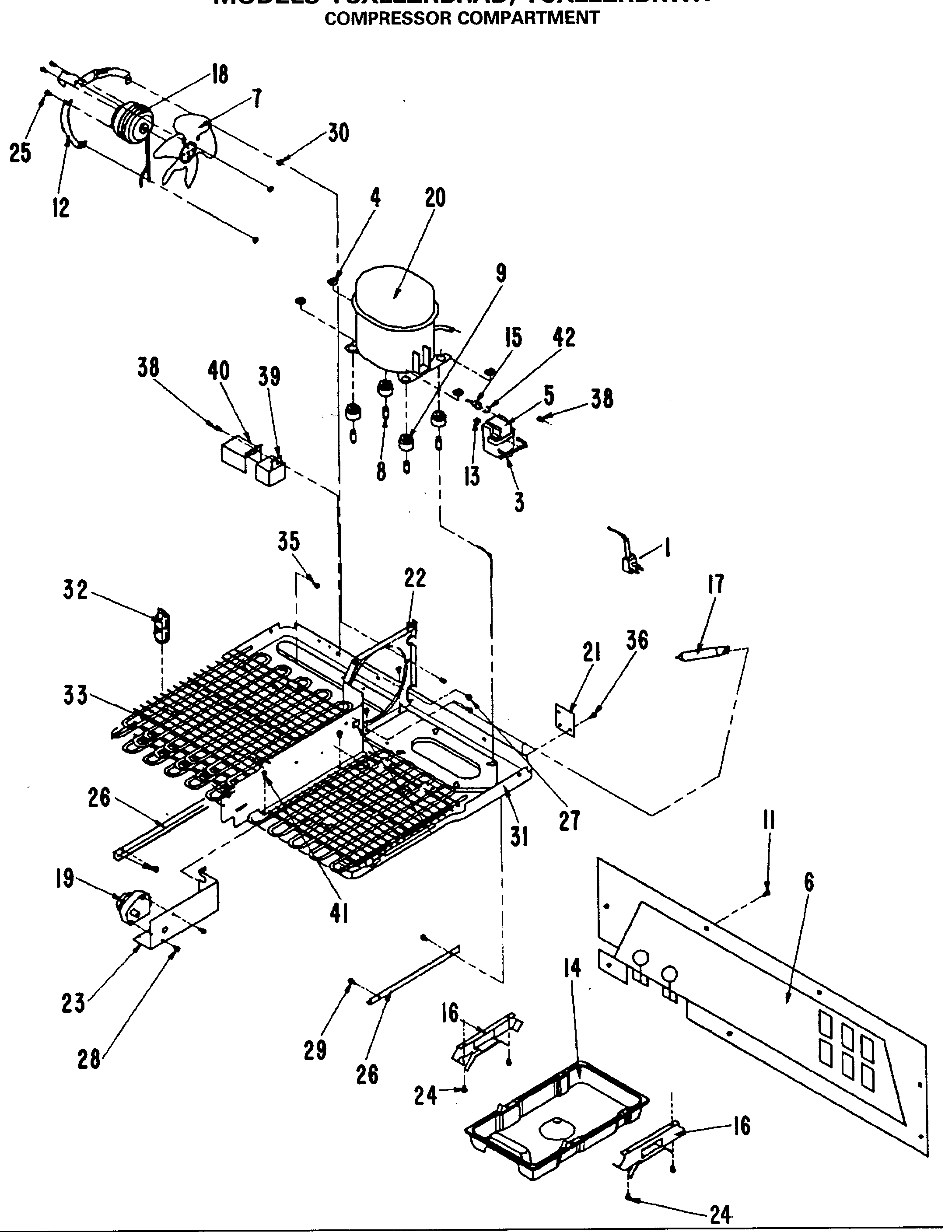

TCX22ZRBRAD COMPRESSOR COMPARTMENT

Products

Position	Product
1	WR23X10300 GE Refrigerator Power Cord Assembly
6	BAFFLE BACK
7	BLADE,FAN
8	SLEEVE,VINYL
9	GEN WR02X7442
11	GEN WR01X5609
12	BRACKET,CONDENSER FAN
13	GEN WR07X5138
14	GEN WR17X6310
15	GUARDETTE
16	SUPPORT,DRAIN PAN
17	WR86X25269 GE Refrigerator R134 Dryer
18	MOTOR,CONDENSER
19	WR9X502 GE Refrigerator Defrost Timer
20	COMPRESSOR
21	GEN WR02X8440
22	CONDENSER FAN SHROUD
23	BRACKET TIMER
25	GEN WR01X5602
26	GEN WR17X3078
27	GEN WR01X5603
28	SCREW
30	UNKNOWN
31	GEN WR32X1168
32	UNKNOWN
33	GEN WR84X0102
35	UNKNOWN
36	WR1X2130 GE Refrigerator Screw
38	GEN WR01X1810
40	GEN WR02X7511
41	SCREW,SM LG.HOUSING
42	CLIP,OVERLOAD
