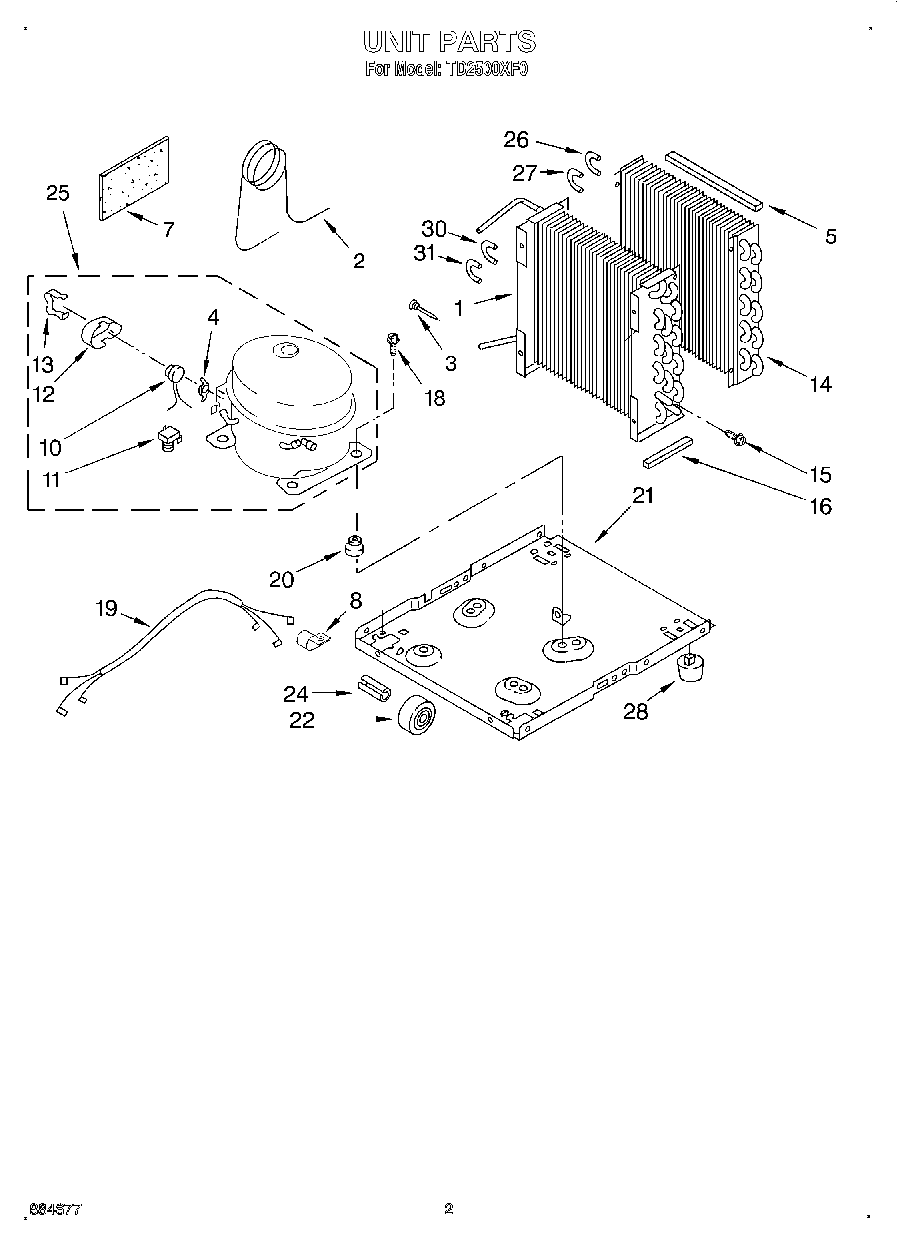

TD2500XF0 02 – SECTION

Products

PositionProduct
1WPL 1167544
2Tube, Restrictor (36.0“ Length)
3WP1162526 Whirlpool Air Conditioner Strainer
4Spring, Overload
5Seal, Evaporator Top
7WPL 1162650
8Relief, Strain
10WPL 1164775
11Relay
12Cover, Terminal
13Retainer, Cover
14WPL 1168184
15WP489069 Whirlpool Compactor Screw
16Seal
18Bolt, 1/4-28 x 1“ (4)
19Harness, Wire
20876811 Whirlpool Grommet
21Base
22Roller (2)
24Pin, Roller (2)
25WPL 1164773
26Bend, Return (1)
27Bend, Return Evaporator (11)
28Glide (2)
30Bend, Return Condenser (4)
31Bend, Return Condenser (10)
