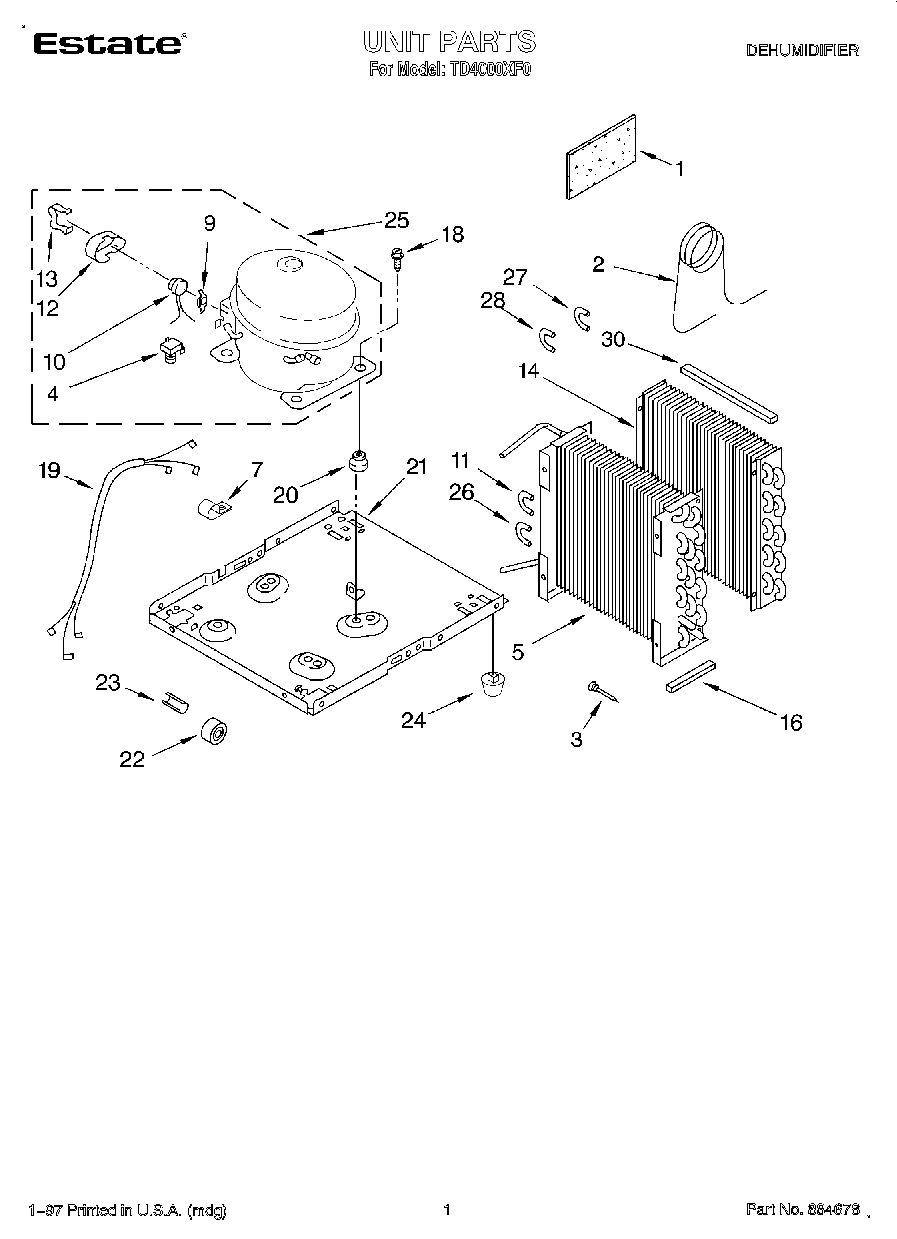

TD4000XF0 01 – SECTION

Products

Position	Product
	Use & Care Guide Manual
	Diagram, Wiring
	Sheet, Tech
1	WPL 1162650
2	Tube, Restrictor (36.0“ Length)
3	WP1162526 Whirlpool Air Conditioner Strainer
4	Relay
5	WPL 1167544
7	Relief, Strain
9	Spring, Overload
10	Overload
11	Bend, Return Condenser (4)
12	Cover, Terminal
13	Retainer, Cover
14	WPL 1168186
16	Seal
18	Bolt, 1/4-28 x 1“ (4)
19	Harness, Wire
20	876811 Whirlpool Grommet
21	Base
22	Roller (2)
23	Pin, Roller (2)
24	Glide (2)
25	Compressor (Complete Assembly)
26	Bend, Return Condenser (10)
27	Bend, Return Evaporator (11)
28	Bend, Return (1)
30	Seal, Evaporator Top
