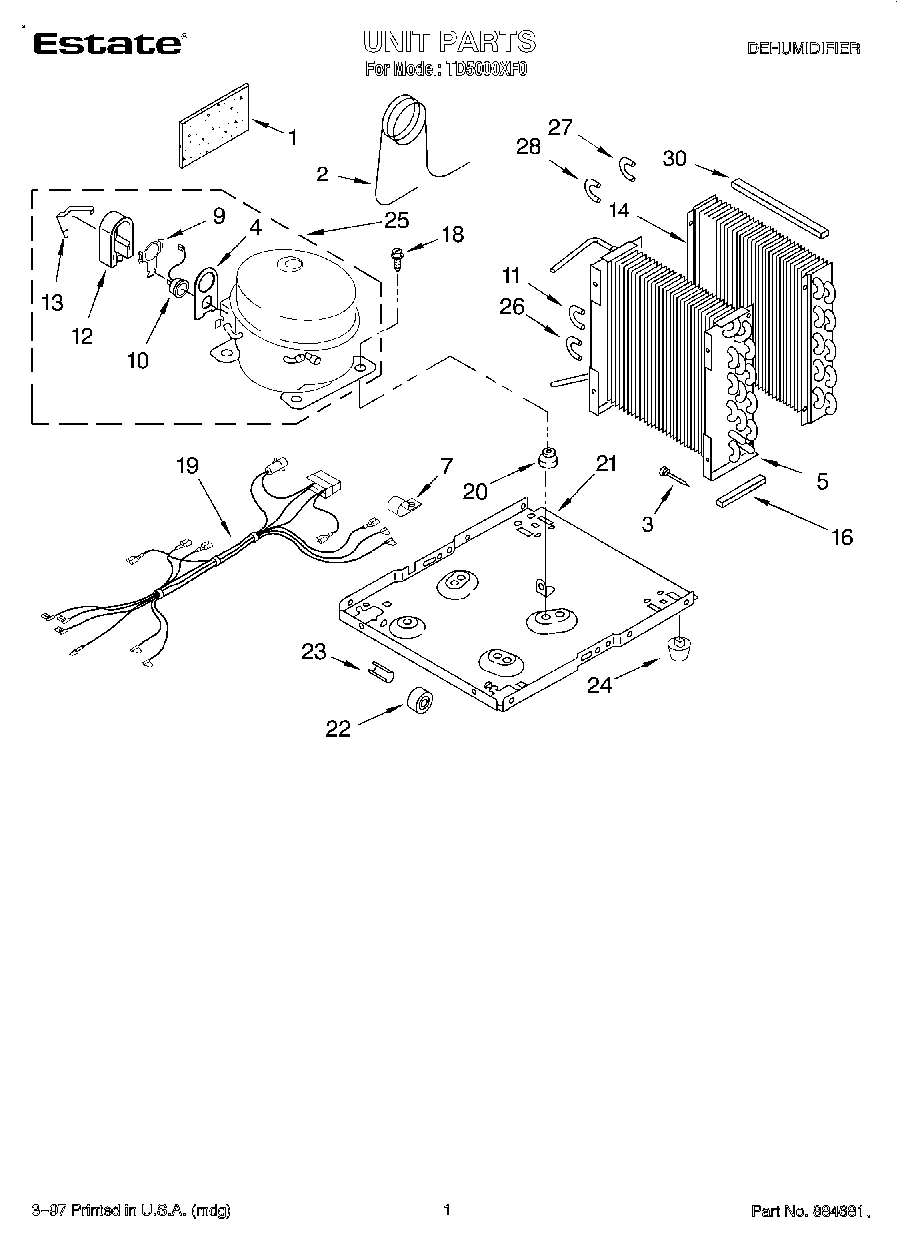

TD5000XF0 01 – SECTION

Products

PositionProduct
Use & Care Guide Manual
WPL LIT1166026
WPL LIT1166025
1WPL 1162650
2Tube, Restrictor (36.0“ Length)
3WP1162526 Whirlpool Air Conditioner Strainer
4WPL 1167017
5WPL 1167544
7Relief, Strain
9WPL 1167008
10WPL 1167004
11Bend, Return Condenser (4)
12WPL 1167005
13WPL 1167006
14WPL 1168184
16Seal
18Bolt, 1/4-28 x 1“ (4)
19WPL 1167026
20876811 Whirlpool Grommet
21Base
22Roller (2)
23Pin, Roller (2)
24Glide (2)
25WPL 1167003
26Bend, Return Condenser (10)
27Bend, Return Evaporator (11)
28Bend, Return (1)
30Seal, Evaporator Top
