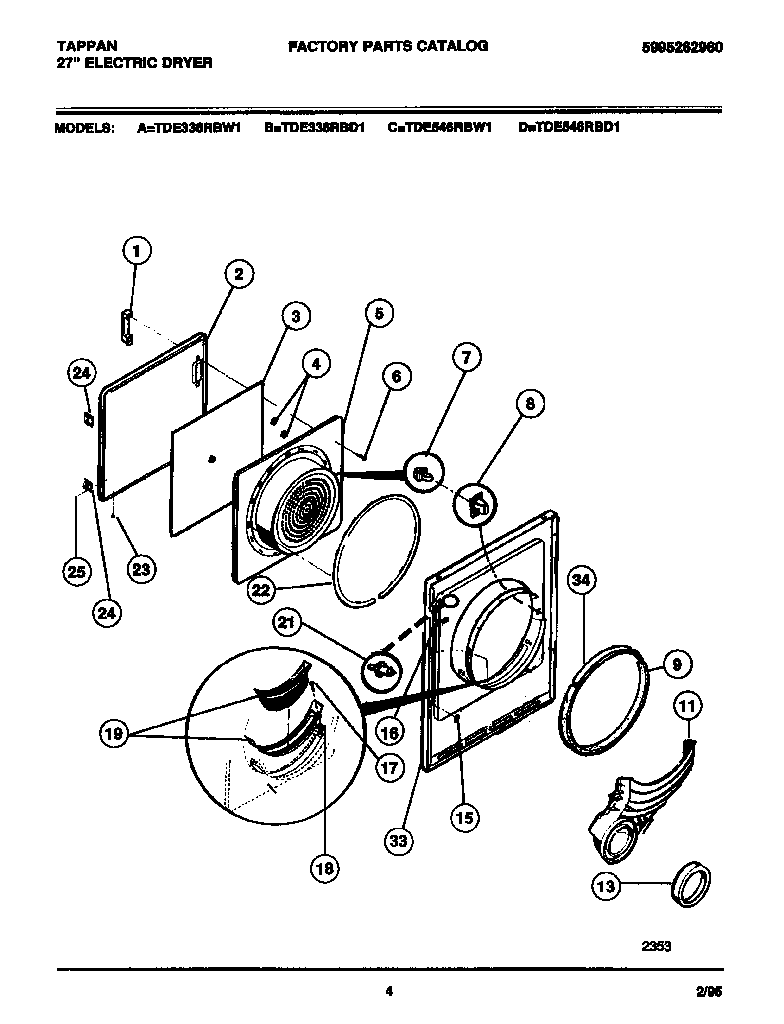

TDE336RBD1 03 – DOOR, FRONT PANEL, LINT FILTER

TDE336RBD1 03 – DOOR, FRONT PANEL, LINT FILTER

Written by

in

TDE336RBD1 03 – DOOR, FRONT PANEL, LINT FILTER

Products

PositionProduct
*71042WCI 131397001
1WCI 131194200
2WCI 5303299162
3SHIELD, HEAT
4WCI 3201205
5PANEL-I.D. ALMD
6WCI 5303281051
75303207102 Frigidaire Door Strike
8131658800 Frigidaire Dryer Door Catch Repair Kit
9WCI 5303281049
11WCI 5303300403
13134417000 Frigidaire Seal
15CLIP GUIDE (4)
16WCI 131063700
17131420300 Frigidaire Screw
18CLIP
19TRAP-LINT
21SWITCH-DOOR
22GASKET, DOOR
23SCREW (8)
24HINGE, DOOR (2)
25134156200 Frigidaire Screw
33PANEL, FRONT, ALMOND
345303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
