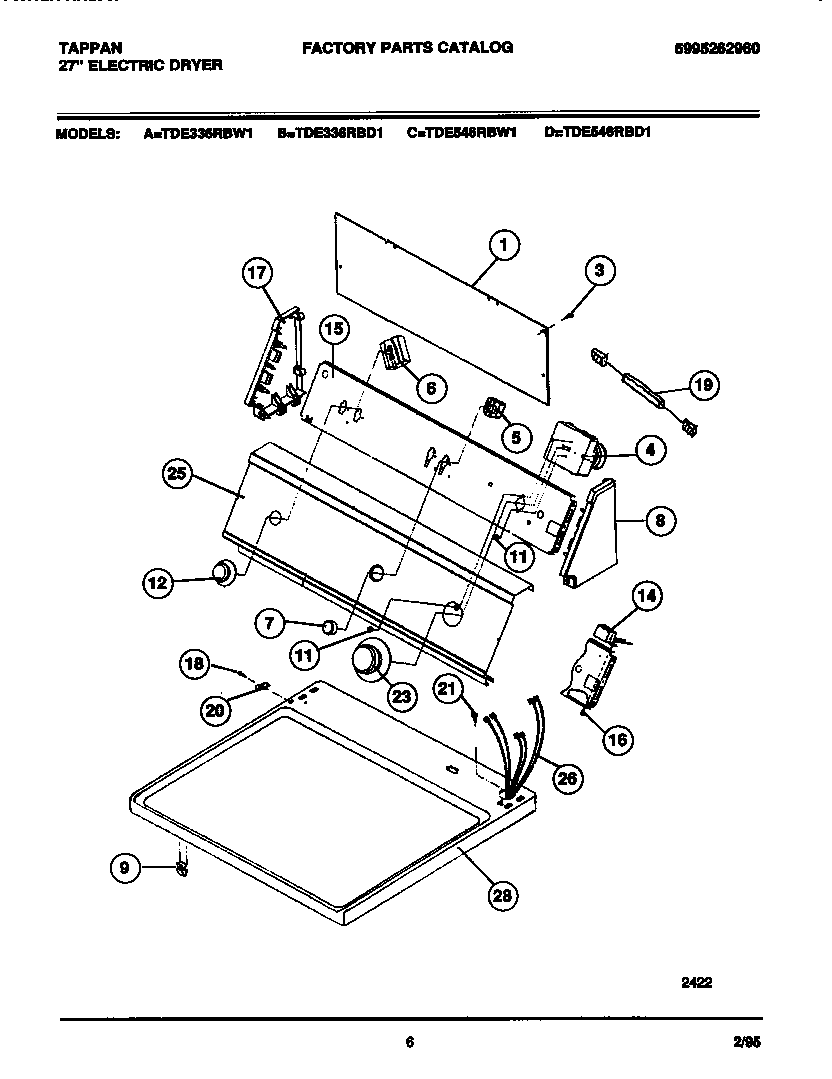

TDE336RBW1 04 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1COVER-BACK
3131205100 Frigidaire Screw
4131062300 Frigidaire Timer
5WCI 131048000
7KNOB-START SWITCH, BLACK
8WCI 5303291352
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
15WCI 131297306
17WCI 5303291344
18WCI 5303289526
19RESISTOR, 3.0K
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23WCI 131030800
25WCI 131289000
26WCI 131235100
28WCI 131130402
