TDE336RBW2 04 – CONTROLS/TOP PANEL

TDE336RBW2 04 – CONTROLS/TOP PANEL

Written by

in

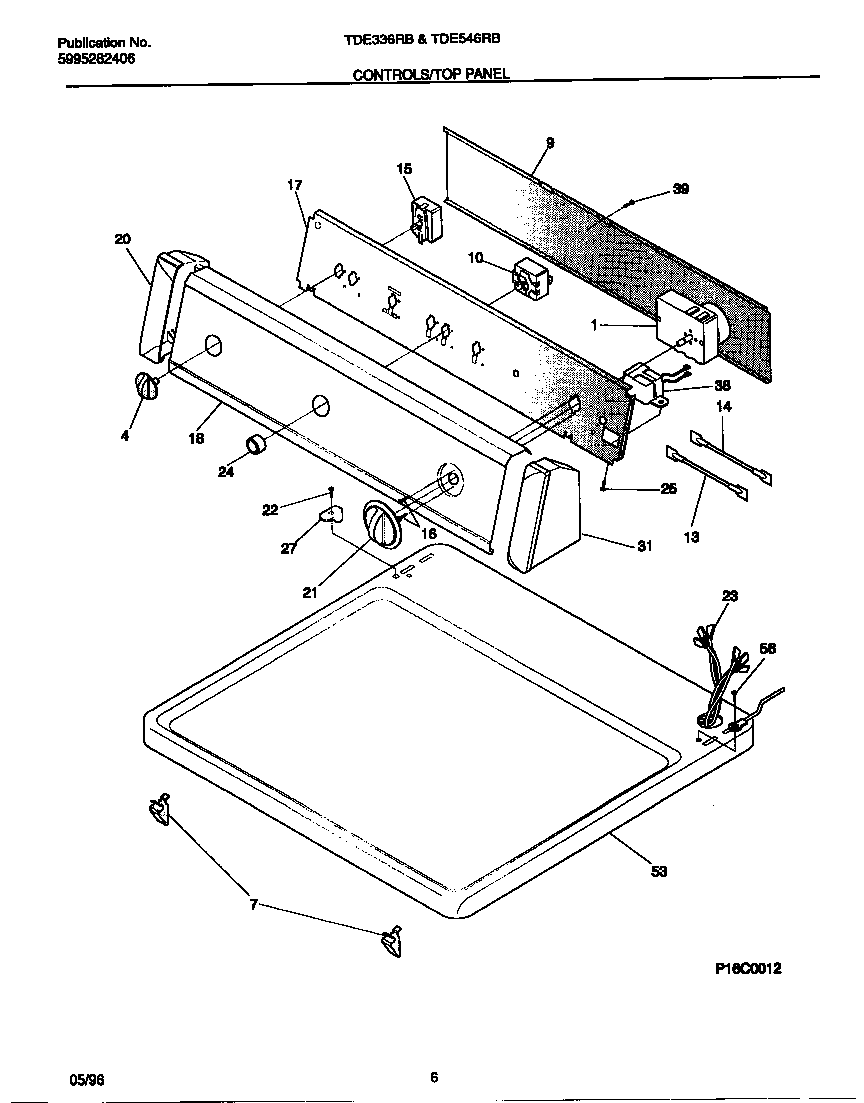

TDE336RBW2 04 – CONTROLS/TOP PANEL

Products

PositionProduct
*939625303303590 Frigidaire Dryer 4.0" Cable Tie
1131062300 Frigidaire Timer
73205821 Frigidaire Clip
9COVER-BACK
10WCI 131048000
13RESISTOR, 3.0K
14RESISTOR-POWER, 4.4K
16218359202 Frigidaire Refrigerator Screw
17WCI 131297306
18WCI 131289000
20WCI 5303291344
21WCI 131030800
22WCI 131266300
23WCI 131568500
24KNOB-START SWITCH, BLACK
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 5303291352
39131205100 Frigidaire Screw
53WCI 131130402
56131243800 Frigidaire Screw
