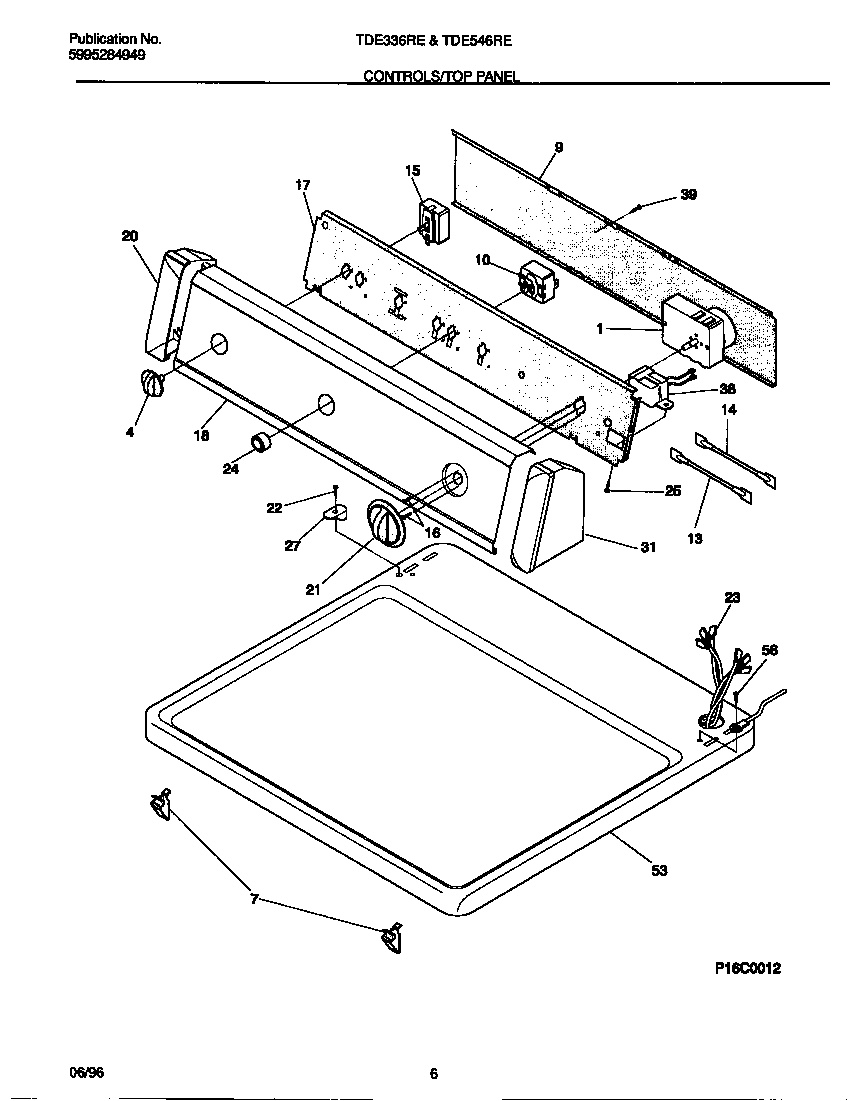

TDE546REW0 04 – CONTROLS/TOP PANEL

Products

Position	Product
*37202	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	131719100 Frigidaire Timer Assembly
4	WCI 131032500
7	3205821 Frigidaire Clip
9	COVER-BACK
10	WCI 131048000
14	RESISTOR-POWER, 4.4K
15	WCI 131048100
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131297306
18	WCI 131289100
20	WCI 5303291344
21	WCI 131030800
22	WCI 131266300
23	HARNESS
24	KNOB-START SWITCH, BLACK
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 5303291352
38	WCI 5303210285
39	131205100 Frigidaire Screw
53	WCI 131391618
56	131243800 Frigidaire Screw
