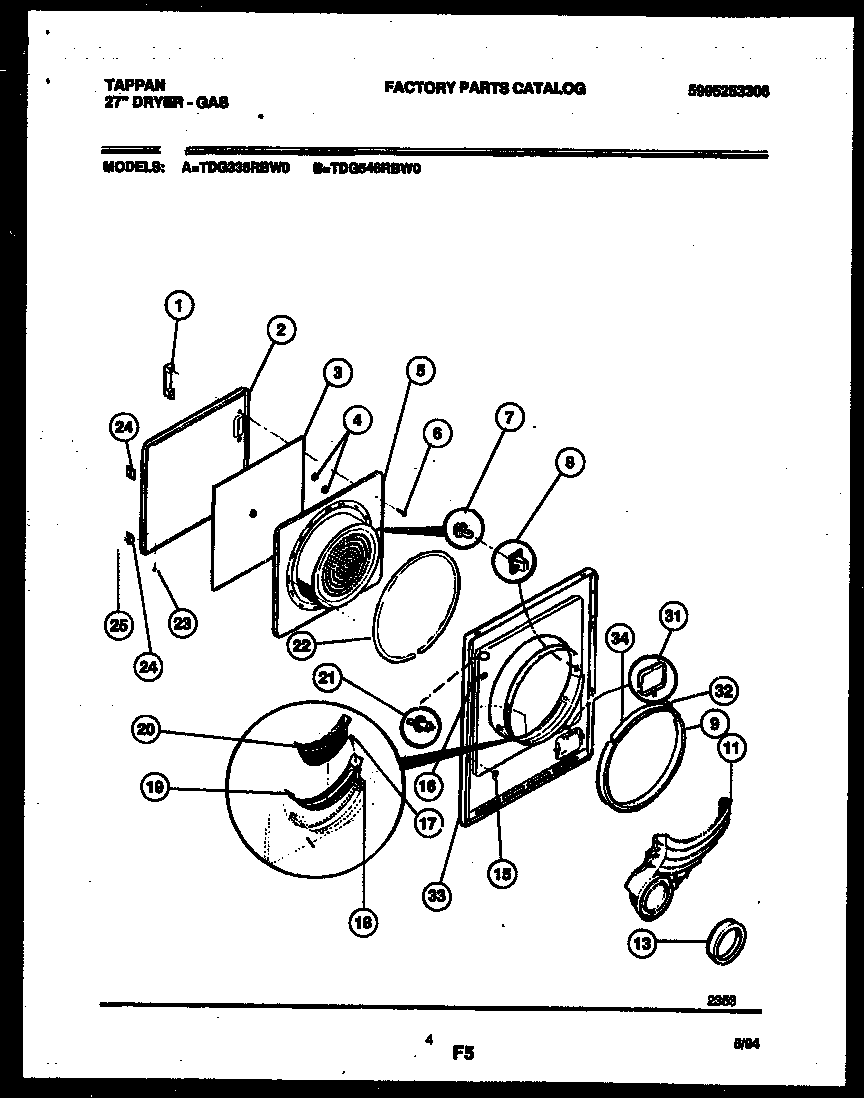

TDG336RBW0 03 – DOOR PARTS

TDG336RBW0 03 – DOOR PARTS

Written by

in

TDG336RBW0 03 – DOOR PARTS

Products

PositionProduct
1HANDLE-DOOR-WHITE
2PANEL-OUTER DOOR, WHITE
3SHIELD, HEAT
4WCI 3201205
5PANEL – ID WHITE
6WCI 5303281051
75303207102 Frigidaire Door Strike
8131658800 Frigidaire Dryer Door Catch Repair Kit
9WCI 5303281049
11WCI 5303300403
13134417000 Frigidaire Seal
15CLIP GUIDE (4)
16WCI 131063700
17131420300 Frigidaire Screw
18CLIP
20TRAP-LINT
21SWITCH-DOOR
22GASKET, DOOR
24HINGE, DOOR (2)
25SCREW (8)
31DOOR-ACCESS WHITE
325303300265 Frigidaire Oven Screw
33PANEL-FRONT WHITE
345303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
