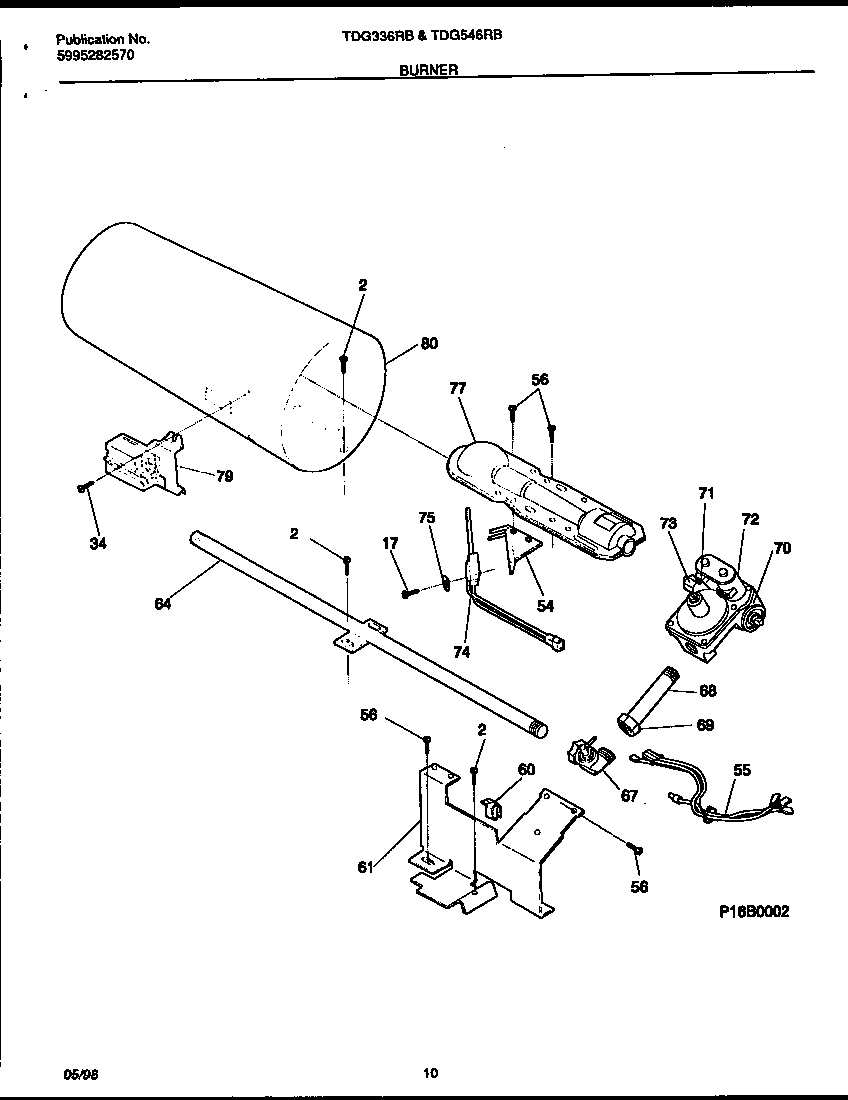

TDG546RBW2 05 – BURNER

TDG546RBW2 05 – BURNER

Written by

in

TDG546RBW2 05 – BURNER

Products

PositionProduct
*82043LP GAS CONV KIT
2131168200 Frigidaire Dryer Screw
17131420300 Frigidaire Screw
34131243700 Frigidaire Screw
42131205300 Frigidaire Screw
54WCI 5303281149
55HARNESS
56131243800 Frigidaire Screw
60CLIP
61WCI 5303281145
64WCI 08015271
67VALVE-SHUT OFF
68CONNECTION-UNION MALE
69NUT-HEX UNION
70WCI 5303281147
715303931775 Frigidaire Dryer Coil Kit
73ORIFICE (NATURAL GAS) (1)
745303937186 Frigidaire Dryer Flat Igniter Assembly
755300809968 Frigidaire Dishwasher P-1 Washer
77134264900 Frigidaire Burner
795303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80TUBE ASSY BURNER
