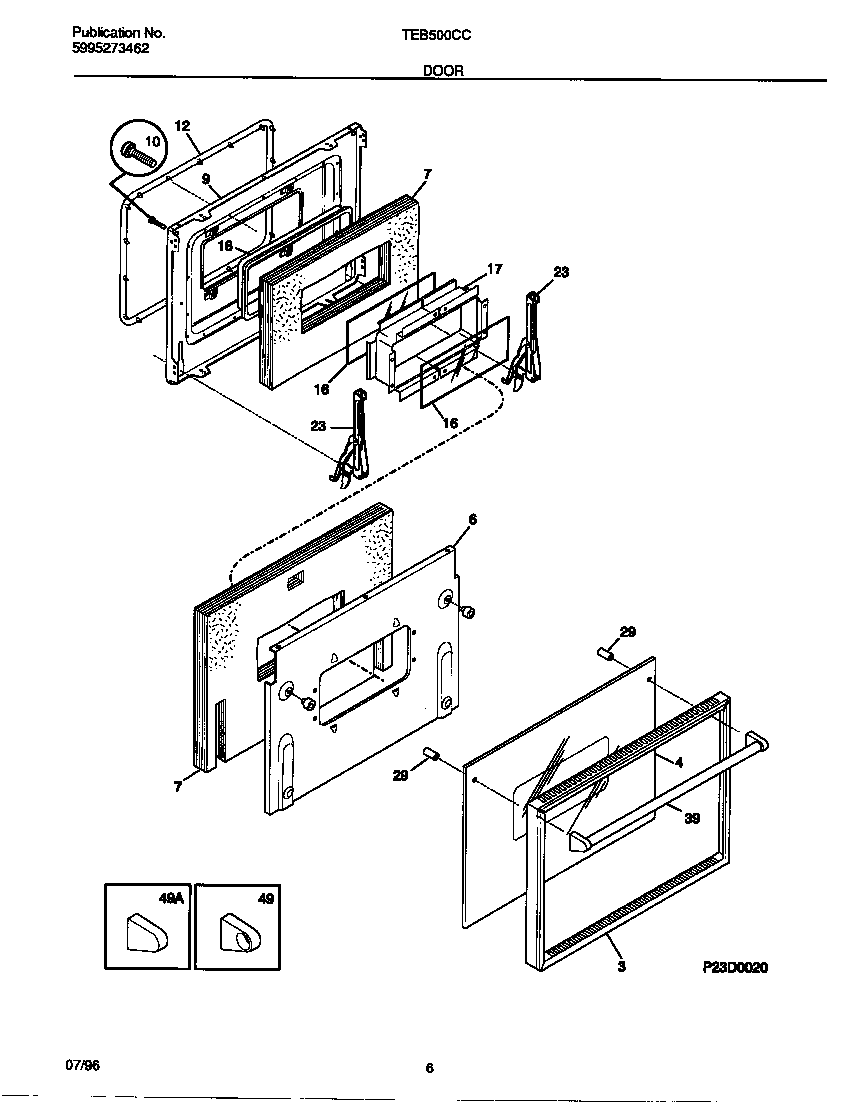

TEB500CCB1 04 – DOOR

TEB500CCB1 04 – DOOR

Written by

in

TEB500CCB1 04 – DOOR

Products

PositionProduct
*35729Plug,button
*35728WCI 5303300414
*35732Foam seal,(3)
*357305303307980 Frigidaire Oven Screw
*357315303308456 Frigidaire Oven Screw
3WCI 5303212560
4GLASS-OVEN DOOR, BLACK, OUTER
6WCI 5303210005
7WCI 5303308470
9LINER-OVEN DOOR
10WCI 5303316748
12WCI 5303316768
16GLASS-OVEN DOOR, HEAT BARRIER
17SPACER-GLASS
18SEAL-ROPE
23HINGE-OVEN DOOR, LOWER
29SPACER-HANDLE MTG, (2)
39WCI 318040201
49WCI 5303307193
49WCI 5303307192
