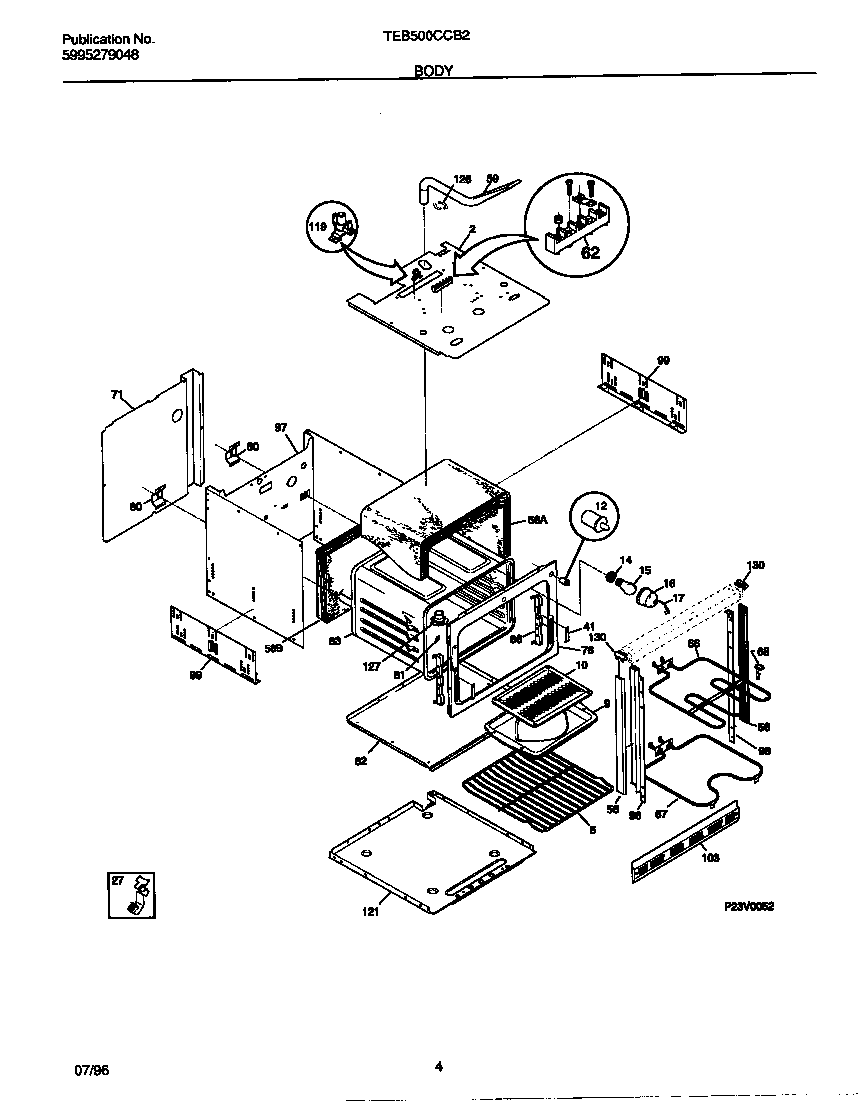

TEB500CCB2 03 – BODY

TEB500CCB2 03 – BODY

Written by

in

TEB500CCB2 03 – BODY

Products

PositionProduct
*29645COVER-CAPILLARY
*2964208002868 Frigidaire 0 Screw Assembly
*296435304500008 Frigidaire Oven Screw
*296445303211311 Frigidaire Refrigerator Screw
*29646WCI 5303316993
1SHIELD-WIRE
2SHIELD-OVEN TOP
6318345216 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12WCI 5301314211
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 3019063
56TRIM-BODYSIDE, BLACK, (2)
56WCI 5303318690
58INSULATION, OVEN WRAPPER
58INSULATION, OVEN BACK
59WCI 3016301
625304409888 Frigidaire Oven Terminal Block with Hardware
62SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
76WCI 318056120
80WCI 5303301261
81WCI 3201632
82SHIELD, OVEN BOTTOM
83WCI 318089500
86WCI 3201631
97WCI 318066603
98WCI 318029300
98WCI 318029301
99318284201 Frigidaire PANEL
103WCI 5303316735
119SWITCH-THERMAL
121WCI 5303305036
126Clip,insulator
127TUBE-OVEN VENT
130WCI 5303271107
130WCI 5303316992
130WCI 5303271106
