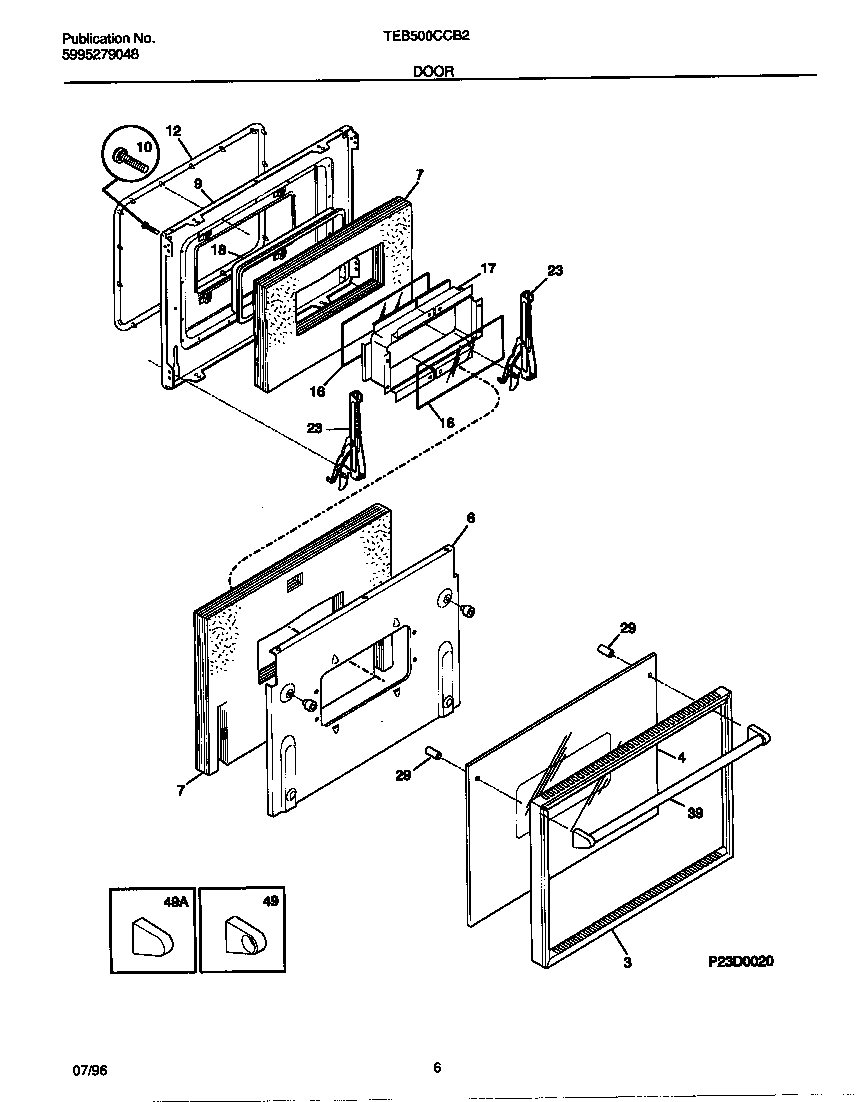

TEB500CCB2 04 – DOOR

Products

PositionProduct
*29647Plug,button
*29648WCI 5303300414
*29651Foam seal,(3)
*296495303307980 Frigidaire Oven Screw
*296505303308456 Frigidaire Oven Screw
3WCI 5303212560
4GLASS-OVEN DOOR, BLACK, OUTER
6WCI 5303210005
7WCI 5303308470
9WCI 318048400
10WCI 5303316748
12WCI 5303316768
16GLASS-OVEN DOOR, HEAT BARRIER
17SPACER-GLASS
18SEAL-ROPE
23HINGE-OVEN DOOR, LOWER
29SPACER-HANDLE MTG, (2)
39WCI 318040201
49WCI 5303307193
49WCI 5303307192
