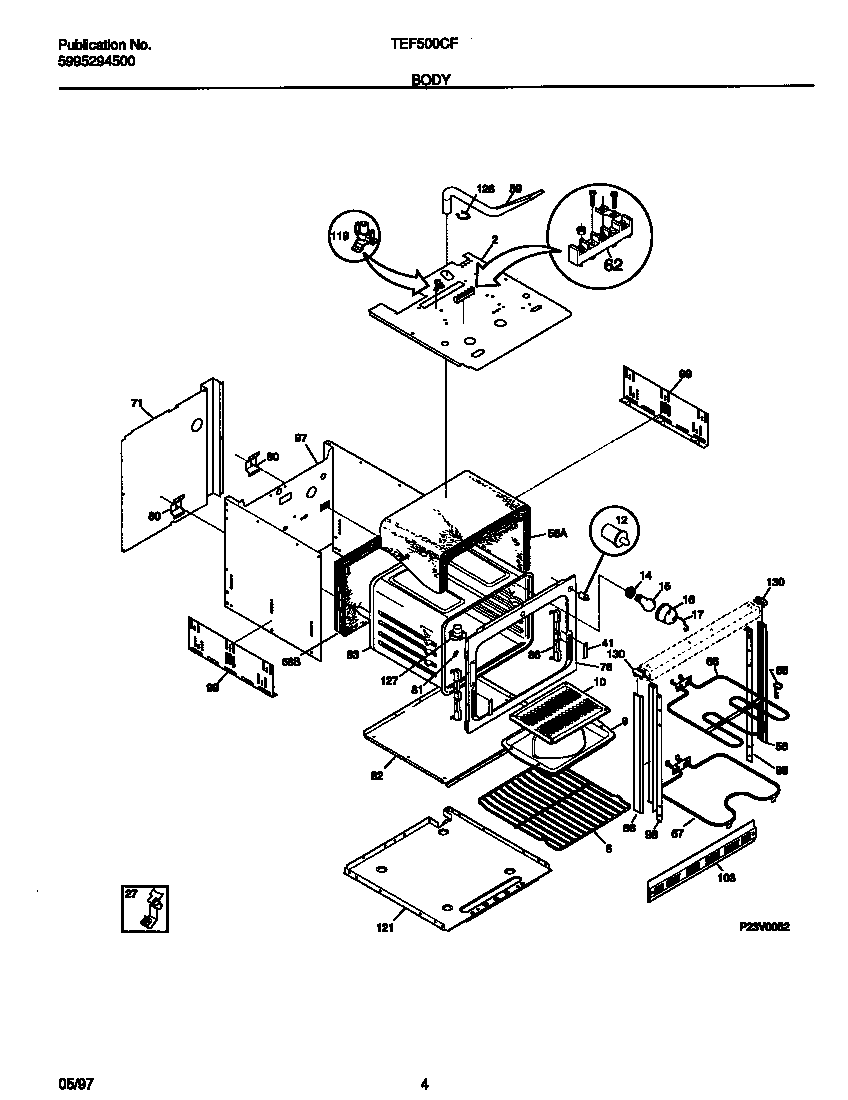

TEB500CFB1 03 – BODY

TEB500CFB1 03 – BODY

Written by

in

TEB500CFB1 03 – BODY

Products

PositionProduct
*809245304500008 Frigidaire Oven Screw
*80923RETAINER PLATE
*809265303211311 Frigidaire Refrigerator Screw
*80927COVER-CAPILLARY
*80928WCI 5303319292
*8092508002868 Frigidaire 0 Screw Assembly
2SHIELD-OVEN TOP
6318345216 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12WCI 5301314211
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 3019063
56WCI 318145502
56WCI 5303320422
58INSULATION, OVEN BACK
58INSULATION, OVEN WRAPPER
59WCI 318072509
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71SHIELD-WIRE
76WCI 318056120
80WCI 5303301261
81WCI 3201632
82SHIELD, OVEN BOTTOM
83WCI 318089506
86WCI 3201631
97WCI 318066603
98WCI 318029301
98WCI 318029300
99318284201 Frigidaire PANEL
103WCI 5303316735
119SWITCH-THERMAL
121WCI 318145001
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
130WCI 5303271107
130WCI 5303271106
130WCI 5303316992
