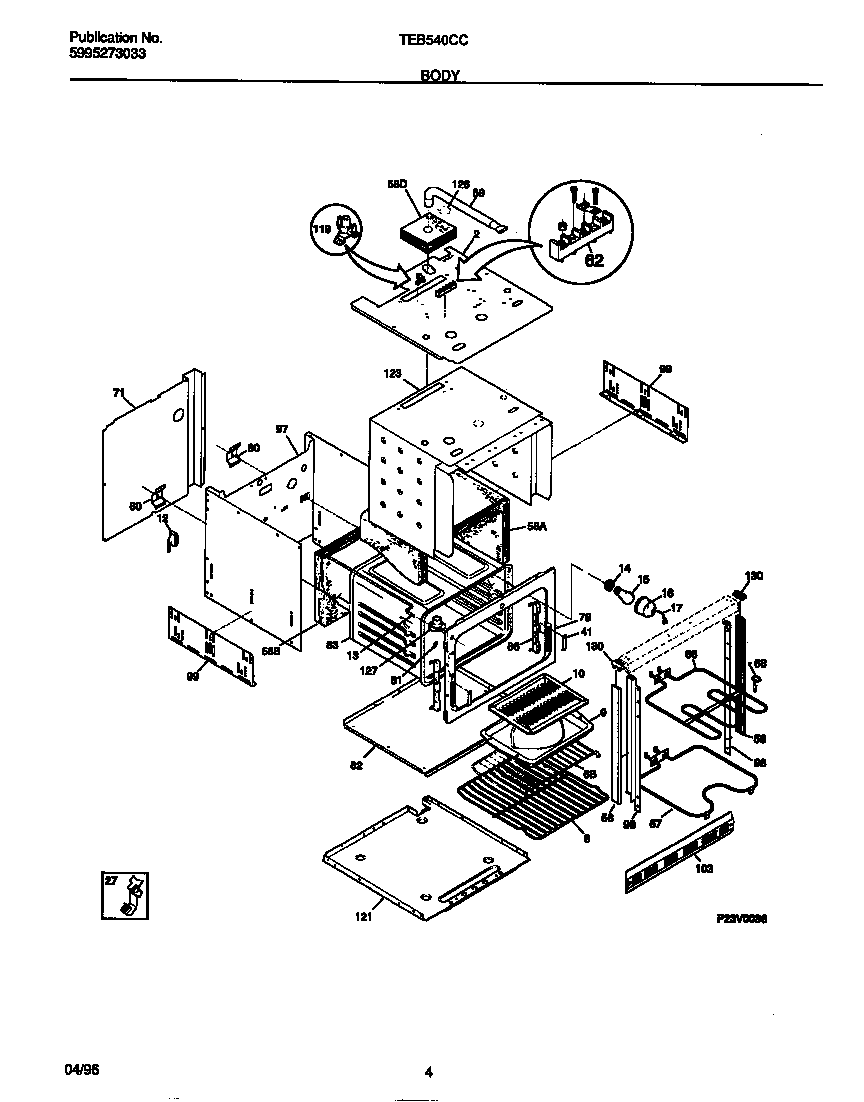

TEB540CCB1 03 – BODY

TEB540CCB1 03 – BODY

Written by

in

TEB540CCB1 03 – BODY

Products

PositionProduct
*66287WCI 5303319292
*662835304500008 Frigidaire Oven Screw
*66288WCI 5303316993
*662855303211311 Frigidaire Refrigerator Screw
*66286WCI 5303318690
*6628408002868 Frigidaire 0 Screw Assembly
2SHIELD-OVEN TOP
6318345216 Frigidaire Oven Rack
9WCI 5303310521
10WCI 5303310520
12SWITCH-DOOR
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
27CABLE CLIP (2)
41WCI 3019063
56TRIM-BODYSIDE, BLACK, (2)
58INSULATION, OVEN WRAPPER
58INSULATION, OVEN BACK
59WCI 3016301
62SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71SHIELD-WIRE
76WCI 5303296866
80WCI 5303301261
81WCI 3201632
82SHIELD, OVEN BOTTOM
83WCI 5303296957
86WCI 3201631
97WCI 318066603
98WCI 3016280
98WCI 3016279
99318284201 Frigidaire PANEL
103WCI 5303316735
119SWITCH-THERMAL
121WCI 5303305036
127TUBE-OVEN VENT
130WCI 5303271107
130WCI 5303271106
