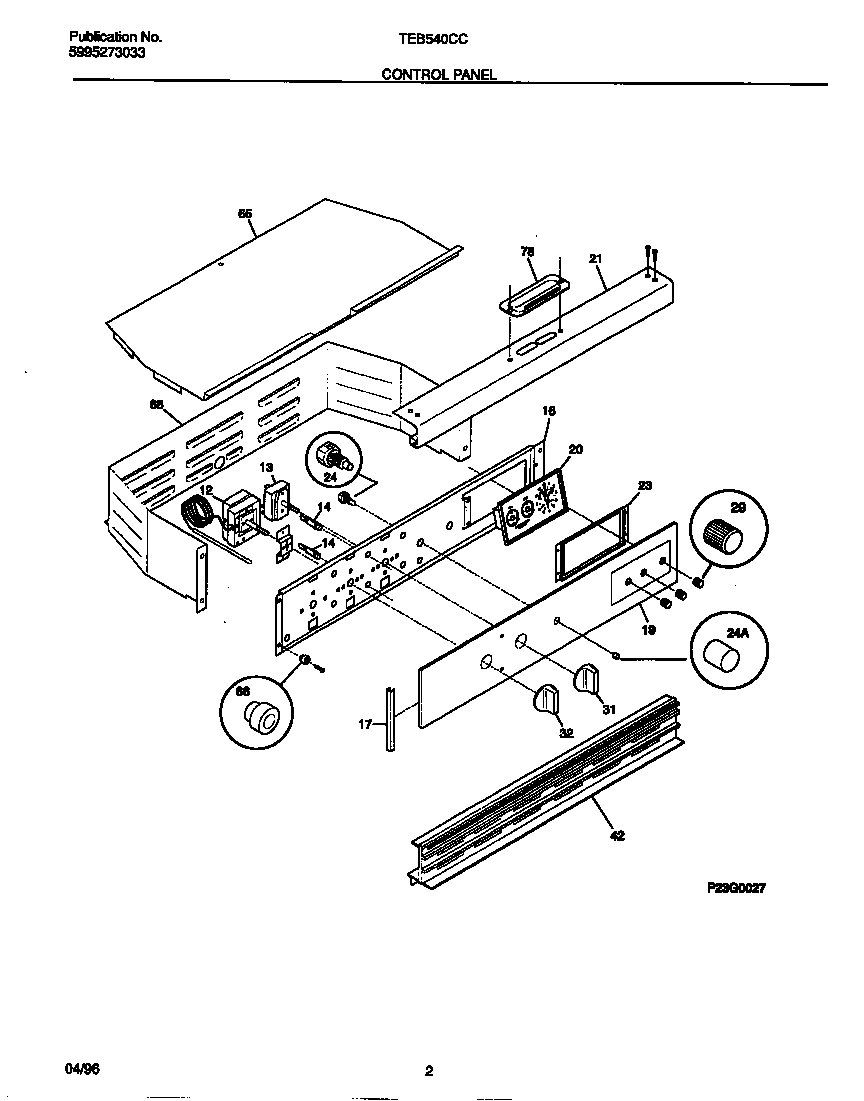

TEB540CCBA 02 – CONTROL PANEL

TEB540CCBA 02 – CONTROL PANEL

Written by

in

TEB540CCBA 02 – CONTROL PANEL

Products

PositionProduct
*66281WCI 5303300414
*66282WCI 5303302303
*66280SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
12WCI 318058600
13WCI 318057600
14WCI 318044601
16WCI 318023402
17WCI 5303316765
19WCI 318000507
20WCI 318011000
21WCI 318028321
21SCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT ILLUSTRATED
23WCI 3202088
24WCI 318090001
24WCI 5303316767
24WCI 5303299474
29WCI 316029000
31WCI 318016711
32KNOB-THERMOSTAT
42WCI 318027301
65WCI 5303316766
66WCI 3202093
68WCI 5303302397
78WCI 316037604
78WCI 316037700
78WCI 316037800
