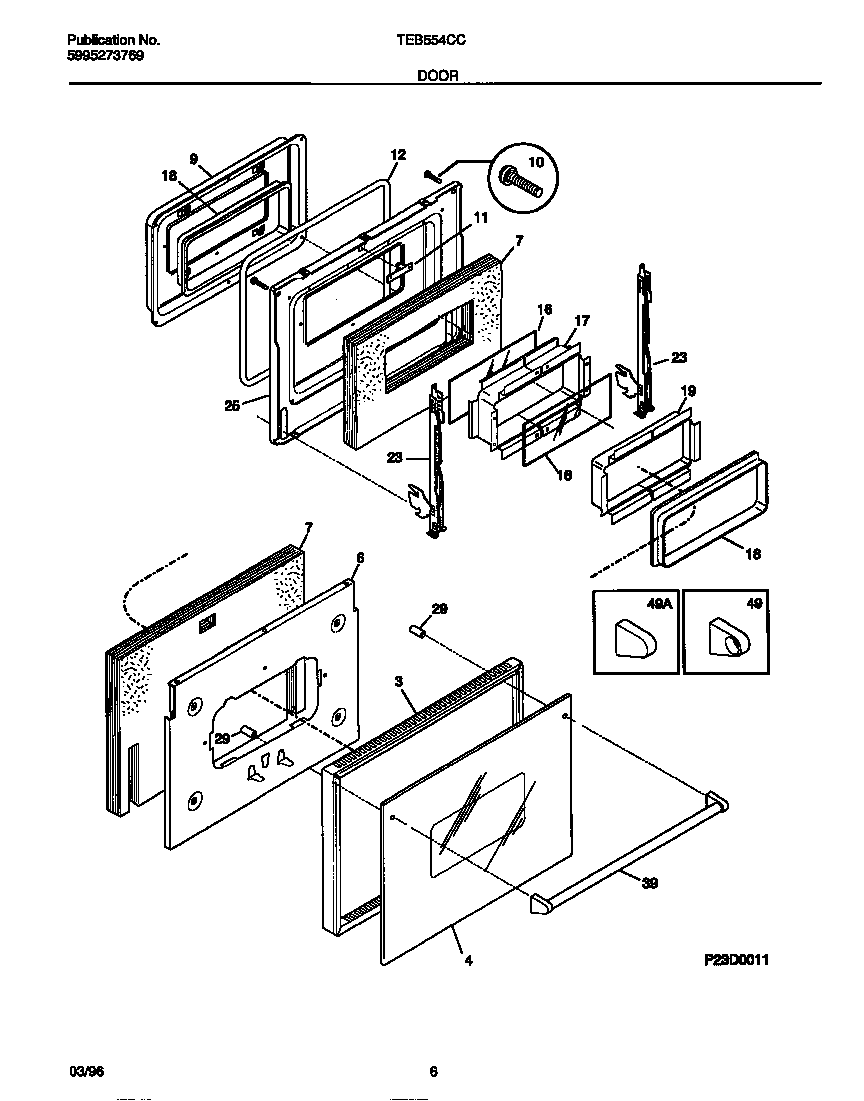

TEB554CCB1 04 – DOOR

TEB554CCB1 04 – DOOR

Written by

in

TEB554CCB1 04 – DOOR

Products

PositionProduct
*98689Plug,button
*98691Foam seal,(3)
*986935303308456 Frigidaire Oven Screw
*986925303307980 Frigidaire Oven Screw
*98690WCI 5303300414
3WCI 5303212560
4GLASS-OVEN DOOR, BLACK, OUTER
6WCI 5303210005
7WCI 5303308470
9WCI 5303301256
10WCI 5303316748
11WCI DK1323556
12WCI 3205189
16GLASS – BAFFLE (2)
17SPACER-GLASS
18WCI 3016263
19WCI 5303210006
23WCI 316009400
25WCI 5303301253
29SPACER-HANDLE MTG, (2)
39WCI 318040201
49WCI 5303307192
49WCI 5303307193
