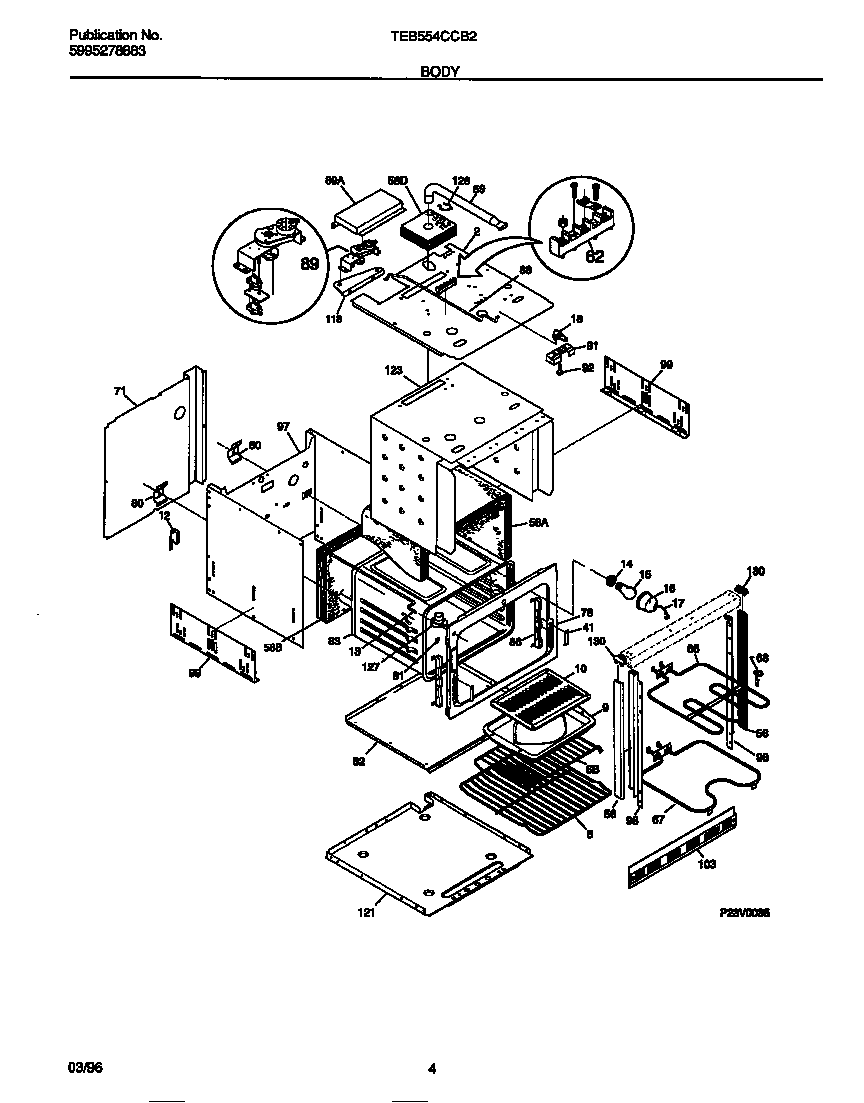

TEB554CCB2 03 – BODY

TEB554CCB2 03 – BODY

Written by

in

TEB554CCB2 03 – BODY

Products

PositionProduct
*005285304500008 Frigidaire Oven Screw
*00523WCI 3201881
*005265303211311 Frigidaire Refrigerator Screw
*00522WCI 3018802
*00525COVER-CAPILLARY
*0052708002868 Frigidaire 0 Screw Assembly
*005245303304015 Frigidaire Oven Washer
1SHIELD-WIRE
2WCI 5303301263
6WCI 5303305676
6WCI 5303299366
9WCI 5303317977
10WCI 5303317976
11WCI 5303308448
12SWITCH – OVEN LIGHT
12FASTENER, SWITCH
12WCI 5303308447
13WCI 3204114
13WCI 3202077
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
41WCI 3019063
56TRIM-BODYSIDE, BLACK, (2)
56WCI 5303318690
58INSULATION-WRAP
58WCI 5303311220
58WCI 5303271040
59WCI 3016301
62SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
76WCI 318056130
80WCI 5303301261
81WCI 3201632
82SHIELD, OVEN BOTTOM
83WCI 318089501
86WCI 3201631
88WCI 3016241
89LATCH, MOTOR
89WCI 3016296
91WCI 3019069
91HOUSING-DOOR LATCH
92AXLE – HINGE (2)
97WCI 318066603
98WCI 318029300
98WCI 318029301
99318284201 Frigidaire PANEL
103WCI 5303316735
118WCI 5303308461
121WCI 5303305036
123WCI 3202445
126Clip,insulator
127TUBE-OVEN VENT
130WCI 5303271106
130WCI 5303271107
130WCI 5303316992
