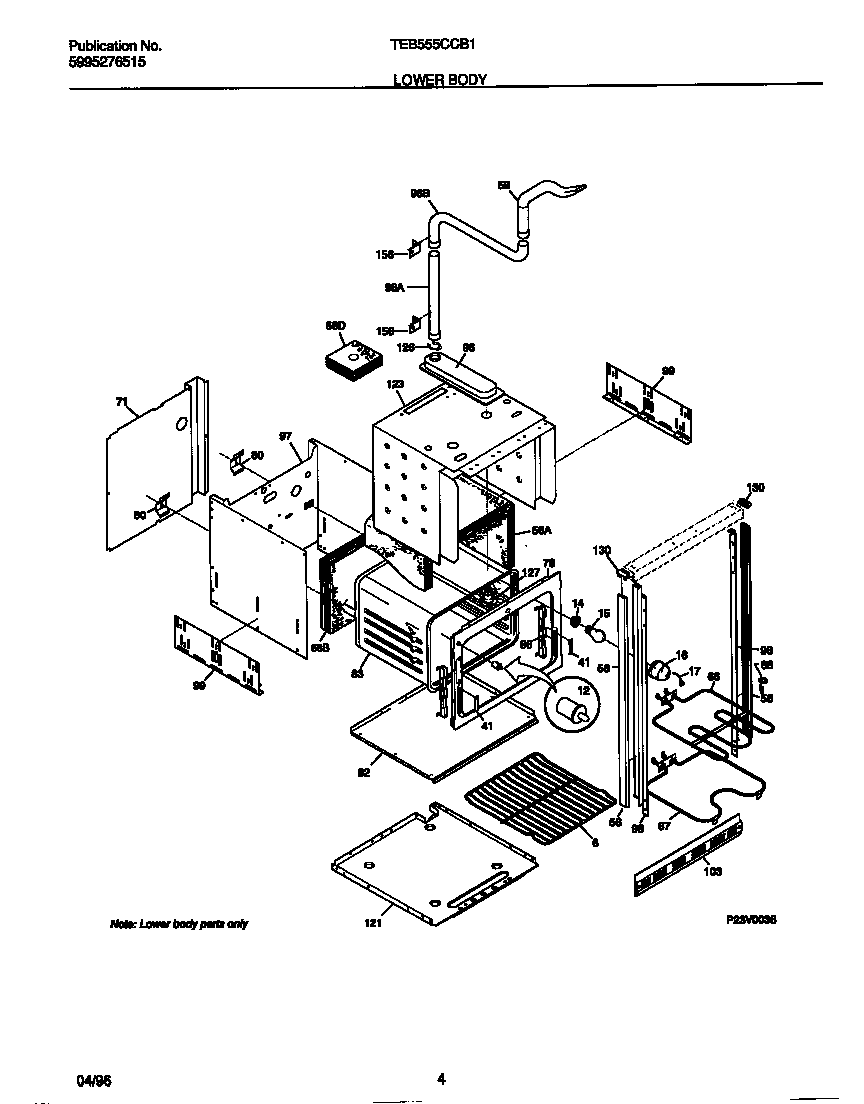

TEB555CCB1 03 – LOWER BODYadmin2025-04-26T10:21:13+00:00TEB555CCB1 03 – LOWER BODY
Products
| Position | Product |
|---|
| *13607 | COVER-CAPILLARY |
| *13603 | SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED) |
| *13605 | 5303211311 Frigidaire Refrigerator Screw |
| *13604 | 08002868 Frigidaire 0 Screw Assembly |
| *13602 | WCI 3201881 |
| *13606 | 5304500008 Frigidaire Oven Screw |
| 6 | WCI 5303299366 |
| 12 | WCI 5301314211 |
| 12 | WCI 5303308447 |
| 12 | FASTENER, SWITCH |
| 14 | SOCKET-LIGHT/LAMP, OVEN |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | 5304524341 Frigidaire Lens |
| 17 | WIRE, GLASS RETAINER |
| 27 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 28 | CLIP-WIRE |
| 41 | WCI 3019063 |
| 56 | TRIM-BODYSIDE, (2) |
| 58 | WCI 5303317714 |
| 58 | INSULATION-WRAP |
| 58 | INSULATION, OVEN WRAPPER |
| 59 | WCI 3016301 |
| 66 | 5303016247 Frigidaire Broil Element |
| 67 | 318255101 Frigidaire Oven Bake Element |
| 68 | WCI 5303307563 |
| 71 | WCI 5303317719 |
| 76 | FRONT-OVEN |
| 80 | WCI 5303301261 |
| 82 | SHIELD, OVEN BOTTOM |
| 83 | LINER-OVEN ASSY |
| 86 | WCI 3201631 |
| 96 | Duct,oven vent ,center |
| 96 | DUCT-VENT PIPE |
| 96 | WCI 3016324 |
| 97 | WCI 318066603 |
| 98 | WCI 318029311 |
| 98 | WCI 318029310 |
| 99 | 318284201 Frigidaire PANEL |
| 103 | WCI 5303316735 |
| 119 | SWITCH-THERMAL |
| 121 | WCI 5303305036 |
| 123 | WCI 3202445 |
| 126 | Clip,insulator |
| 127 | TUBE-OVEN VENT |
| 130 | WCI 5303316992 |
| 156 | WCI 5303317198 |
